Артикул: 1SCA105078R1001
· Производитель: ABB
· EAN: 6417019392080
1SCA105078R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
13 974.10 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
17 308.60 ₽
срок ≈1 мес. (38 дн.)

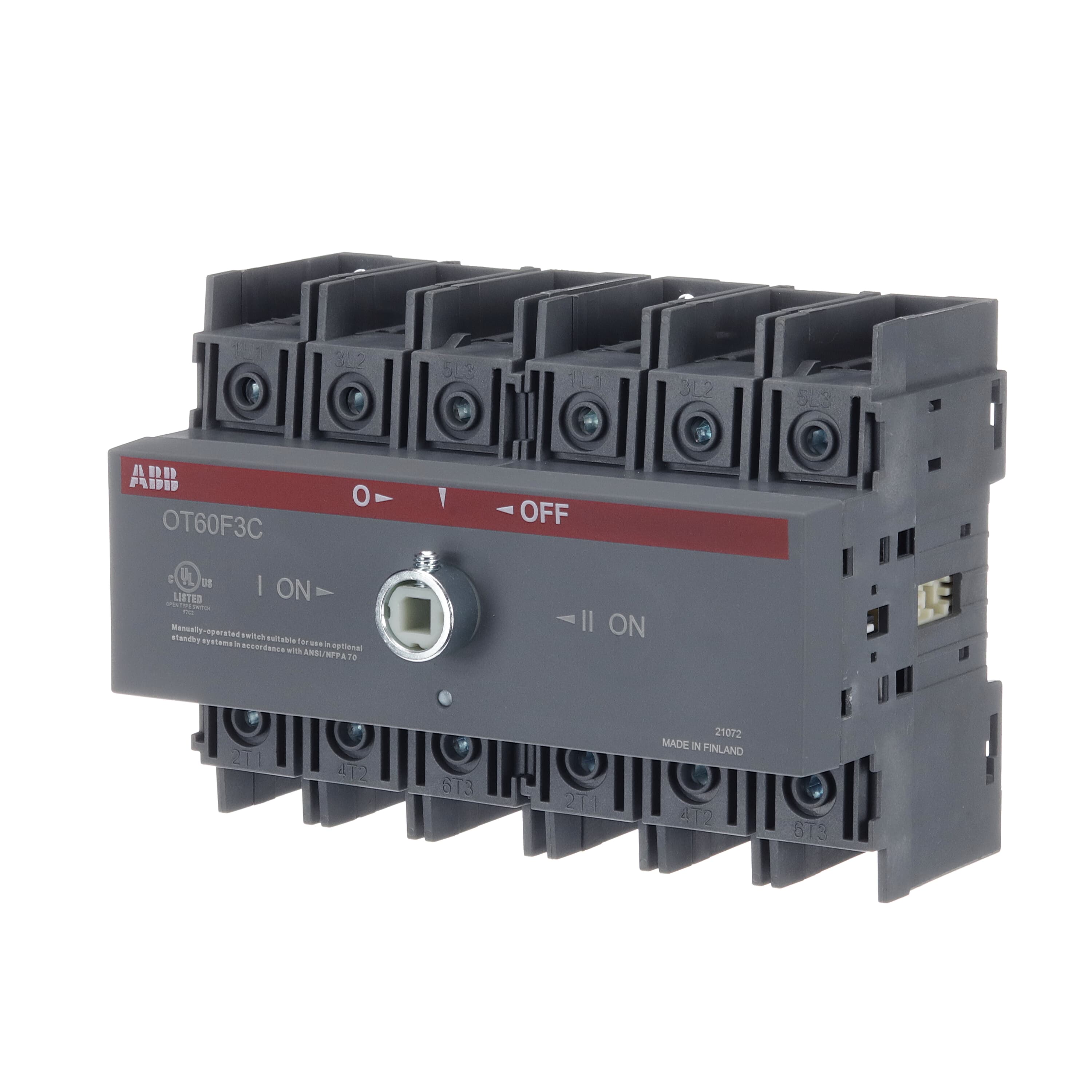

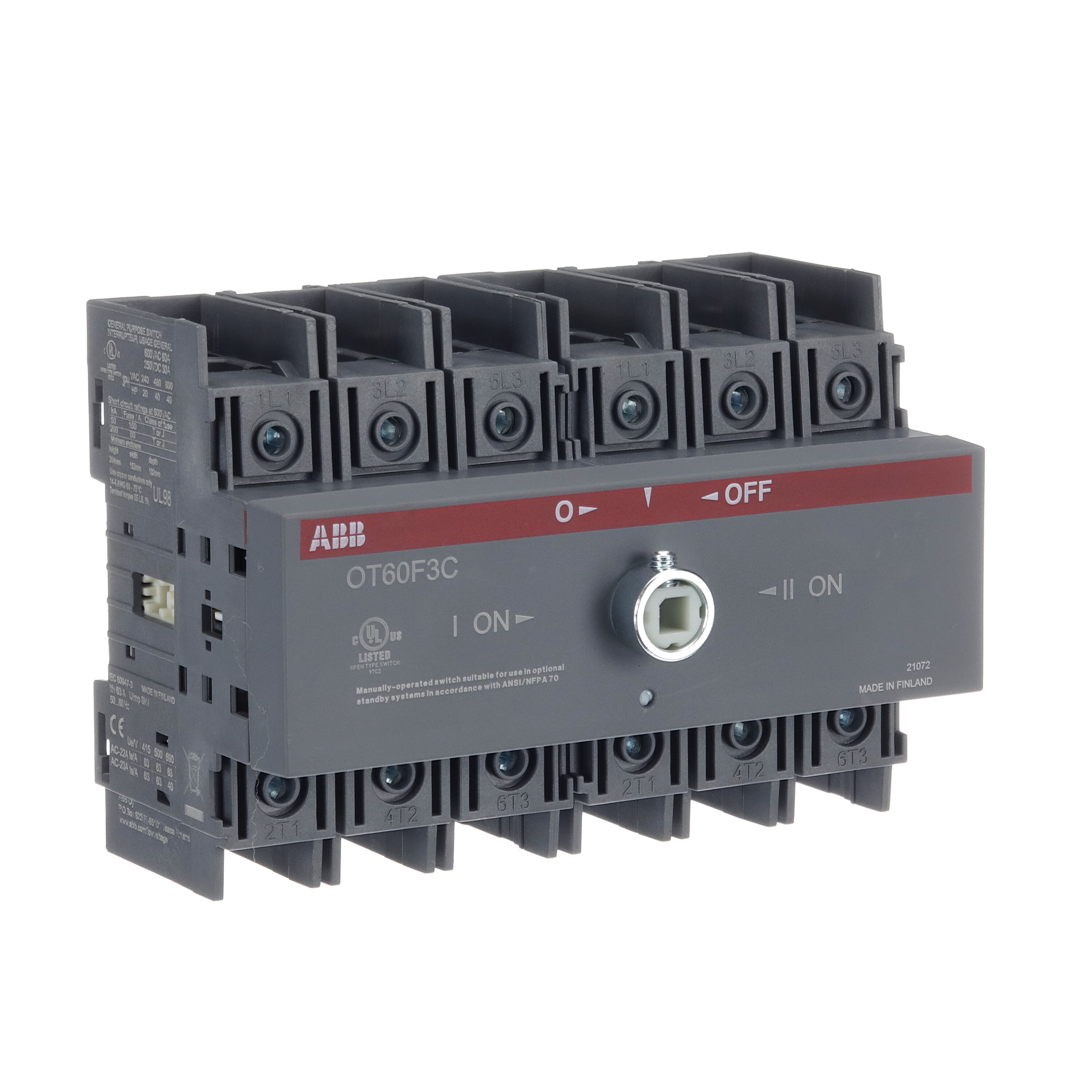

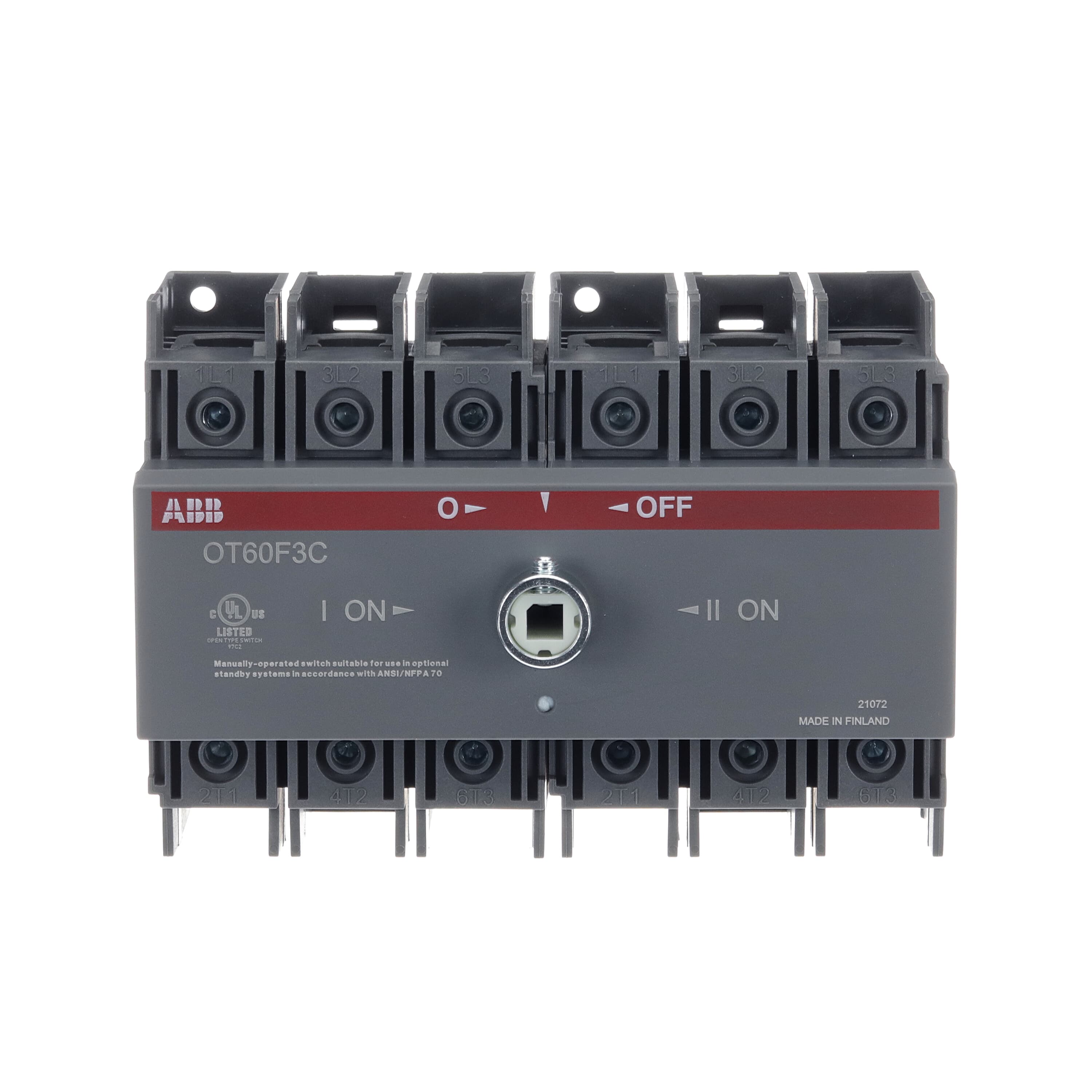

OT60F3C CHANGE-OVER SWITCH, Handle and shaft need to be ordered separately, Open transition
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 13 974.10 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 308.60 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 106.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 20 315.04 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 520.12 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 22 425.70 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 23 027.79 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 755.98 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25 420.29 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 30 940.94 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 140 mm, 5.51 in |
| Product Net Height | 100 mm, 3.94 in |
| Product Net Depth / Length | 86 mm, 3.39 in |
| Product Net Weight | 0.9 kg, 1.98 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 205 mm |
| Package Level 1 Height | 102 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 115 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 6000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 20 Hp, (acc. to UL 208 V) 20 Hp, (acc. to UL 240 V) 20 Hp, (acc. to UL 480 V) 40 Hp, (acc. to UL 600 V) 40 Hp |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT60F3C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Change-over Switches |
