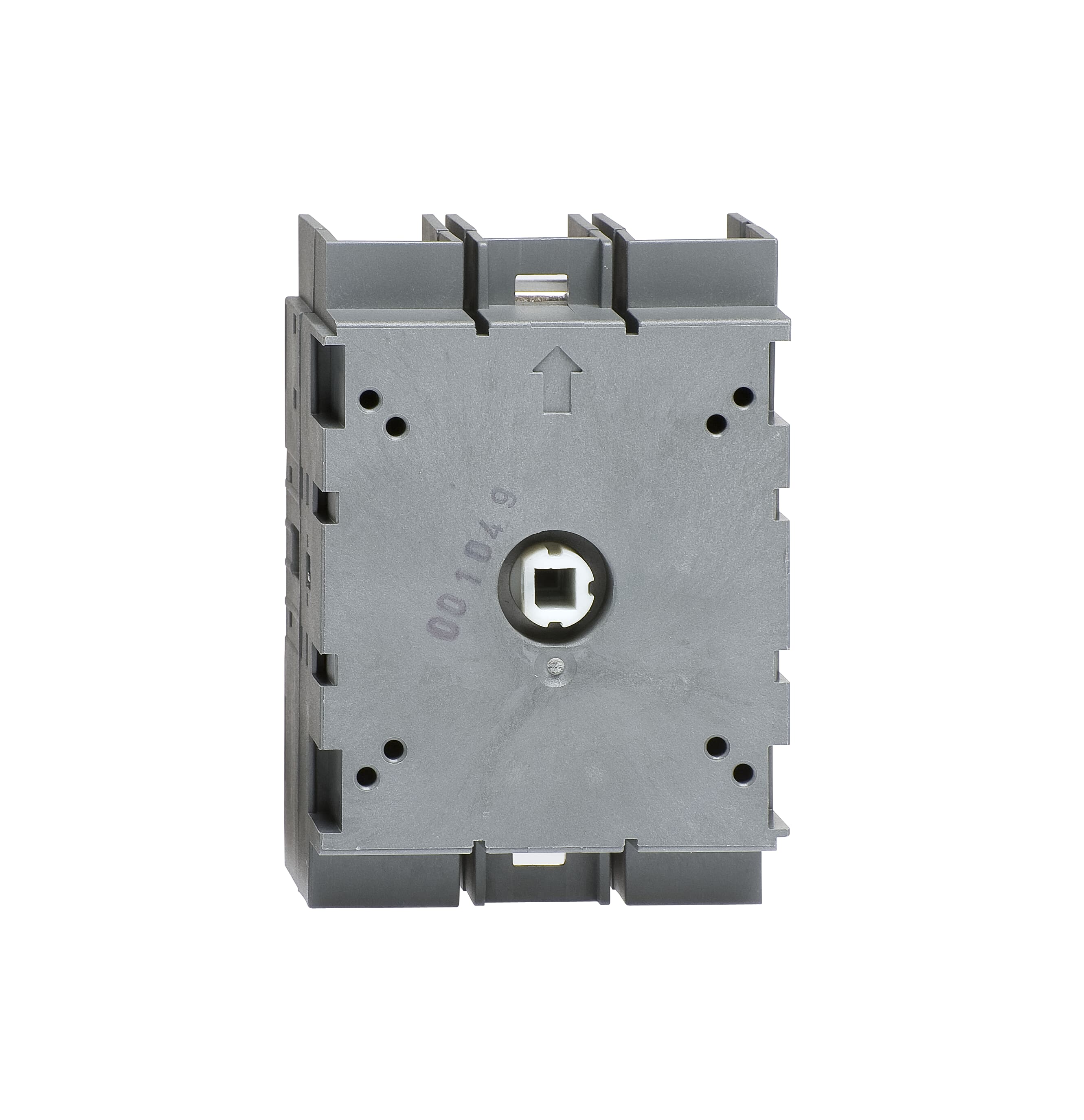

Артикул: 1SCA105074R1001
· Производитель: ABB
· EAN: 6417019392042
1SCA105074R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
7 678.67 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
8 251.60 ₽
срок ≈1 мес. (38 дн.)
3-pole, front operated, door mounted, switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 7 678.67 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 251.60 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 608.88 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 108.91 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 187.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 503.31 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 142.13 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 825.16 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 002.93 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 13 053.74 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 70 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 66.5 mm |
| Product Net Weight | 0.42 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 102 mm |
| Package Level 1 Depth / Length | 71 mm |
| Package Level 1 Height | 76 mm |
| Package Level 1 Gross Weight | 0.44 kg |
| Cable Cross-Section | Cu 2.5 ... 25 mm² |
| Color | Grey |
| Connecting Capacity Main Circuit | Flexible 1x Cu 2.5…25 mm², Stranded 1x Cu 2.5…25 mm² |
| Distance Between Phases | Standard |
| Mechanical Durability | 20000 |
| Mounting Type | Door mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 0.7 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA, (125 A fuse, 690 V) 10 kA, (63 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 18.5 kW, (500 V) 22 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp, (240 V AC) Single Phase 5 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 20 Hp, (550 ... 600 V AC) Three Phase 30 Hp |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171943 |
| extended_product_type | OT30FT3 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
