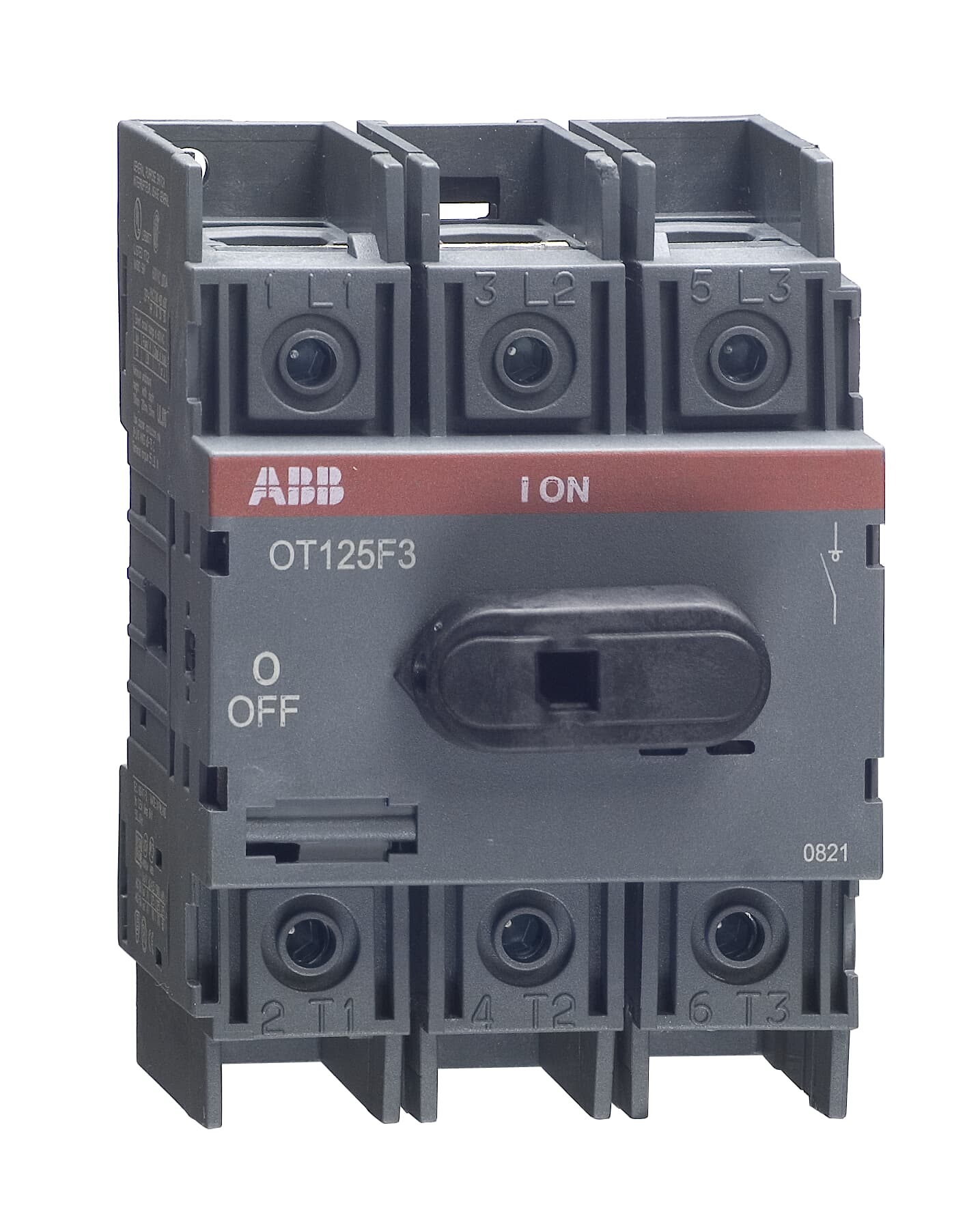

Артикул: 1SCA105033R1001
· Производитель: ABB
· EAN: 6417019391632
1SCA105033R1001
В наличии на нашем складе
Наличие в РФ
6 944.00 ₽
в наличии на складе · 2 шт.
Склад в Китае
4 685.51 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
6 133.63 ₽
срок ≈1 мес. (38 дн.)
3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 4 685.51 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 133.63 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 770.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 811.67 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Наш склад | 6 944.00 ₽ | В наличии | 2 шт. | — | Заказать |
| Склад в Китае | 6 955.26 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 519.38 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 965.36 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 373.85 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в России | 8 657.56 ₽ | 5 дн. | 120 шт. | — | Заказать |
| Склад в Европе | 9 111.88 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 534.23 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 121.40 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 10 711.10 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 823.95 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 70 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.36 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 81 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 86 mm |
| Package Level 1 Gross Weight | 0.39 kg |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Color | Grey |
| Connecting Capacity Main Circuit | Flexible 1x Cu 10…70 mm², Stranded 1x Cu 10…70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Distance Between Phases | Standard |
| Handle Type | Knob |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA, (125 A fuse, 690 V) 10 kA, (63 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A, (500 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A, (500 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A, (500 V) 70 A, (690 V) 50 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW, (400 ... 415 V) 45 kW, (500 V) 45 kW, (690 V) 45 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 18-21 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 25 Hp, (acc. to UL 480 V) 50 Hp, (acc. to UL 240 V) 30 Hp, (acc. to UL 208 V) 25 Hp, (acc. to UL 600 V) 50 Hp |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601409 |
| E-Number (Norway) | 4363532 |
