Артикул: 1SCA022834R0450
· Производитель: ABB
· EAN: 6417019289410
1SCA022834R0450
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
17 446.28 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
21 609.63 ₽
срок ≈1 мес. (38 дн.)

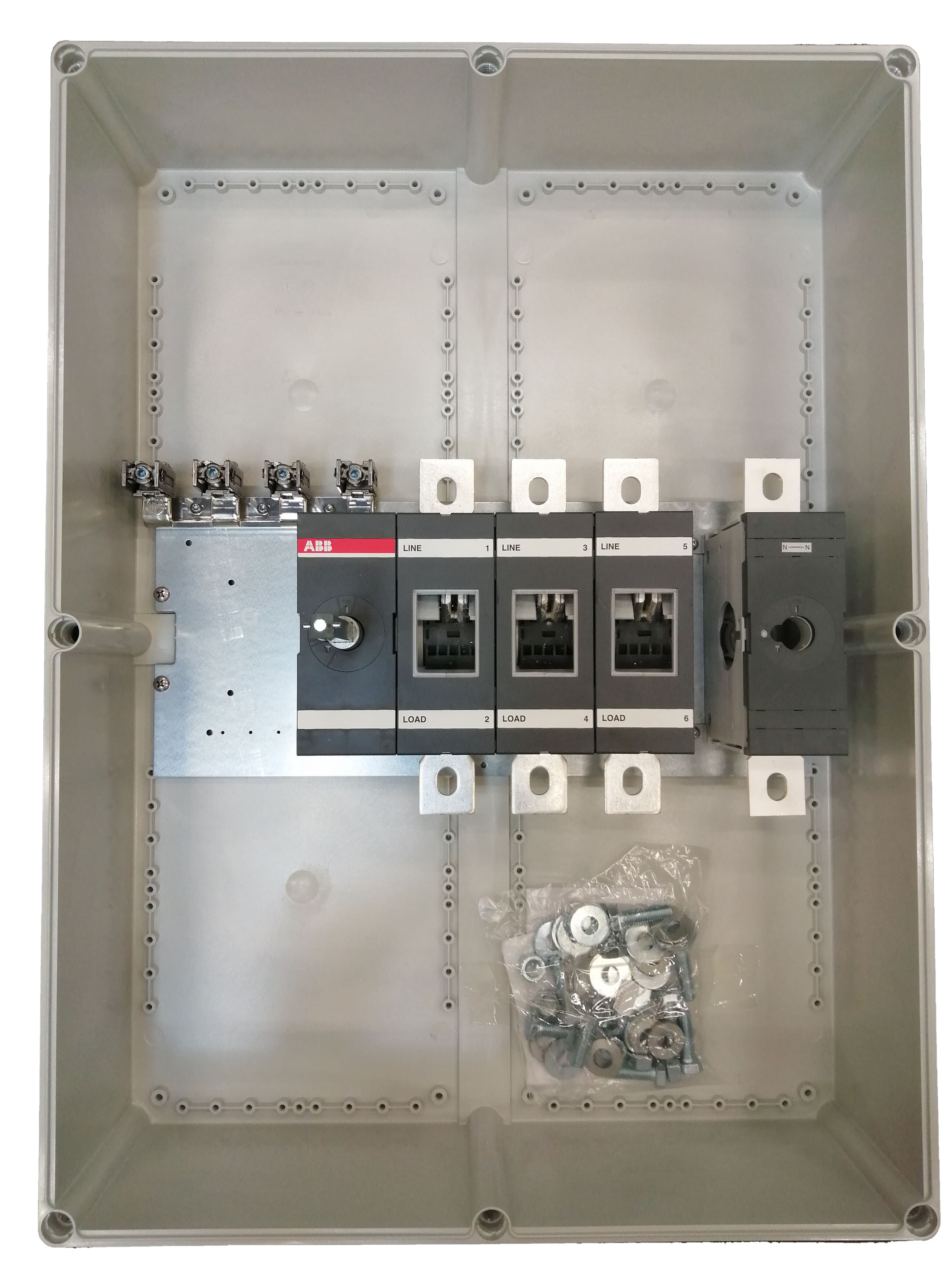

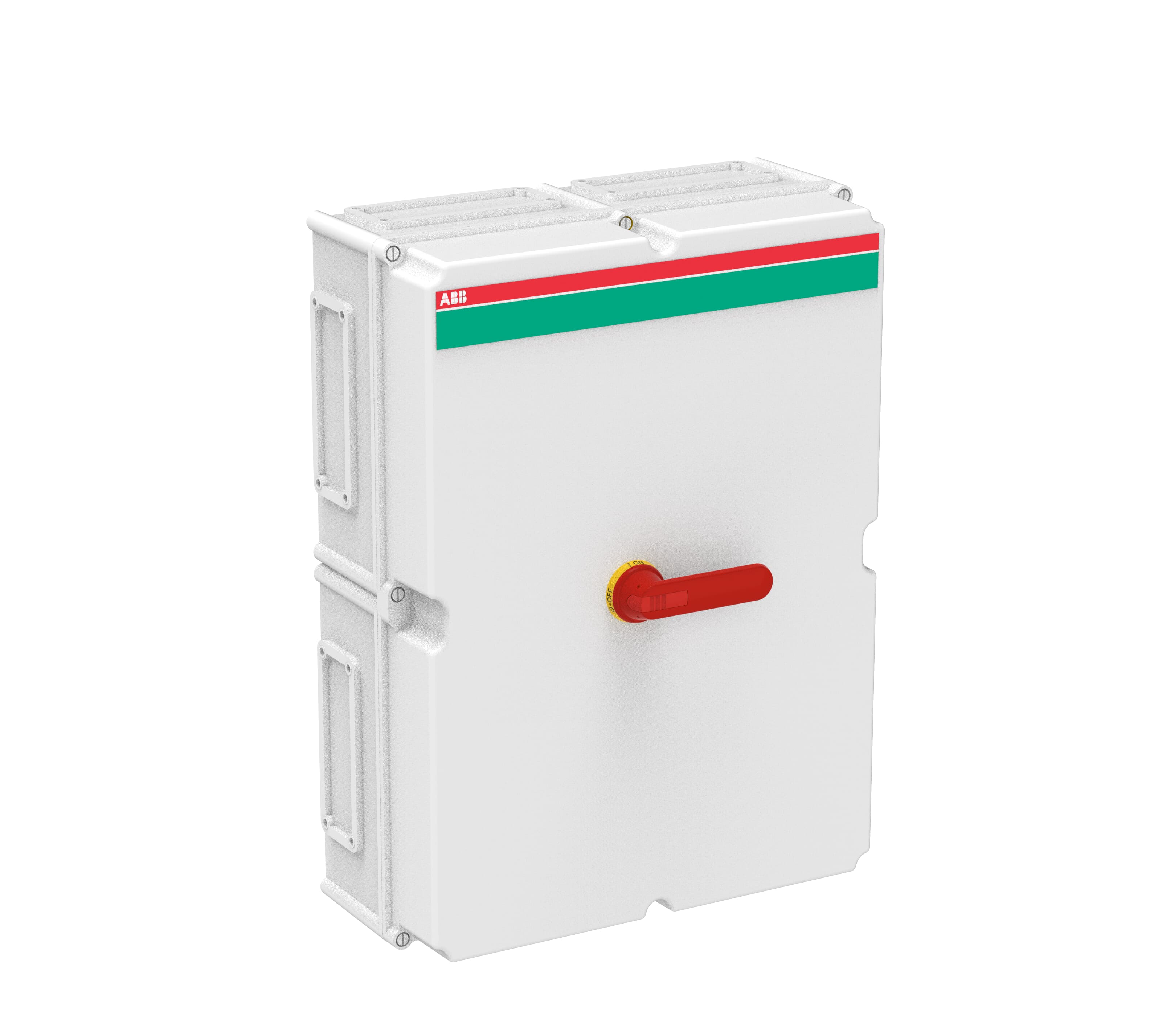

Encl. Switch Disconnector, 3-p. 415V AC23 720A, 400kW. Plastic enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 17 446.28 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 609.63 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 854.79 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 361.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 867.27 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 996.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 29 658.68 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 38 630.47 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 227 169.67 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 229 611.79 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 253 467.57 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 349 841.29 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 386 188.44 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 560 mm |
| Product Net Height | 760 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 27.83 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 575 mm |
| Package Level 1 Depth / Length | 780 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Gross Weight | 30 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xII-flange / 2xII-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 40 W, Total 120 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Impulse Withstand Voltage (Uimp) | 20 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 720 A, (500 V) 720 A, (690 V) 720 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A, (690 V) 720 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A, (500 V) 720 A, (690 V) 720 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW, (500 V) 500 kW, (690 V) 710 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA, for 0.2 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT800KFCC3BA |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
