Артикул: 1SCA022834R0020
· Производитель: ABB
· EAN: 6417019289373
1SCA022834R0020
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
96 881.87 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
119 077.03 ₽
срок ≈4 мес. (122 дн.)

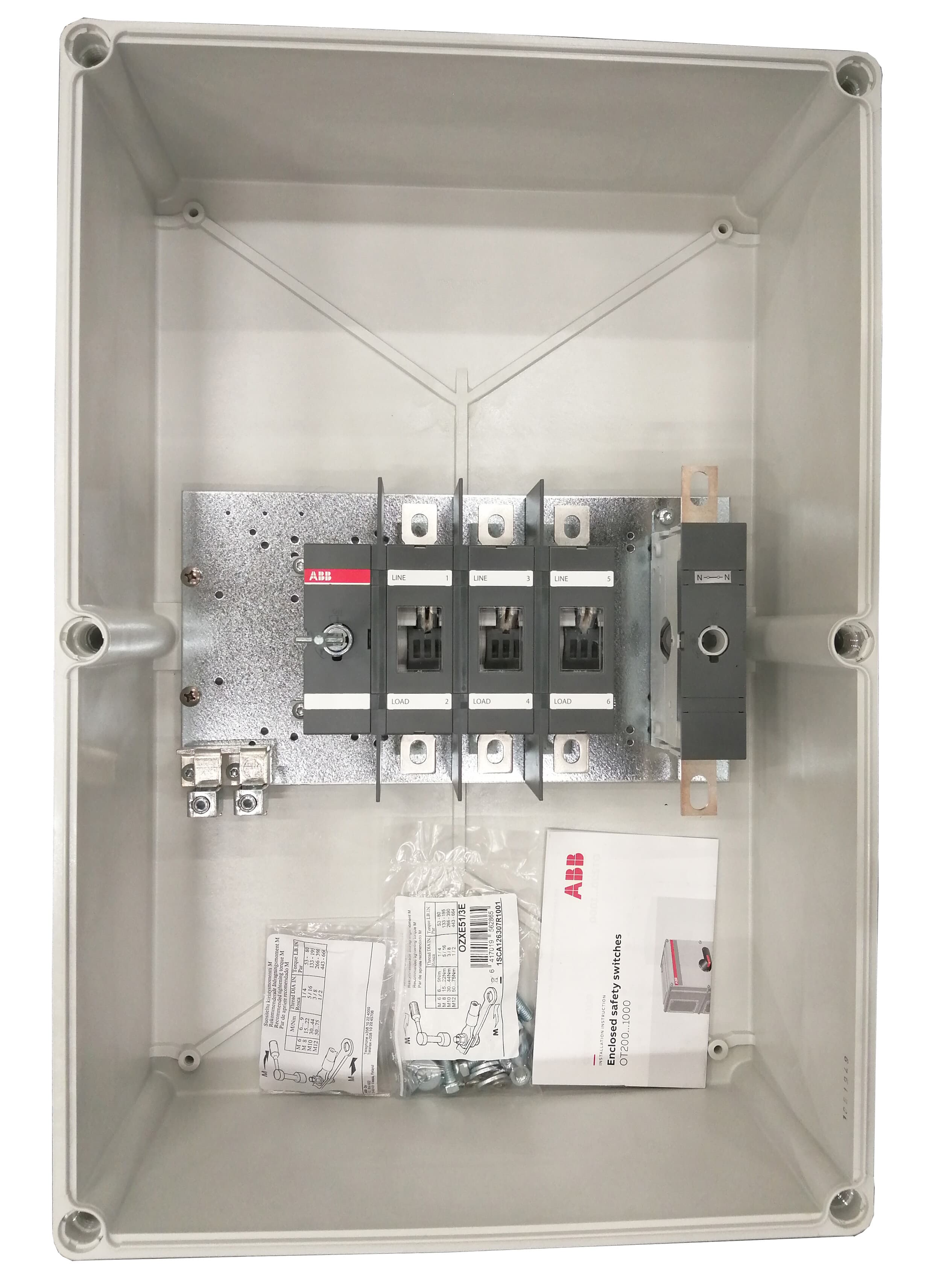

Encl. Switch Disconnector, 3-p. 415V AC23 250A, 110kW. Plastic enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 96 881.87 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 119 077.03 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 123 692.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 131 448.67 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 135 892.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 136 543.76 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 149 198.09 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 150 011.59 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 164 699.19 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 192 340.07 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | af83807d-234d-4ac3-aade-cb6df8799237 Finland |
| Simplified SCIP | 2d416aee-79a9-488a-af9b-70c93855aae0 Germany, a377ad3c-a5f1-458f-8774-ca11ac0d7227 Denmark, 9feeadcd-1a08-48fa-862a-ce46b25de27a Germany, 70858623-8747-4d10-843d-ba643ea6d81c Poland, 7c634259-567f-4b45-8f69-1a53ad928309 Sweden, d3a80a83-2700-42d1-8272-34ef6c08f5f4 Bulgaria, a36f1e90-c365-4082-bc47-aeb11b805869 France, 5d093229-ccf5-47e3-b480-5e439ae3acb9 Germany, a9277e77-c7ad-470b-8577-4b96eaf1bbe4 France, 02435de3-2291-4cd0-931d-d8a867843559 Germany, 94e1ccca-9fd0-43aa-9f77-324e5d2e0f44 Sweden, 70c41f1d-2822-46db-9854-94cefe92c797 Norway, 92938f75-46d4-4a23-8765-440d1c5b75b0 Belgium, cc2320aa-6bea-4ad7-b8bc-485b8d8e3144 Italy, fd5e6fa1-6406-4996-8f69-f9af7a0ccf64 Portugal, 6ebf868e-8b8c-4ddc-a08b-0a0873b2cf0e Greece, e61c4541-090b-4757-b5b7-e93d86a18f60 Spain, 4b9b9377-74f6-4e95-849b-2480f901048b Hungary, ca2be52c-4c1e-40eb-9984-12489f86db07 Poland, 345a36e5-b443-4a93-9c83-9fee9fb308c3 Estonia, b780ec35-64df-46c8-8323-b66426dfd9c2 Belgium, 495a283e-a8ff-4614-b9a3-c7a1802315f0 Netherlands, d34bc011-d25d-4f70-a22b-c3bebf099470 Hungary, 35f1cb79-5872-4803-acb5-444bc67ddbe2 Poland, 789ce21c-6339-4fe6-8c9d-1dd50c62e751 Croatia, 3878f97f-ccd6-4989-a450-32253ca23f21 Czechia, a0aee558-427a-47ba-8b6a-31033df1b86f Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.766 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 2pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W, Total 19.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW, (500 V) 160 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT250KFCC3BA |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
