Артикул: 1SCA022830R4490
· Производитель: ABB
· EAN: 6417019287300
1SCA022830R4490
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
165 997.41 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
218 762.70 ₽
срок ≈1 мес. (38 дн.)

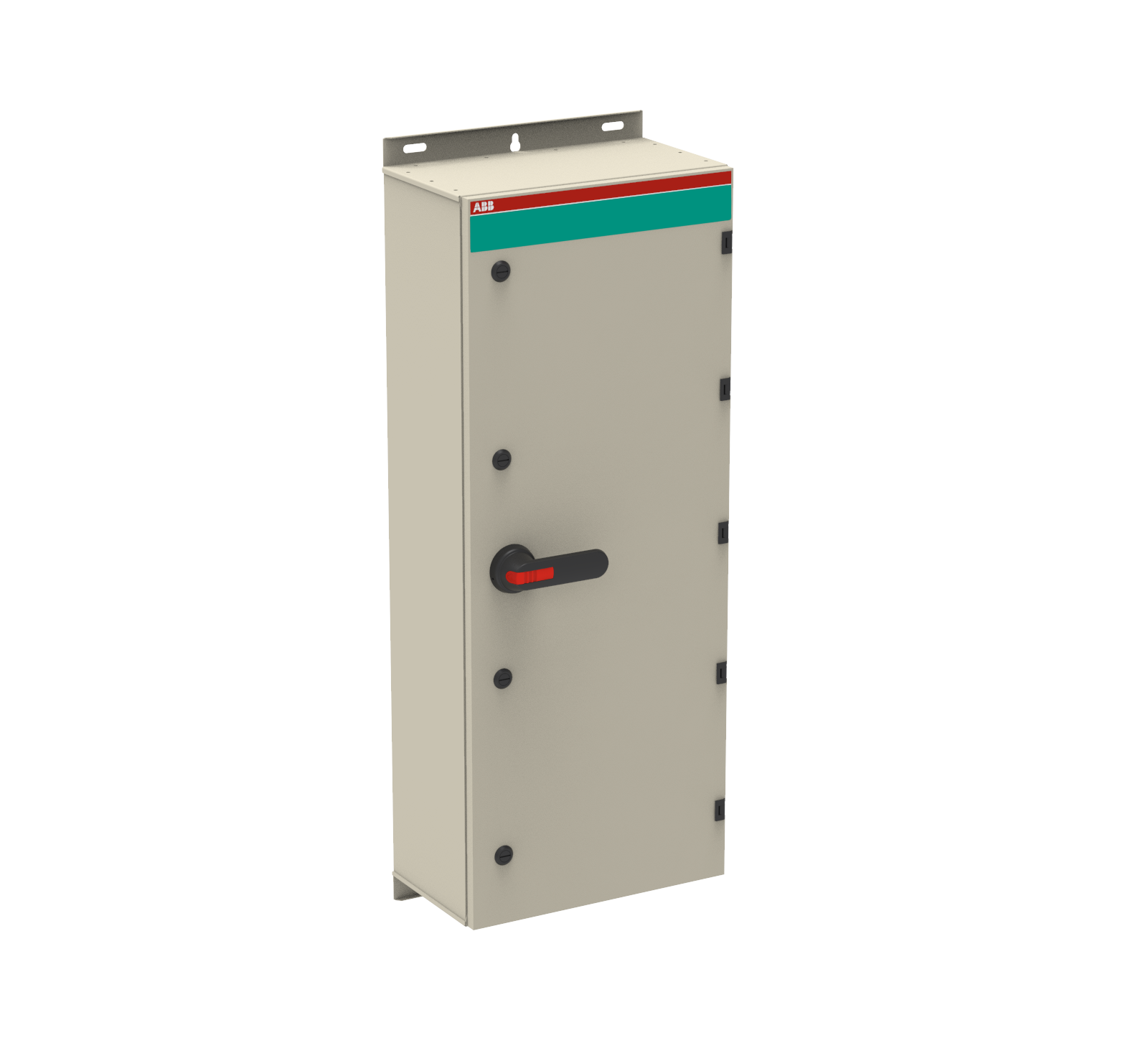

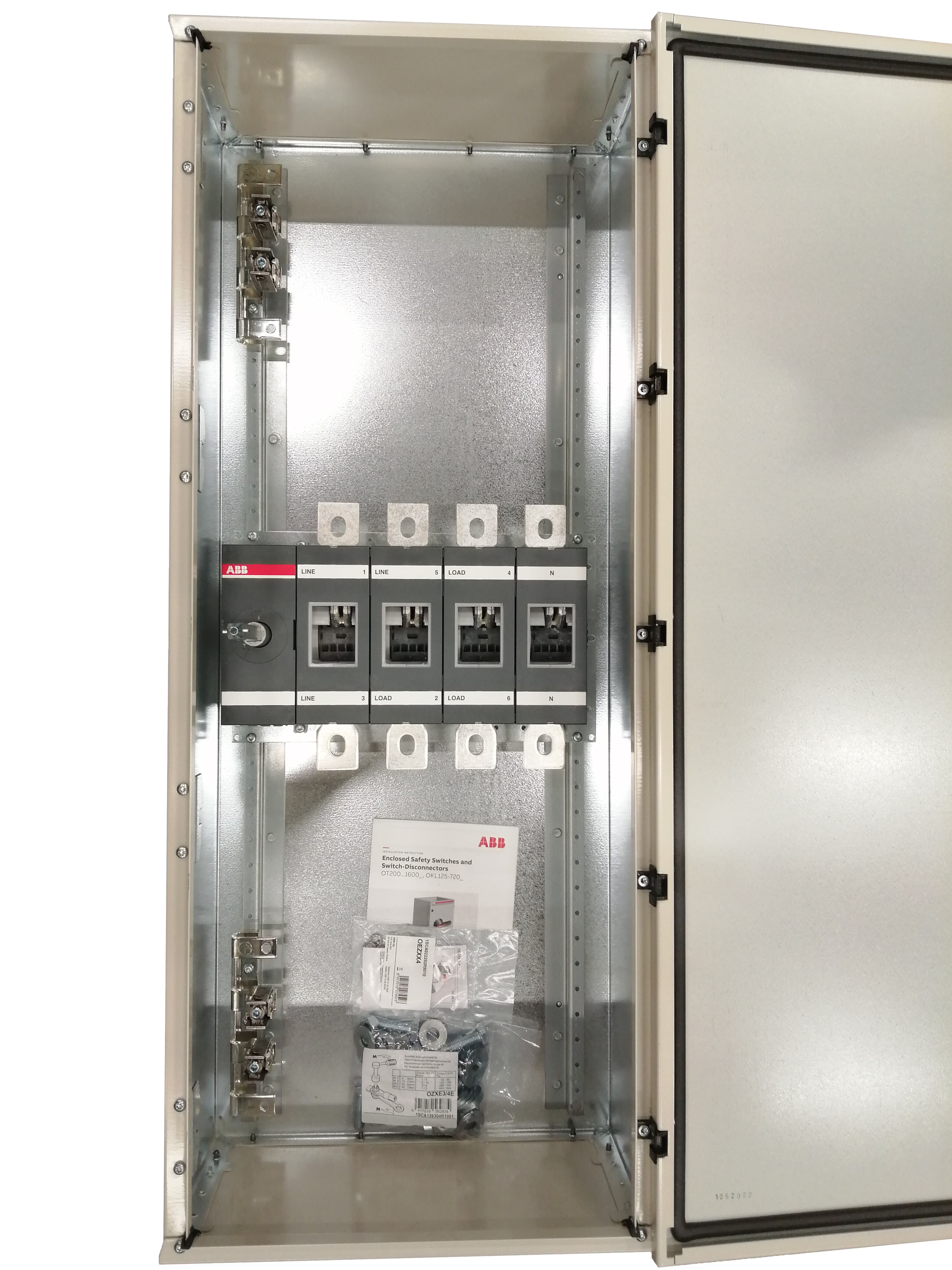

Encl. Switch Disconnector, 4-p. 415V AC23 570A, 315kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 165 997.41 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 218 762.70 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 228 092.20 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 241 491.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 251 790.09 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 251 873.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 255 636.00 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 278 042.64 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 282 195.59 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 356 495.10 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 87864738-fc8c-4421-a8ba-bc7bd9bc1a73 Finland |
| Simplified SCIP | b5477e47-47ff-4744-b718-80839a4bfc66 Germany, 4d1fc9d2-ae3b-498b-8d3d-267bdeae5abc Norway, adc49792-9b48-437c-b681-584293203fca Poland, 880e6f33-3053-4d82-b192-d767bfb1dbb1 Germany, 03d4ee20-add0-42e2-bb14-1525113dd4b8 Germany, eda1e81a-da7b-462e-98d7-7fff9a9772e1 Hungary, 8e87ed55-a52a-4b2d-a8a4-45de9633b349 Belgium, 12619ae0-d835-4ccf-a83d-ff1627d973db Italy, ffcaa3ae-4799-4572-af55-c02684d449de Czechia, 63d60795-e66f-46cb-9ae4-adbf9385f131 Portugal, 6ff7a433-ed01-4ebd-b3c1-3e44b50f584f Denmark, 509177be-c15f-4d1c-85ec-8cdea5a4141d Croatia, 81b044aa-2489-414b-b143-e0533ba51ae8 Poland, ba68fba2-75f8-4600-b1c2-a2ee9f6e1e5c Netherlands, 2d7b912b-f4c8-4a7e-b570-883cf6230c03 Hungary, 930e2d38-a401-4768-85ef-3dd3786762aa Estonia, 7fa84be9-a6e1-4b80-b9d7-a7ded3c1ac31 Greece, 3f79071b-7461-4117-80e8-9712ccdc9f4d Bulgaria, 3126a457-fc44-4424-8ecf-9cec58a9eda5 Sweden, fef375dd-7749-40c8-8b49-452c5ca74699 Poland, f8c85b86-b249-48ac-b76b-d39a3c895beb France, 5cb35fe9-e11b-49ca-92b4-910803537930 Sweden, bd9bf050-c9e8-466a-9041-e66aa303b3a6 Germany, 06431a18-60d5-40d7-a4d8-c751c1e2c90d France, 7bee9634-8d13-4c8b-88ee-119da753616a Spain, 179d1ae8-b189-4ab8-b99d-ecffed19ba3f Belgium, c763acc2-932b-4efe-8e23-53e910e4ae4b Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 28.85 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 31.3 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 25 W, Total 75 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 570 A, (500 V) 570 A, (690 V) 570 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A, (690 V) 570 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A, (500 V) 570 A, (690 V) 570 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW, (500 V) 400 kW, (690 V) 560 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA, for 0.2 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT630KLUU4BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
