Артикул: 1SCA022812R7690
· Производитель: ABB
· EAN: 6417019274928
1SCA022812R7690
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
37 697.48 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
38 307.74 ₽
срок ≈1 мес. (38 дн.)

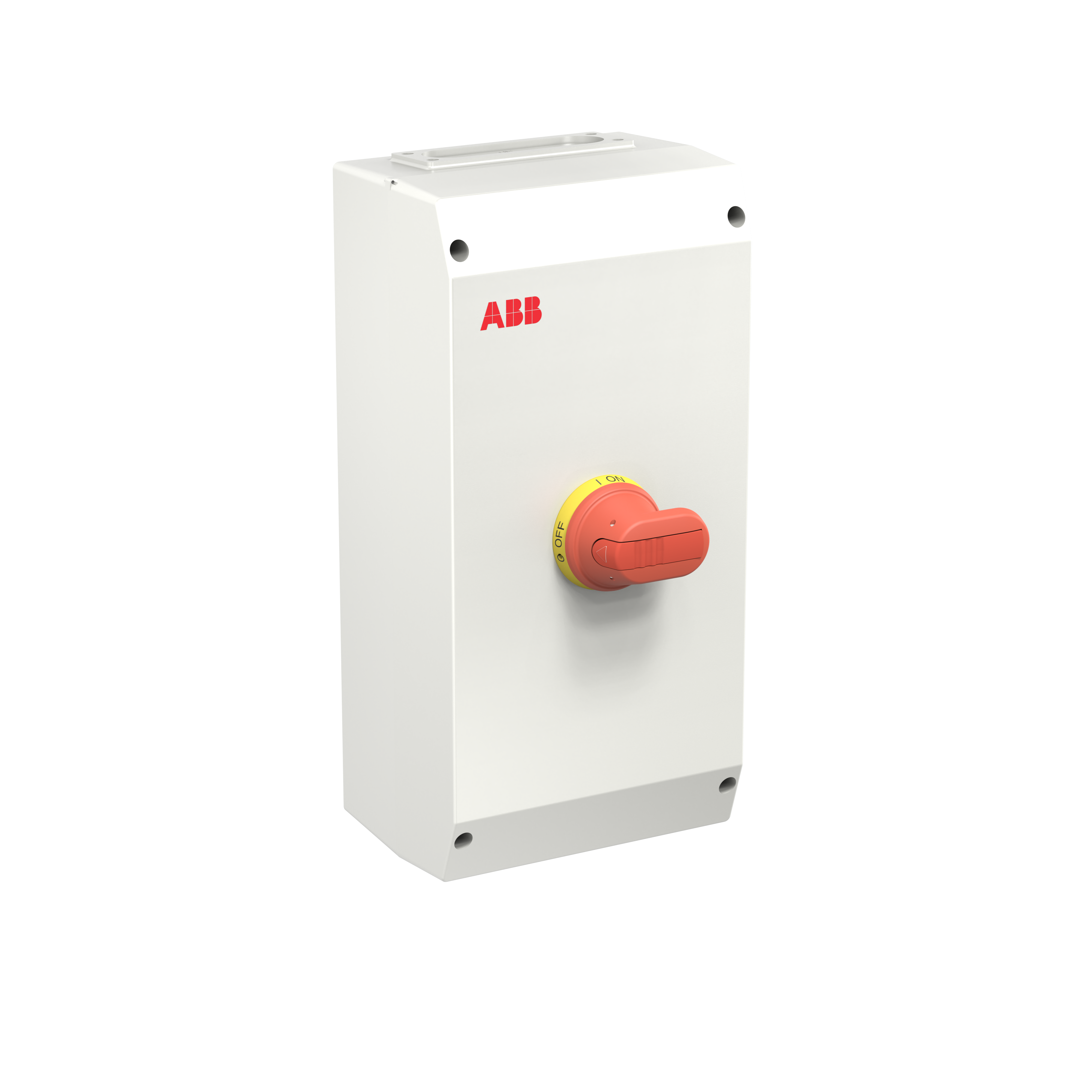

Encl. Switch Disconnector, 6-p. 415V AC23 90A, 45kW. Plastic enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 37 697.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 38 307.74 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 42 287.77 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 696.20 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 711.72 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 132.17 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 149.30 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 58 054.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 63 286.04 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 64 085.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b4185607-8eba-465b-bbbd-1eaf372595e9 Finland |
| Simplified SCIP | f0a541e8-91bb-4096-b437-45681bd91834 Germany, 9c617643-b2e5-4a3a-9462-a5dbf02b5255 Germany, 147e8f27-5a97-438c-89ea-1b69269d4ddb Portugal, 308fb714-6cb2-42bc-b7e8-f6d0b02d272f Bulgaria, a2491aa6-81fc-40f2-9870-4c9c2005b909 Germany, e22e8e95-20e5-451d-a8b4-fd55f248260f Germany, 37a03ece-18a6-4308-8a22-28ad996bf6e0 France, 5488e95f-74e3-4934-b61d-87a239f61445 Hungary, 33b5aca5-3fe7-45a2-8e3f-ee9514cb1787 Belgium, 06fd5d65-3f24-459d-a02c-d0d507355ede Denmark, 19690d18-8cdb-4e72-921e-28ab24705b82 France, ea5049bb-a63a-4975-83ea-3b12eae5e525 Poland, f8e7b741-0c33-4d31-b698-c7c57b283a45 Sweden, 1f695634-ef88-4437-bf00-f0ccd1f4bb25 Sweden, 7c4f4b89-87f4-4349-a8fd-2cd73ddea771 Italy, d1eac47f-b9d7-48ed-a2a9-2a4d9f6be284 Netherlands, 0526d35a-78b1-4ab9-9bf6-d938af9c4143 Poland, 67c964a1-6f99-429e-a6a3-a28982a67a3b Estonia, 02c94d5d-4002-4d36-8c5a-d651b4f90f32 Hungary, 1f8f7b7b-dc76-4814-b943-034de22cd72a Poland, c7ced8aa-1736-4656-a20f-80d2bffcadbb Spain, 2b49039c-0882-4ab8-9d9c-3ac9d7d18314 Belgium, 7148ff1d-de87-473a-98de-95923ca7b244 Norway, e94b44f0-85d4-47f4-86ba-c33471c5d1b0 Greece, ce57d5e3-51a1-4b9b-950e-4d0940189afb Croatia, 2fd57fdc-a1b9-4627-ac97-2429f0d490f4 Germany, 33af60cb-a7c2-4670-93a8-1e1ae02d67d6 Czechia |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | No new type |
| Country of Origin | Finland |
| Product Net Width | 200 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 3 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 213 mm |
| Package Level 1 Depth / Length | 417 mm |
| Package Level 1 Height | 197 mm |
| Package Level 1 Gross Weight | 3.2 kg |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM50+M16 / 2xM50+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm², Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W, Total 37.8 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 125 A, (500 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A, (500 V) 70 A, (690 V) 50 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 45 kW, (500 V) 45 kW, (690 V) 45 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA, for 0.2 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OTP125BA6M |
