Артикул: 1SCA022804R1030
· Производитель: ABB
· EAN: 6417019268453
1SCA022804R1030
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
264 253.11 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
239 382.23 ₽
срок ≈1 мес. (38 дн.)

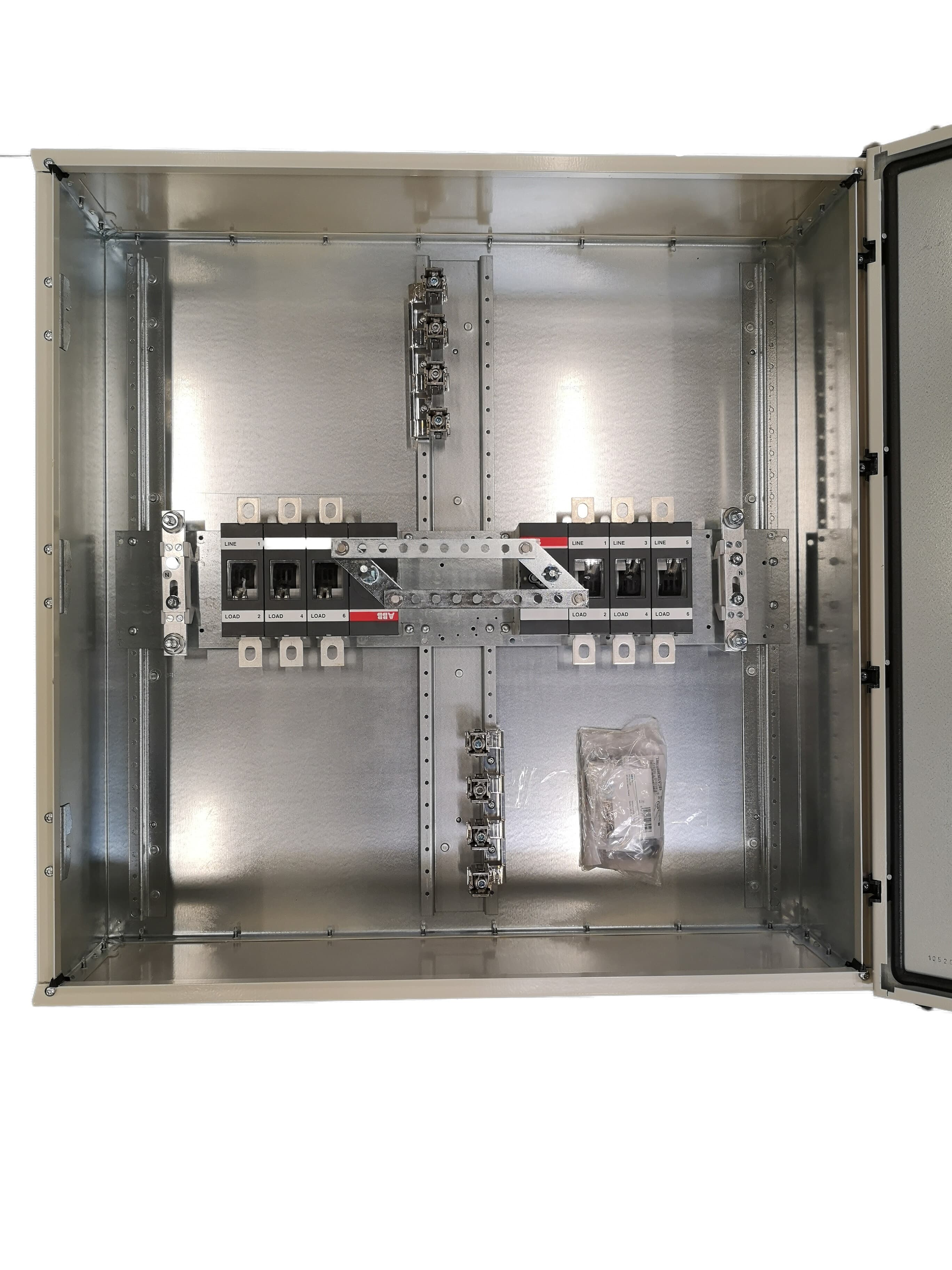

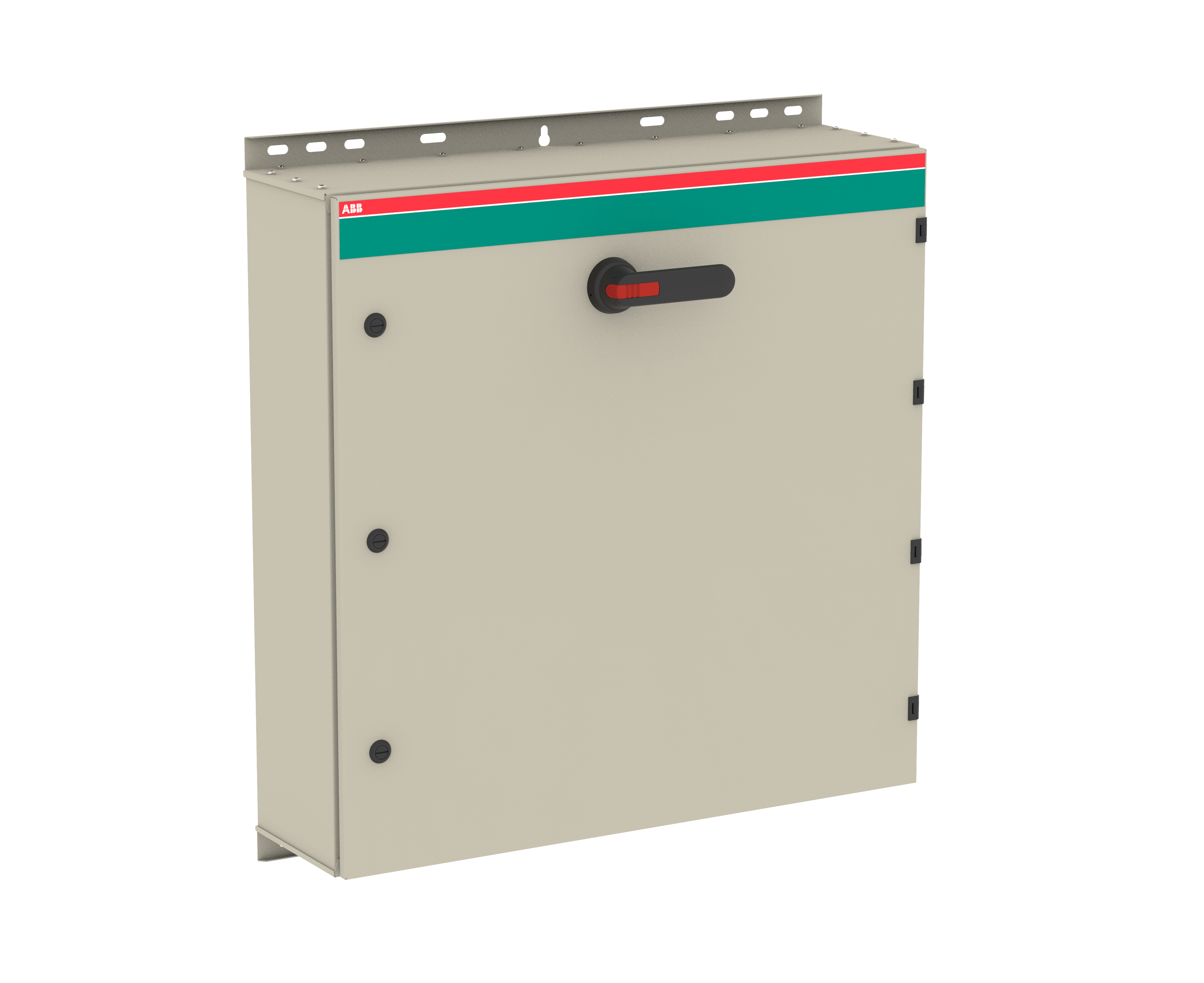

Encl. Switch Disconnector, 6-p. 415V AC23 400A, 230kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 239 382.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 239 815.59 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 239 904.53 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 264 253.11 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 264 731.49 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 264 829.67 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 273 292.49 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 355 345.11 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 420 870.43 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 464 597.23 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | de84cc8d-f69e-40d0-a419-5b24d9cfb869 Finland |
| Simplified SCIP | c732b199-5860-4bb8-aba0-72b545e4a648 Netherlands, c78f7bbe-9efe-497d-84a7-11ca57df5fe6 Germany, 12a47cdc-795c-4304-8f26-02211a16cd0e Poland, 4f8b0a1a-cb5e-4ffd-8df7-327aeaa16cd6 Hungary, 277ef12a-d74c-4839-bd39-6d82566c1a9e Sweden, 705bf44a-9128-4c04-9f14-12dfcc121c8c Belgium, 3c3f1b0a-2768-4c5b-9ab3-2bf475b76ae9 Spain, 9e614c14-451b-4195-9460-fdd516e422bb Germany, 7df85b2e-799e-45ea-b740-04102c9f449e France, 5ba15251-126c-43e8-aabe-ce2c245ea69b Estonia, 1605d0b2-28b5-4b67-80a9-b7afab2144a1 Portugal, 876ff38e-f47d-4c14-9870-cc81ecc5c241 Greece, aabeed8d-d8d7-41f6-a2a6-d02d5c1ab323 Hungary, 606bc554-c9e1-4ff4-a7cd-dbffa2a357cd Bulgaria, e52f8e06-1310-4400-b3a2-649c3b065ff5 Sweden, 1cb812aa-f2fc-47cb-9378-0f317183892f France, 7483010c-6e0e-471a-9c8a-e1c9576854a6 Poland, 324d13e3-c5cc-4c88-8916-75b21d1870f6 Norway, 35fea5dc-f5fe-4973-b323-3f4cdb65e175 Belgium, b27816ca-7430-4bc2-bed1-382b7cc58b1e Poland, e3f5b567-dc11-43af-8786-90f8675d6171 Germany, 0b272249-333b-4e67-8b09-e98bd745f7b8 Germany, be7d3ca9-fb1d-4369-9961-a29172250ed8 Denmark, 6ae12a59-5c7f-4934-9aee-1b7832ff9fe1 Germany, dd9ddc80-4a01-42cd-802a-79e4f83478b8 Croatia, 5eb83ef5-5c8c-4985-9e90-7f2427bdf089 Czechia, 597068c9-fbaa-4d3a-9973-2e4f70bc25c9 Italy |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 800 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 39.14 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 43 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm, Screw Clamp / PE Terminal 8pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Power Loss | at Rated Operating Conditions per Pole 10 W, Total 60 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Impulse Withstand Voltage (Uimp) | 15 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA, for 0.2 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT400DLUU6BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
