Артикул: 1SCA022802R4610
· Производитель: ABB
· EAN: 6417019267098
1SCA022802R4610
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
135 753.50 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
181 556.33 ₽
срок ≈1 мес. (38 дн.)

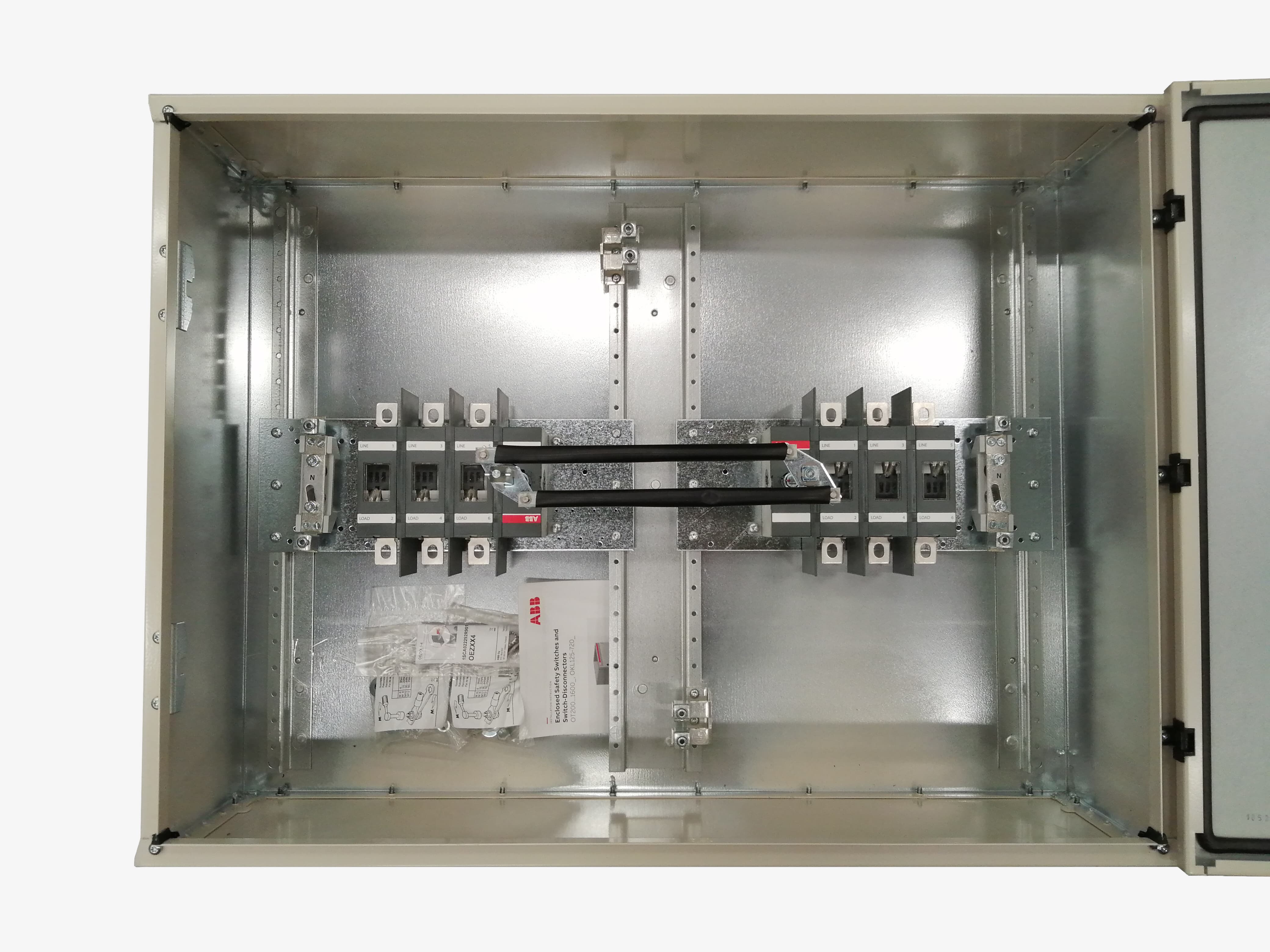

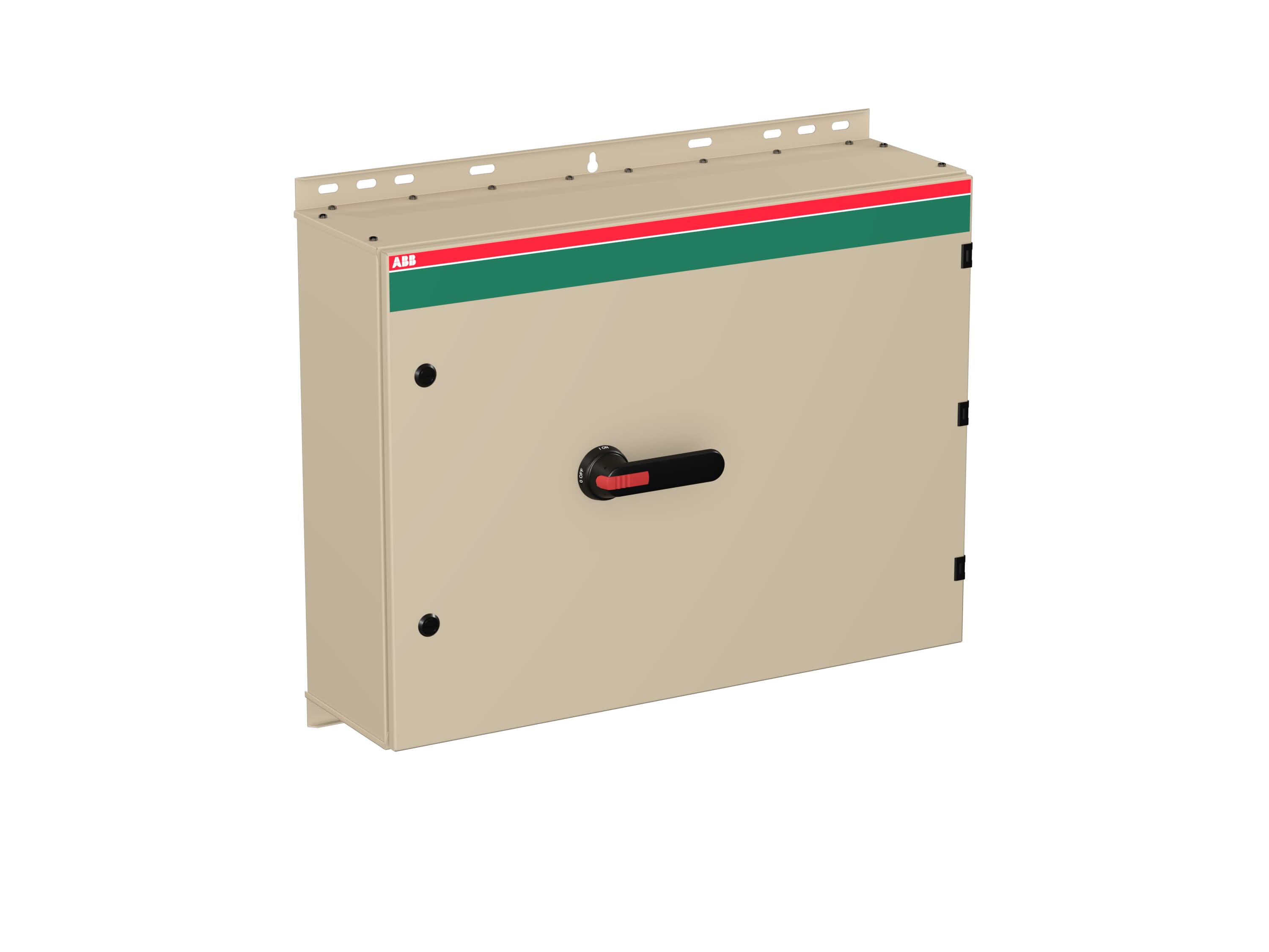

Encl. Switch Disconnector, 6-p. 415V AC23 200A, 110kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 135 753.50 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 181 556.33 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 189 305.68 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 200 419.32 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 202 364.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 208 973.81 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 214 035.50 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 230 009.20 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 230 780.95 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 253 906.26 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 310 643.84 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 311 641.42 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 344 019.75 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b0aa7855-f850-4cb3-8c57-5fa0ecac87e8 Finland |
| Simplified SCIP | aee0f85b-bfb3-4674-8deb-c00203930eef Italy, 8e98a91c-e7d3-46cb-b26e-e7f8a37b397f Spain, dff8382e-7bf8-48ce-90d9-2002b7f3b853 Belgium, 2e0b7779-745c-4c9f-83d5-85cc95e0487a Sweden, e776a304-4538-47fd-894d-141e4551a62b Germany, 5cc86ff5-2369-40f1-9dc5-9bf4f9919b8a France, 75f9cb46-568e-460c-af0d-861c2b093768 Germany, 8606ca70-9782-438b-9864-47bc0450e6e0 Hungary, 79e52bb9-31e0-4922-8ff3-9187b7d35b3d Greece, d94bb0fa-c8a1-4a9c-9f4b-b545b8613188 Estonia, ae7b9f5c-7d30-4c2d-8357-e74de6150b35 Portugal, 8acef95f-c1ca-41a8-964d-a7340a78ae21 Poland, b56df503-5f8e-4d8f-abcb-6e8570678e29 Hungary, be0da575-42bc-48d5-b2d2-0b939cdea935 Bulgaria, 79679d54-e7dc-44d1-aa43-df0f05eaeb1c Netherlands, 054a5bbf-02e6-405f-8ab7-cb7259af142d Sweden, c6d37260-5c64-431e-af53-e5908752a076 Czechia, 43940569-e015-46b1-8ca8-d78167ad3672 Poland, 2dbbcfea-01d8-4144-bd27-376b610fb215 Germany, 66100be3-6d3f-49eb-a9b5-f2f0d153fdc0 Croatia, 1af9903b-b5c3-43ad-98b7-958b6cf8bef4 France, f7ff9f25-9315-48d5-8234-8377ecaccfd4 Poland, eee5be41-320a-4c46-a744-1360463069c6 Germany, ece69fe3-9c20-48cd-9b65-40dde4ff6ec6 Denmark, ce480112-7549-4a0b-a112-ca1499fa7759 Norway, 3ac01d55-5820-46e8-a7ed-3ea20810fce1 Belgium, ea6abdf9-2d1a-4720-ac93-31723b2a3b56 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 800 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 29.5 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 35 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 8pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT200KLUU6BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
