Артикул: 1SCA022801R0660
· Производитель: ABB
· EAN: 6417019265896
1SCA022801R0660
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
164 005.48 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
191 124.28 ₽
срок ≈1 мес. (38 дн.)

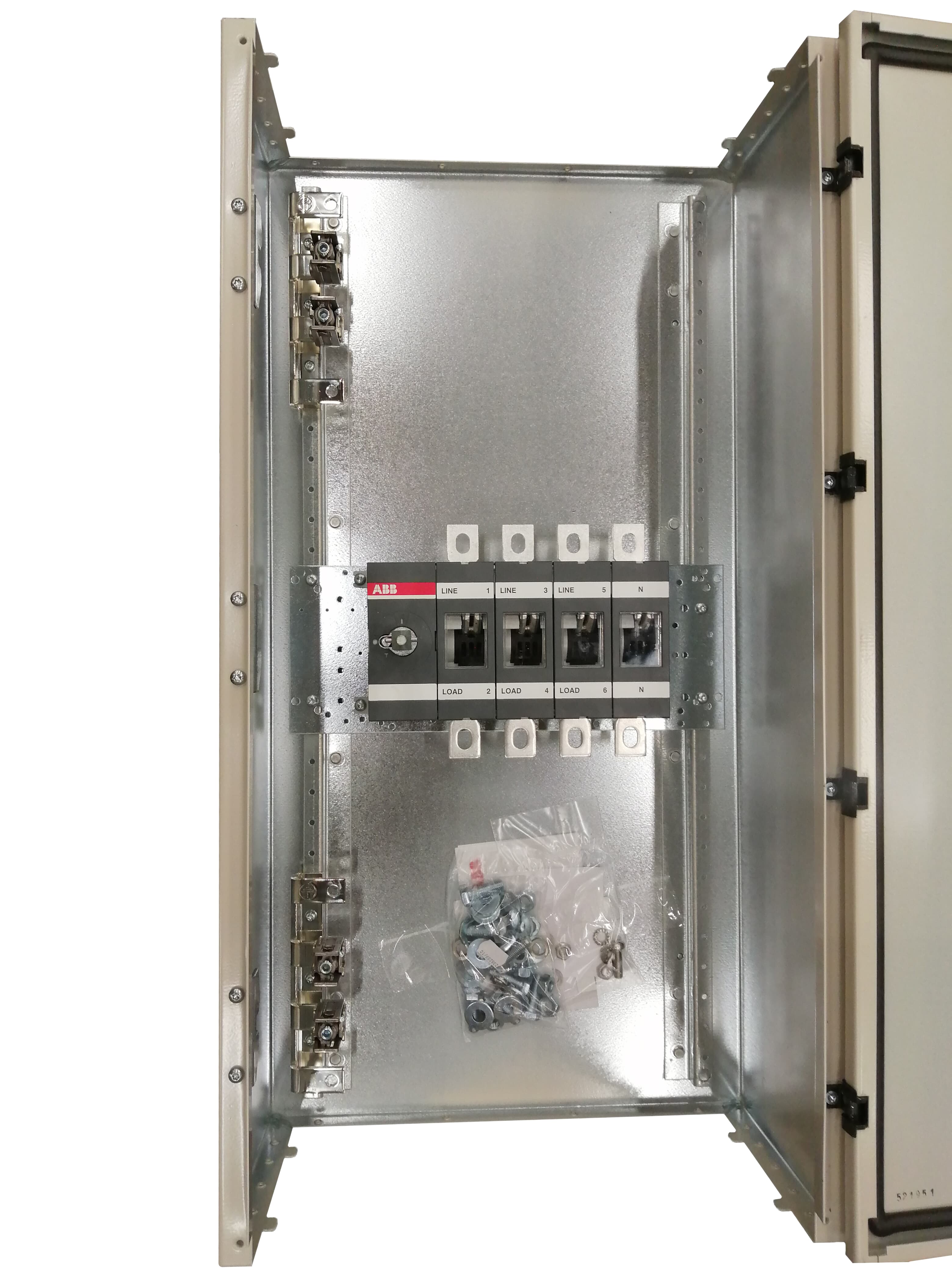

Encl. Switch Disconnector, 4-p. 415V AC23 400A, 230kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 164 005.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 191 124.28 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 201 532.45 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 210 981.34 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 212 869.78 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 222 470.88 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 234 986.12 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 252 568.43 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 278 809.31 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 315 386.47 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4095748f-8a27-4403-ae60-f741f3226e70 Finland |
| Simplified SCIP | 0767f385-a472-48ef-b815-041668189142 Belgium, b888ad30-fcaf-4081-bb0b-a757bacfa74a Spain, 37597236-b03d-4738-8300-b58c6d7cf419 Hungary, a96de3b9-d713-4a80-bfcf-13c060f0ae6f Hungary, 60afa5b6-0693-4a5c-b597-0514b2c858ee Greece, 59f52689-defb-4e77-8451-e0759a63cd81 Portugal, 5d79e7fb-4c05-449f-8d52-589a87fcee72 Netherlands, 5b836d61-e6c8-48ef-8eec-399dc6c01fbc Estonia, b160319b-7076-4f58-acd5-6861064d13c7 Poland, db92ff87-2f2c-430c-b807-cdde68500dfb Czechia, d7a87b6d-89be-45bd-a050-fd9950c31678 Croatia, 604bc6b7-23b6-48a1-84b1-3ffa864c3d8a Denmark, f3bdbb72-9fd9-4b4a-8241-750fcce4108f Germany, 53fff2a8-8c8f-4f16-aa2d-36251922a642 Germany, dd0c592b-3cb8-460d-aca5-15798eecddd9 Belgium, 087425f8-8e41-46f0-9ac9-85fd23a2e9bf Norway, 010c8de8-6471-4266-a2ec-9de75d1c64bc Poland, df3a75f9-58a7-4e30-8a1f-11c6b876a4b8 Germany, 40f53598-6375-4e64-b4ef-3890bea7ad52 Italy, 65ffb7ff-2d82-495e-a990-d39164fe07f3 France, a0216d89-b994-43f2-9dc2-3ce106128943 Germany, 3a5c9563-be1d-40c5-a0f6-ff68b0dc7cb7 Sweden, 049f8062-9ff2-42e8-ad56-47e0edb7be42 Germany, 5f50d997-22aa-4112-8b89-0d2fa8d5f598 France, 357d7637-2b0f-4e57-aec3-71eae7d22d16 Poland, 425cb7a8-9e5e-4dcb-adad-f96f94031526 Sweden, 9cd2d27a-628e-449b-9a7d-5c2070fcc2e9 Bulgaria |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 22.05 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 24.2 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 10 W, Total 30 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Impulse Withstand Voltage (Uimp) | 15 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA, for 0.2 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT400DLUU4BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
