Артикул: 1SCA022800R5740
· Производитель: ABB
· EAN: 6417019265476
1SCA022800R5740
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
97 541.02 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
118 906.72 ₽
срок ≈1 мес. (38 дн.)

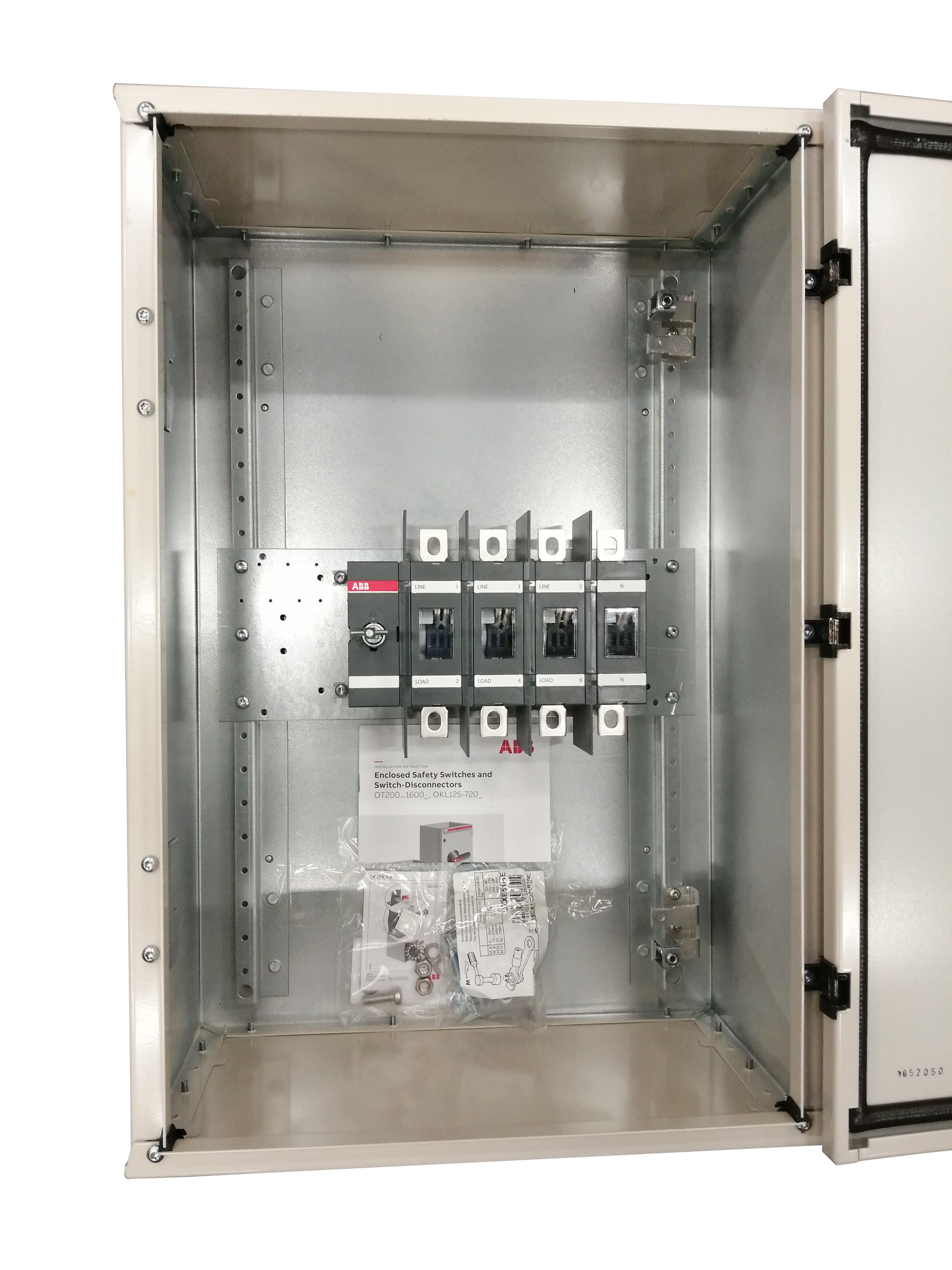

Encl. Switch Disconnector, 4-p. 415V AC23 200A, 110kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 97 541.02 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 118 906.72 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 124 795.85 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 129 378.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 131 260.66 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 137 761.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 142 820.18 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 150 213.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 165 819.73 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 183 114.79 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 81af22bd-2503-4ca3-a9e3-fb92811baeed Finland |
| Simplified SCIP | b8031574-0a6d-4463-af75-8e3eb91418ad Germany, 3628cefe-7c02-418a-b892-783fcf494f8c Belgium, 7acf4735-8efd-493b-a8cc-f4623fb70e0c Estonia, f420ebd0-9250-4bfa-91c3-7382ef094db9 Hungary, a2163b30-39d0-4327-ac28-344b92e8428a Sweden, 2ead45c2-adb0-4846-88cb-2613fb4f9a27 Bulgaria, bbe8c9f8-7de9-4d6d-bf33-49208674eecd France, 59b3cd51-5642-4fcc-8c38-b6cf32813362 Denmark, 2dee69a2-3d46-46fe-9f8f-c6c5f5a80aff Czechia, 676d7b78-7062-4fee-b350-c41c8e5c9ecf Germany, 92c3a845-ffba-492d-b197-884108f81ba7 Croatia, 2c7a08b7-f622-43df-912c-204150b2134b Belgium, 06014cca-a396-4571-ac8d-c174872095f5 Norway, 204b9747-af70-40de-949a-8c35a3ef8043 Germany, cc3e3b02-0db1-4c74-8af5-91e2c8770886 France, 364ea750-0fb1-4238-9f6f-824b831fa834 Sweden, 6b64e1c6-0177-4282-9ebf-2a33b0e82f88 Germany, 24bdf028-7bd2-4c29-a1c6-6c833109095a Spain, c8fafc8b-fd3e-4abf-87b9-1bd02dd236bd Hungary, b951d4df-4f49-4237-bfd7-c30a56002b08 Poland, 1da1166f-4d25-466f-ba8e-1eac1125e398 Netherlands, 97e8c3d1-bbf7-465a-ac15-89cc4ea68fbd Portugal, 0bebf80e-962e-4685-88c6-b26e42cd947d Greece, b78795d3-3995-40ce-9678-e9d5baa0796d Italy, 7f539d30-55b0-47dd-8c31-e4b14849618e Poland, 0f4fbb04-6195-4a4a-84cc-ff109983f2a2 Poland, 925de3e3-80ed-4f76-b42f-f2dabd59810d Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.61 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17.3 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 2pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 12 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT200KLUU4BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
