Артикул: 1SCA022785R4270
· Производитель: ABB
· EAN: 6417019255798
1SCA022785R4270
Под заказ
Наличие в РФ
174 463.44 ₽
в наличии на складе · 5 шт.
Склад в Китае
116 465.33 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
145 892.26 ₽
срок ≈1 мес. (38 дн.)

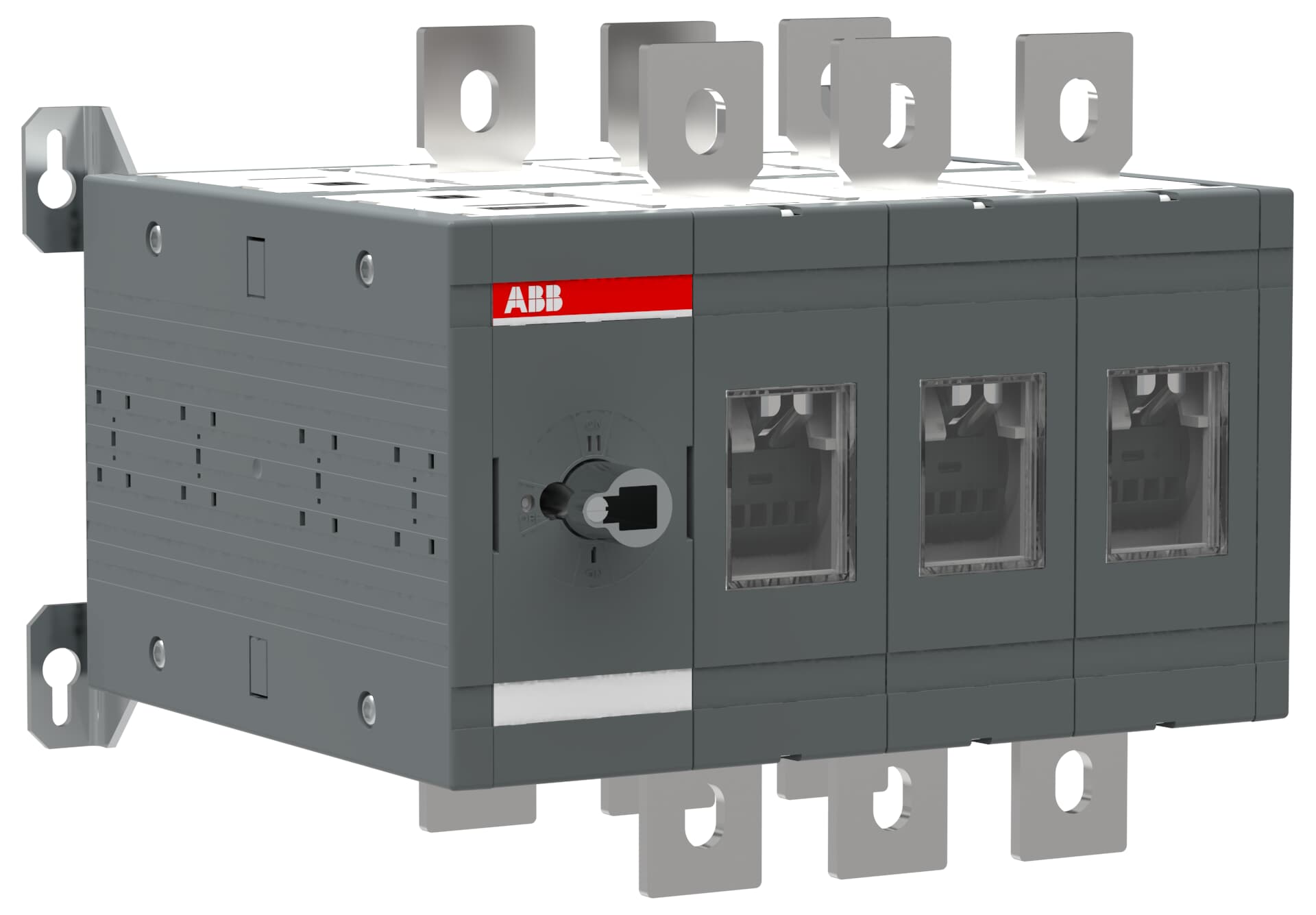

800A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 116 465.33 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 145 892.26 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 150 477.53 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 150 544.90 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 161 049.90 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 166 111.56 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 173 751.72 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в России | 174 463.44 ₽ | 5 дн. | 5 шт. | — | Заказать |
| Склад в Европе | 180 581.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 197 991.06 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 199 343.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 231 839.14 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 255 926.33 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 257 883.88 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 311 mm, 12.24 in |
| Product Net Height | 250 mm, 9.84 in |
| Product Net Depth / Length | 280 mm, 11.02 in |
| Product Net Weight | 15 kg, 33.07 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 310 mm, 12.2 in |
| Package Level 1 Depth / Length | 560 mm, 22.05 in |
| Package Level 1 Height | 330 mm, 12.99 in |
| Package Level 1 Gross Weight | 18.14 kg, 39.99 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW, (500 V) 560 kW, (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 40 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT800E03C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Change-over Switches |
