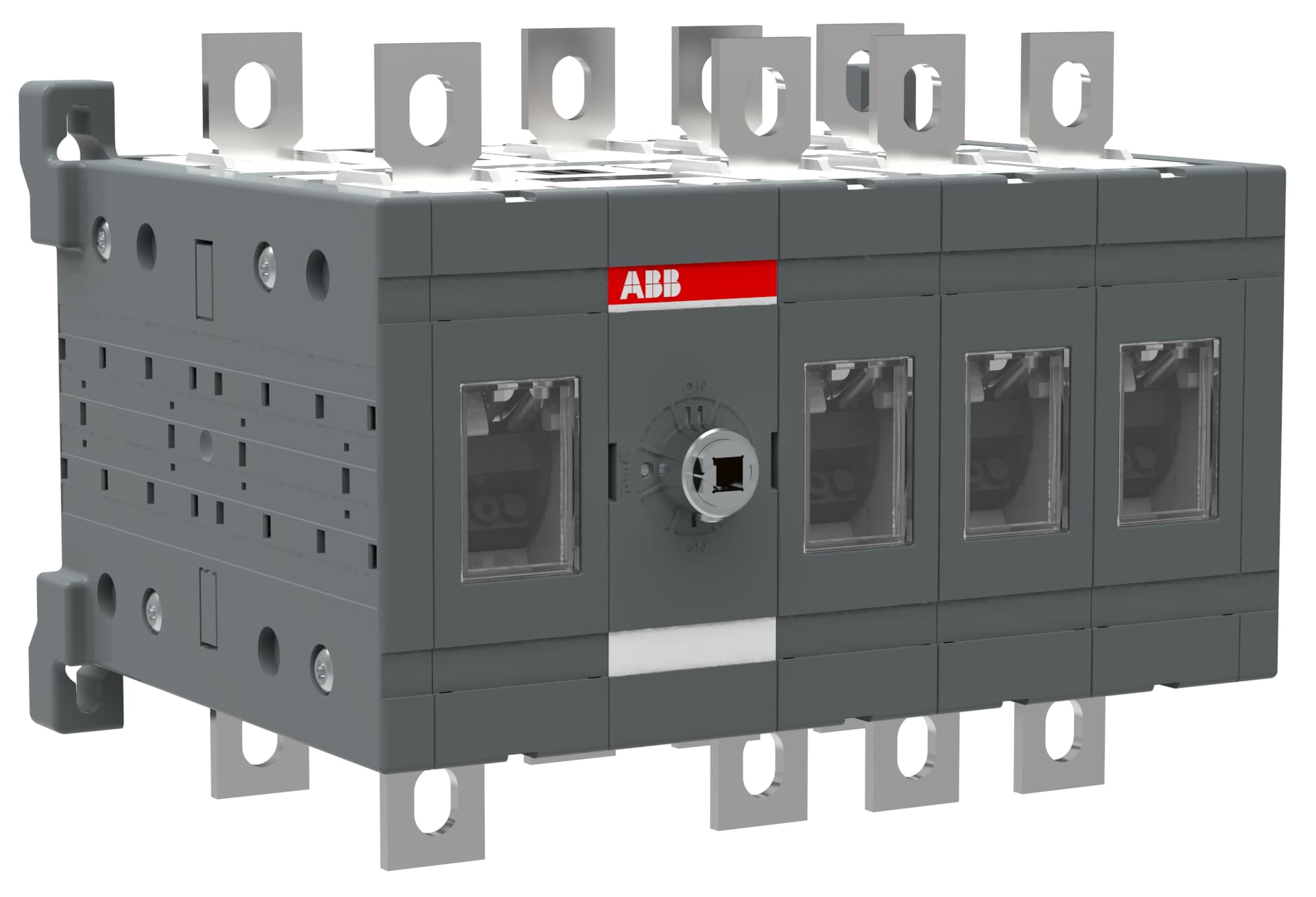

Артикул: 1SCA022777R0840
· Производитель: ABB
· EAN: 6417019253152
1SCA022777R0840
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
50 163.32 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
45 442.07 ₽
срок ≈4 мес. (122 дн.)
200A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 45 442.07 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 327.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 50 163.32 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 50 408.66 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 51 140.98 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 55 645.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 71 346.77 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ee6e5d62-f45b-4a79-a593-04c4a8d59994 Finland |
| Simplified SCIP | 2351c5a8-836f-4816-90e5-09d71824006f Poland, 57ac254b-1de2-47ad-a612-bc3df2eed62a France, a300ecc5-2526-426a-a6d4-08f610893852 Sweden, 0995ab85-1bd8-4693-a86c-7518b0904ab2 Germany, e46dd2f1-f51c-45f8-a93a-09618443a57c France, 8d63c8c0-20a2-43da-a99e-67271a08cd39 Italy, 1d1748db-1eca-428e-956c-92cf632e89a3 Hungary, e792842a-73c9-4dfd-9491-bbc2928dfb0d Spain, d62f9daa-3e14-4f71-9e35-8eb749e8e5d6 Belgium, 7569770d-83a4-460b-8fec-3d5d5137c459 Romania, 8d10278e-f1c7-44cf-8086-927859736492 Belgium, 0b5795eb-3375-4c80-8dbb-6337aac48d42 Croatia, 8ff8243b-a297-4233-aa5d-655a448760b8 Czechia, 9ba9c20d-09fa-4339-bcc4-ab86538b1072 Hungary, f75379a6-3f0a-4883-a8f7-8545a5341105 Netherlands, 18325f3f-eef4-447d-9e45-b8d1213e9c73 Poland, 08e0be38-e99c-408c-897f-1ea980bf85cb Estonia, 9d7bc63e-1bfd-4057-a3ae-be5a0a02a0c1 Greece, dfceed6e-bfa7-4439-a569-aaa9912c83d9 Portugal, d11aac96-4380-4c2f-9529-94a614d14b9a Germany, 2d064568-4af2-41ec-a49f-ba2da9396fcd Bulgaria, c8023ac4-25fd-4370-ad03-d239467180f5 Sweden, 0e6ac359-7758-4870-a2bc-0fff6af683ee Norway, 43cf14a6-a400-4c35-8a54-5c302cc8075e Denmark, d3581867-4fb5-4920-933d-c95c6b03ee0c Germany, 844e1b2b-a0af-4ae3-a7cc-ac2d7854e8b7 Germany, c47bb8b1-f7bb-4ad8-90bc-0352e1ae0202 Poland, c244d90a-fa8d-4b7c-9579-e420be44d51a Germany |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 205 mm, 8.07 in |
| Product Net Height | 150 mm, 5.91 in |
| Product Net Depth / Length | 160 mm, 6.3 in |
| Product Net Weight | 3.95 kg, 8.71 lb |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 160 mm, 6.3 in |
| Package Level 1 Depth / Length | 270 mm, 10.63 in |
| Package Level 1 Height | 185 mm, 7.28 in |
| Package Level 1 Gross Weight | 4.1 kg, 9.04 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles, 13 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT200E13C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Change-over Switches |
