Артикул: 1SCA022771R7010
· Производитель: ABB
· EAN: 6417019251868
1SCA022771R7010
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
44 781.92 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
44 558.32 ₽
срок ≈4 мес. (122 дн.)

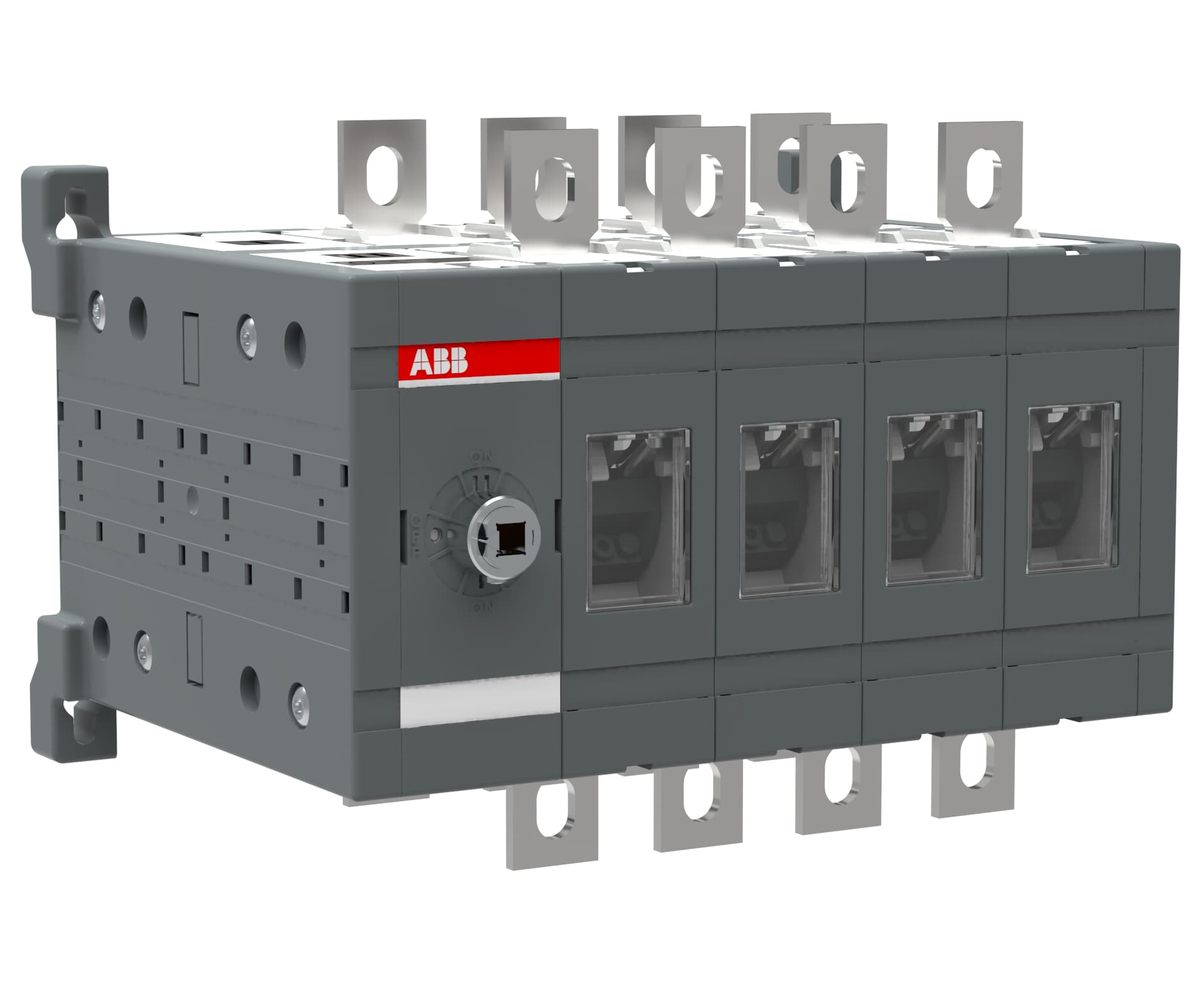

200A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 44 558.32 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 781.92 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 45 426.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 49 187.76 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 427.07 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 50 146.61 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54 562.35 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 68 964.15 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 69 956.58 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 76 129.26 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f7319bc8-aecf-4638-826c-5e010f66c468 Finland |
| Simplified SCIP | 6502d0de-2f6c-47d4-bc00-a6bb4b730616 Germany, 2f87ce7c-527f-4468-bbd2-34ecb0bf3764 Germany, ae039fbd-f277-4456-bdc4-9eadbe2a0ef9 Germany, a87731c0-14b7-4772-afc2-7ac4849c5c58 Germany, 44ff7471-ee27-4a00-b701-e0b5466e81d2 France, e38f1985-77c1-4325-9911-c4df33f7e967 Hungary, f1543484-2f39-46e4-a726-ad901280a048 Sweden, e3c753c0-85b3-4b79-b56a-63a1aea02272 Italy, b32e7907-9dc4-4cc5-bb69-658368ee7527 Belgium, 57761300-3d74-42a2-8c9e-a0cee576d93d Spain, 41323844-f4ef-489b-a086-d518d56bf97d Romania, fad040fb-9d94-4810-8aee-4424d6a3ede1 Belgium, 7a01ba71-3ad3-4a8a-81be-893747c8d884 Denmark, 88459c2f-eb6e-4484-9c82-e860ec060c6f Norway, b05053fd-4985-445a-8199-f14cdfbf1115 Sweden, 1f8e6197-9970-4391-b39f-37c7cb2e7a3c Poland, 12a22ef8-683f-403f-9d24-db97f15a7b23 Poland, 9a73a2ed-6f07-4633-b06c-28b1444cdba4 France, 5562488d-ff38-4b5d-8400-e6dd35435a8b Portugal, 73148195-6460-48b3-8e27-0710297fdc07 Germany, eaf2a742-e7ca-4e31-9fd8-2aee6ef4c9c0 Bulgaria, 76166801-6268-4725-b055-8979310e8535 Greece, 877d558b-4b75-4307-b863-8db031668b9b Netherlands, d896cf5d-8458-402a-8dd7-0276cac0eae9 Poland, c7490c8c-0d02-4cba-ba2d-86fc3d51e221 Hungary, 40debe0b-a29f-4bbe-958a-dbead6f6323f Estonia, ca7b7891-7f8f-4f22-a6c3-b47034751fcd Croatia, 5ccabbec-187c-4c27-b761-a79d77edd01c Czechia |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 229 mm, 9.02 in |
| Product Net Height | 150 mm, 5.91 in |
| Product Net Depth / Length | 160 mm, 6.3 in |
| Product Net Weight | 3.6 kg, 7.94 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 160 mm, 6.3 in |
| Package Level 1 Depth / Length | 270 mm, 10.63 in |
| Package Level 1 Height | 185 mm, 7.28 in |
| Package Level 1 Gross Weight | 3.9 kg, 8.6 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT200E04C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Change-over Switches |
