Артикул: 1SCA022764R7130
· Производитель: ABB
· EAN: 6417019249834
1SCA022764R7130
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
27 260.43 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
33 703.55 ₽
срок ≈1 мес. (38 дн.)

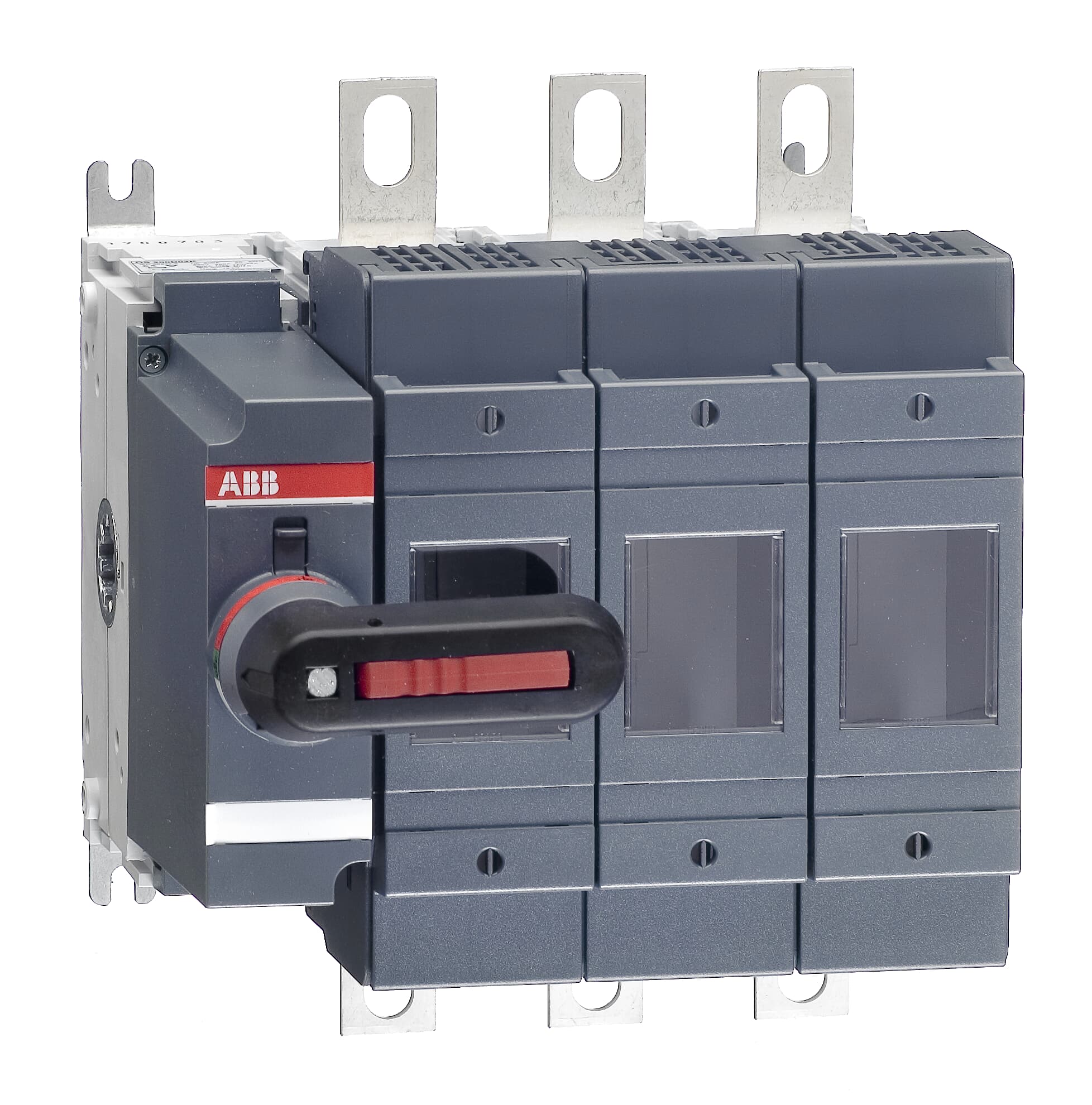

Switch-disconnector fuse, 200A, 3-pole, DIN 0, front operated with direct handle.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 27 260.43 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 33 703.55 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 827.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 029.30 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 205.21 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 772.60 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 604.10 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 44 146.73 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 46 342.74 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48 733.40 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 53 633.68 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 59 206.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60 361.27 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6da8a545-856a-49e4-b39f-8610c85be1af Finland |
| Simplified SCIP | 905c4dfd-c6d7-43ec-8a12-c05808aa27ea Norway, dc66f07a-8116-4685-88bf-460b084c3936 Germany, 417bbd82-4764-4384-89c8-e94252365d07 Bulgaria, e3f91cb3-18a7-491f-a979-bb8fb4ed9a07 Poland, 2a390c0e-8018-4377-b240-4fe6e53dcf38 Portugal, 390acd47-6b4d-4ef5-a396-570775fe0af7 Sweden, e7142c54-3df3-4ca4-a274-3f2f180d21cf Denmark, cfda11dc-015c-4f32-8250-1c2bf2fda129 Germany, d8a417d5-4b1a-4b05-b36e-bc49a17c6208 Croatia, 2db76d39-ff61-4c04-92ac-ad09709a1f59 Greece, 4c5bcf8b-1bbf-42df-965a-834a33a4cbd0 Estonia, 10c4bdb2-da3e-4606-aead-b326522a4292 Hungary, 52143d13-35ce-4904-8f0a-849d1a503a05 France, 8950c1ba-1960-446f-8d03-49243bffafc6 Belgium, e026db56-0c74-4a43-b45b-7e32d956c696 Spain, e38921c5-d216-4062-8ba7-1e6d230ecf75 Romania, 3935665b-14c8-4192-9b4d-adb52a314f3b Italy, d5322de9-47ed-4a05-ae65-f9bb0852bf96 Germany, 83ca85af-97c5-4ec0-abe2-071703e621ab Germany, 9062ec5f-9d6f-4e7a-ac84-1a2a88bacdee Belgium, 779159ab-cd1d-455d-986f-6275f7899954 Hungary, 5f504ddc-3c66-420b-a8af-6982d9e01a3d Netherlands, 1a3d310f-de42-436c-bd07-280d20561ec3 Poland, 129bd636-4e34-43a2-8d64-ecc133f87d23 Czechia, e7ad0ced-7467-48d4-96ce-104a8efc2ef8 Sweden, 8c2bc8f0-ef42-4cd4-a3ee-58fff0bdbadb Germany, e44128bc-0e08-4860-b3e3-14857a5d3e54 Poland, a9fd8922-1e6d-4c2e-82be-85117538ea0e France |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 177 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 191 mm |
| Product Net Weight | 3 kg, 6.6 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm, 10.6 in |
| Package Level 1 Depth / Length | 310 mm, 12.2 in |
| Package Level 1 Height | 200 mm, 7.9 in |
| Package Level 1 Gross Weight | 3.3 kg, 7.2 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Handle Type | Direct Mount |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW, (400 V) 110 kW, (415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS200D03K |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
