Артикул: 1SCA022764R1950
· Производитель: ABB
· EAN: 6417019249667
1SCA022764R1950
Под заказ
Наличие в РФ
76 105.27 ₽
в наличии на складе · 28 шт.
Склад в Китае
66 769.45 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
66 793.96 ₽
срок ≈1 мес. (38 дн.)

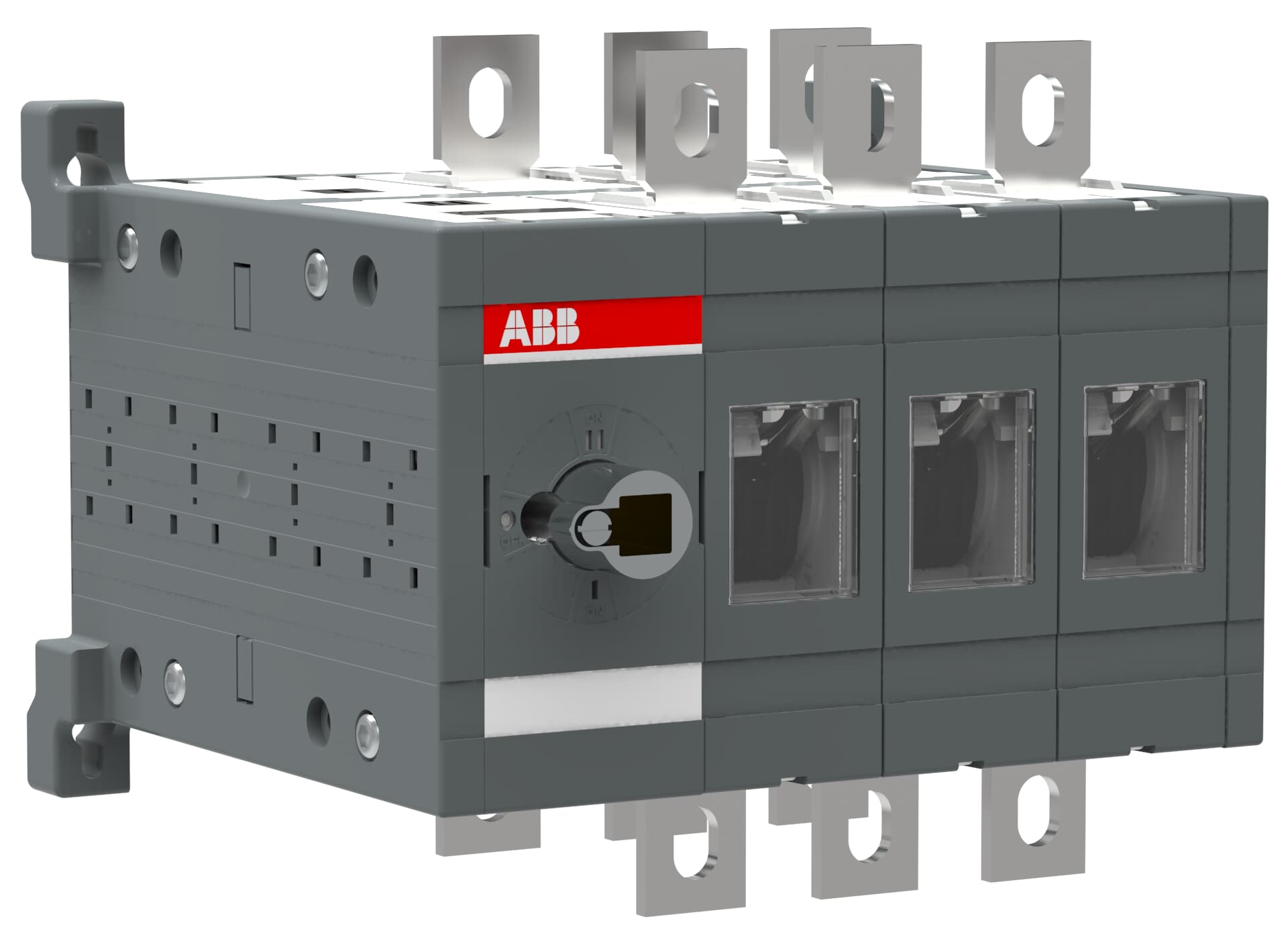

400A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 66 769.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 66 793.96 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 73 733.59 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в России | 76 105.27 ₽ | 5 дн. | 28 шт. | — | Заказать |
| Склад в Европе | 76 606.40 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 79 599.79 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 84 565.51 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 87 869.90 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 90 160.08 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 102 824.96 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 113 508.07 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 221 mm, 8.7 in |
| Product Net Height | 185 mm, 7.28 in |
| Product Net Depth / Length | 203 mm, 7.99 in |
| Product Net Weight | 5.68 kg, 12.52 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 240 mm, 9.45 in |
| Package Level 1 Depth / Length | 270 mm, 10.63 in |
| Package Level 1 Height | 218 mm, 8.58 in |
| Package Level 1 Gross Weight | 6.08 kg, 13.4 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT400E03C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Change-over Switches |
