Артикул: 1SCA022763R6360
· Производитель: ABB
· EAN: 6417019249421
1SCA022763R6360
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
30 687.76 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
39 649.45 ₽
срок ≈4 мес. (122 дн.)

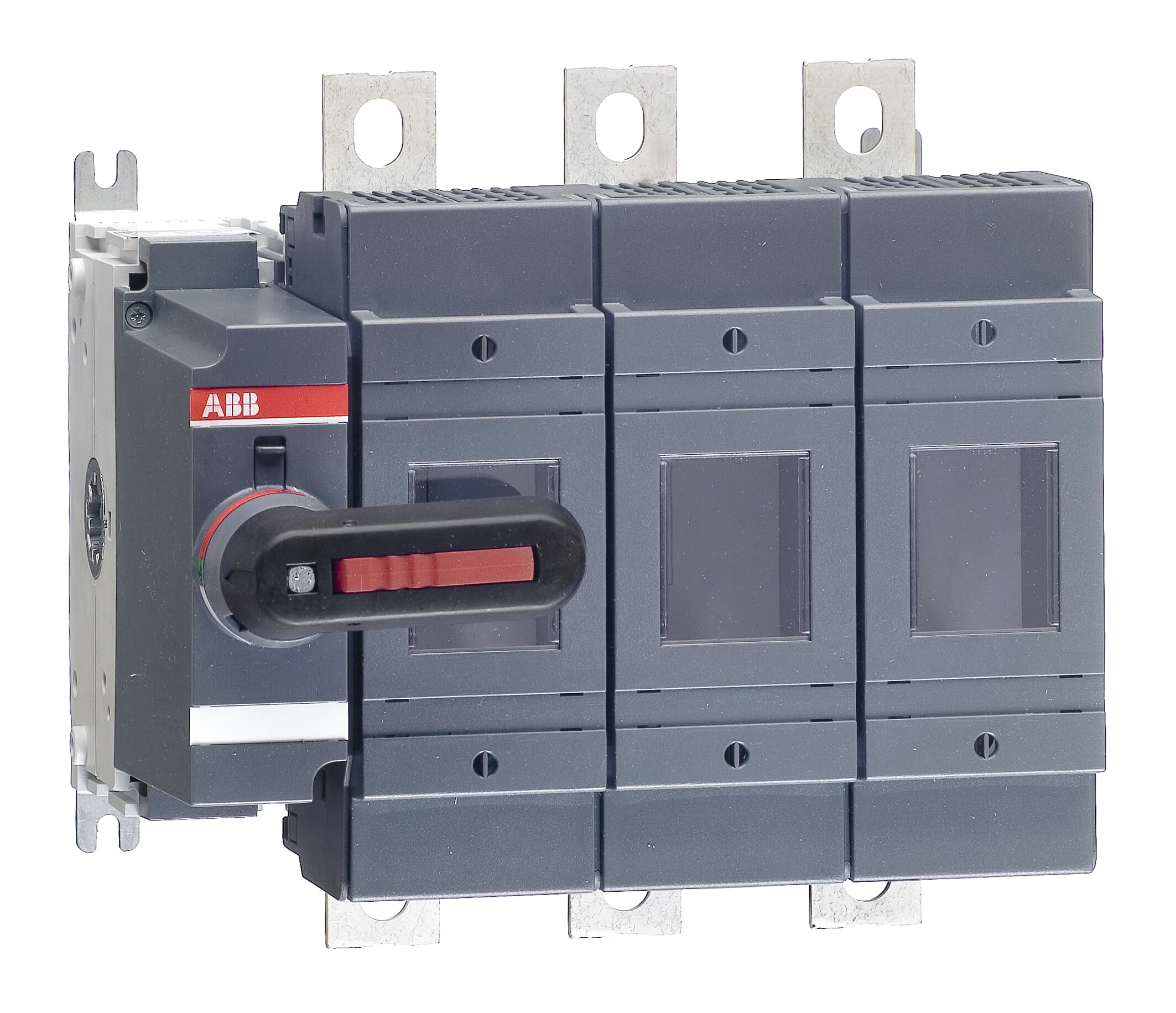

Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,0,1,Direct mounted handle,
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 30 687.76 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 39 649.45 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 43 768.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 142.31 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 45 782.51 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52 169.19 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 54 736.00 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 55 216.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 60 422.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 60 953.04 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 67 979.16 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 70 701.02 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 75 041.93 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 95256a18-ee4c-44ae-8927-1b94940d849a Finland |
| Simplified SCIP | e6c5537e-a744-4274-a6a6-6cdea2310abf Belgium, f7e67bde-1010-439a-bced-db006cab64c9 Romania, 1d7a87fd-79a3-4966-b404-930ef0c43722 Hungary, f0510e6b-0966-4731-8b21-c93519f23ae8 France, 80ebc7c3-6fa6-43a5-857e-f45af692439b Netherlands, 2653e668-9ef5-479d-92fe-61acd33483da Poland, 0f4fef38-0192-498b-9be3-33b81f5f1a36 Czechia, e32af96a-2988-4a7e-8b28-2e120913e4bc France, 6b3b1c71-e46d-4d3f-844e-2fc17585ce0b Germany, e2ce0ab6-7560-4f10-aa7e-cae9a98798ec Sweden, 20bfbc96-4e63-4bf0-877e-458c1b4ac78a Germany, 4e54f2d6-1145-4ded-8f73-9c4298b9c7f9 Sweden, d595392f-0b44-441c-b65e-64160af6a3e7 Poland, 9dd9fa07-68e9-49ea-b5a0-6ed4e56f6297 Poland, 05b978c5-6e6e-4493-af38-e58f1728f4a3 Bulgaria, 4b938c98-dbd7-4e89-8248-5306eb695312 Portugal, 6615f036-2618-4436-89ae-c20546244eb7 Denmark, fbd1afa0-c44a-404f-8ded-a6eb009bc9fe Germany, 0e4d4a4e-e8e5-4e81-9b18-6bf25e897f12 Belgium, e0d19ad3-ef0b-4ff4-bc66-9dd585047c49 Germany, a6a9155b-5b1e-41fc-bec8-150bfb7c6084 Greece, 40563e06-f9ef-46c3-9e0b-515a0a5173ef Estonia, 8ef59e3f-7573-4f57-acef-dd1db3fe96d8 Hungary, 0316b127-9339-4656-a78f-1ef9ac18fbdf Croatia, f1a35760-2821-4bdf-940a-6353424c5fab Norway, 952f2dd8-134f-444b-8f76-0e2f2e9b1d3d Italy, bb409ddf-10bd-4ee9-bf88-3145ec2e7ad8 Spain, 25a6772a-bc82-4f1b-9c9f-3fea98a383a6 Germany |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 208 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 191 mm |
| Product Net Weight | 4 kg, 8.7 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm, 10.6 in |
| Package Level 1 Depth / Length | 310 mm, 12.2 in |
| Package Level 1 Height | 200 mm, 7.9 in |
| Package Level 1 Gross Weight | 4.3 kg, 9.4 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Fuse Size | NH0, NH1 |
| Fuse System | DIN |
| Handle Type | Direct Mount |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 17 W, Total 51 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW, (400 V) 140 kW, (415 V) 145 kW, (500 V) 170 kW, (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642479 |
| extended_product_type | OS250D03K |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
