Артикул: 1SCA022758R8020
· Производитель: ABB
· EAN: 6417019247175
1SCA022758R8020
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
29 179.13 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
40 139.58 ₽
срок ≈1 мес. (38 дн.)

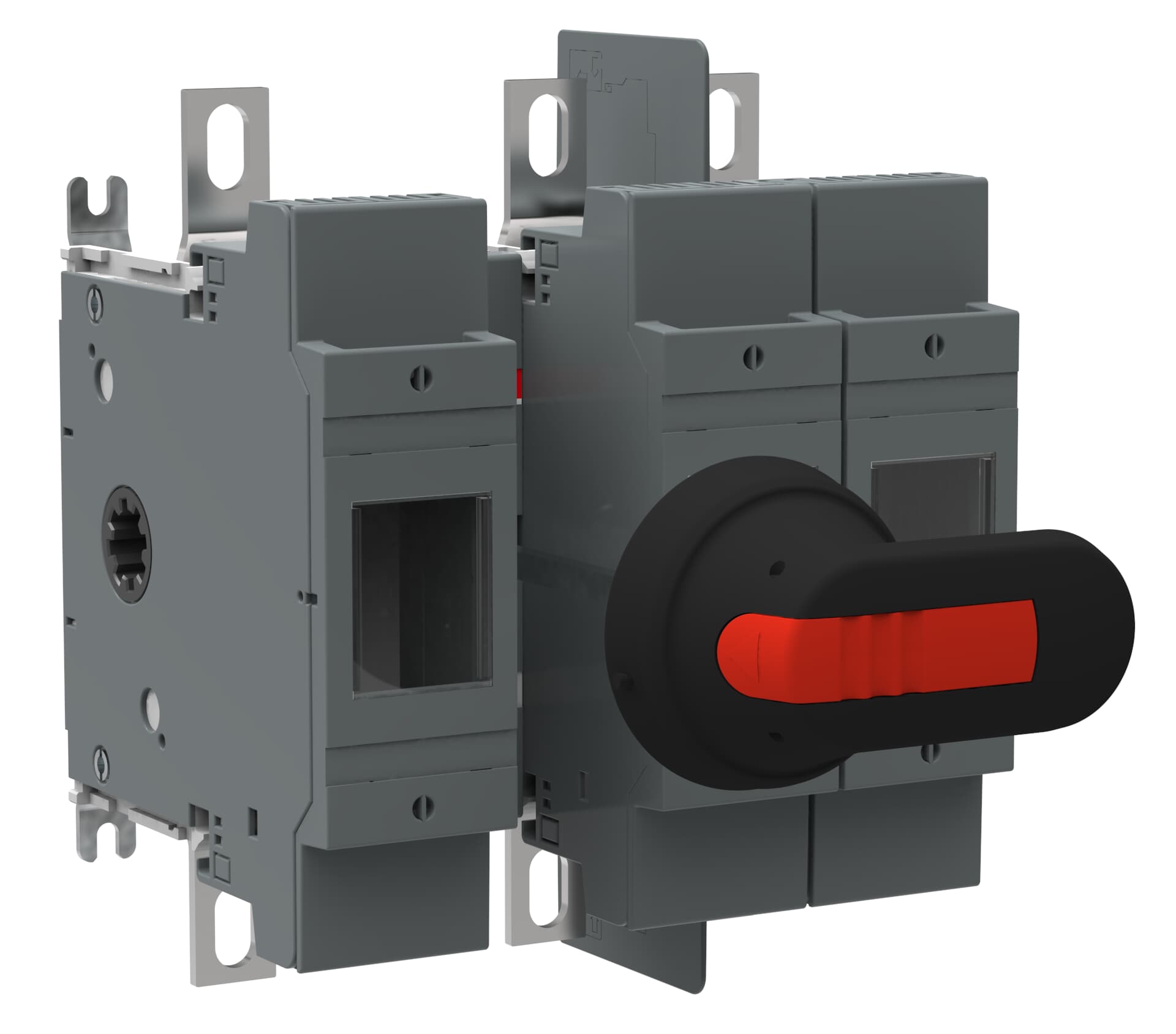

Fusible disconnect switch, 200A, 3-pole, class J, front operated, handle and shaft included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 29 179.13 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 40 139.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 40 690.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 309.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 917.83 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 003.16 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 218.91 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 49 604.51 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54 332.56 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 72 072.28 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c3fb6065-7d97-4e18-a32e-c07aeb39014f Finland |
| Simplified SCIP | b456f026-8bdb-4968-9376-5a8caf377f62 Germany, be97c13d-066f-48c5-9df5-4c982d4a3afa Belgium, 71cf2616-0a09-48e7-82d0-adb91ae4d74e Norway, b3da1fd1-c199-4bfd-a19f-f462454a4106 Italy, e26d68a0-0595-45ac-a8b3-9327a86e83ab Bulgaria, 0c1bc313-c46f-4a47-94c8-ad4f4a82f584 Poland, 451fa4bb-00c5-4ae0-a8ca-3075515ae962 Sweden, 2426e530-0839-43a9-9fd6-ccebb6743a64 Spain, c4cb933c-3ce5-43ee-bc5c-94cce8a03e8b Hungary, 38417bf4-b635-4ff9-8a22-4566726813a7 Belgium, 6160690f-a681-4158-b052-e3df0ef0f3f3 Estonia, 3b25bbd9-c51a-4cb2-9096-d502ab2cdb1b Greece, 7f445d5c-f612-4d5b-90e7-b10bf9112a62 Portugal, 22af9512-e4f8-44af-b0a9-3b2e3caa3999 Hungary, 19af3314-7b1c-4598-81d9-3175aa070f48 Sweden, 807d2a00-34fe-4270-9d6e-ffe934cebb8a Germany, 1421a383-1749-458c-b040-101b4b85b860 France, a3ccb2b1-122a-47cf-bd7d-8fa3b4983daf France, ebadd71b-9a73-4035-a555-0b184c39f7e5 Germany, 18edad47-d5f3-4e7f-8f78-e4fd2441cded Denmark, 4bd21e11-3775-4e29-9df2-9ff41a66531e Poland, dbe7ef49-b04b-4dd7-889f-0b18dbf66bbf Germany, 6c062b41-03c5-4163-8b8f-48a94d3cca67 Croatia, 23b69a36-eb85-4fab-8ea4-906567918f1e Czechia, 3c045687-5b62-46b7-b665-c977233deccd Poland, 30a8581a-cc2e-4ac1-9723-be6fbd447e4e Netherlands, 68bae271-2273-4d2a-a35d-21551d68774d Germany |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 182 mm |
| Product Net Height | 218 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 2.8 kg, 6.3 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 3.1 kg, 6.9 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW, (400 V) 110 kW, (415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL98, IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp, (acc. to UL 480 V) 125 Hp, (acc. to UL 600 V) 150 Hp |
| Tightening Torque UL/CSA | Wire-Clamp 200 in·lb, Cable Lug 72 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS200J12P |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
