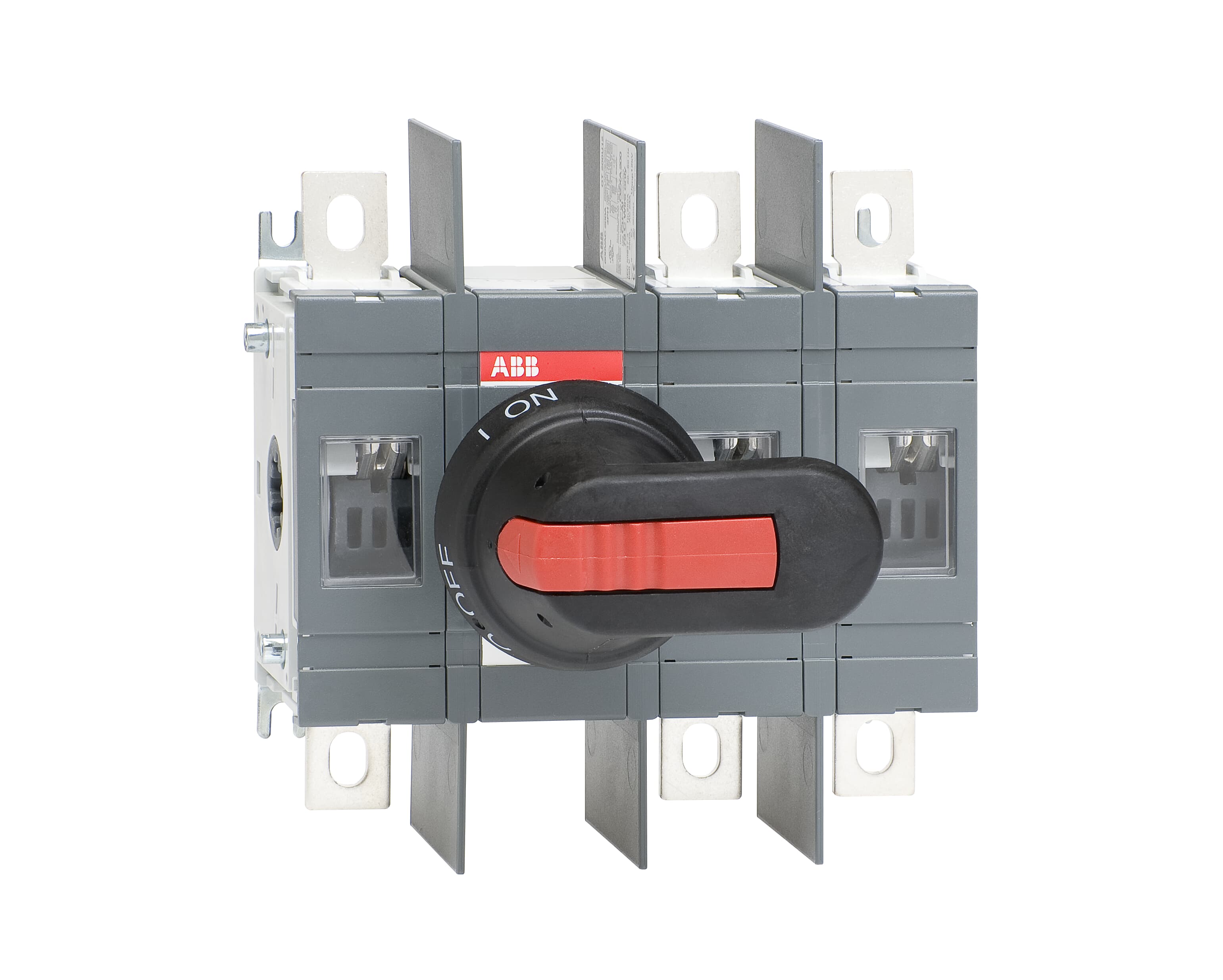

Артикул: 1SCA022752R2010
· Производитель: ABB
· EAN: 6417019244419
1SCA022752R2010
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
23 073.71 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
20 902.07 ₽
срок ≈1 мес. (38 дн.)
Including handle: NEMA 1, 3R, 12, IP65 and shaft
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 20 902.07 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 22 741.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 22 897.97 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 073.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25 104.64 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25 276.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 185.26 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a8b8e640-06a9-4f00-8dcf-1401e66b0599 Finland |
| Simplified SCIP | 58843525-8e46-4986-97c8-a6c427cccd51 Germany, 1ad5bf58-0c9c-4fc7-b496-5d0eb9009ab1 Netherlands, faac3558-5eb5-4c4c-b218-cdd9f4f24705 Belgium, 8edbdd6d-ccb9-4fb1-907b-76a5179b0d36 Germany, a71560c2-2ae9-4cd6-8a77-127465b560b4 Estonia, cc905ed4-291f-4270-92a0-2e7c51e0aadb Portugal, 7b368679-a3ea-41be-a894-062ffaa91247 Greece, 52ecf241-417d-4f41-8064-5f50cb814342 Norway, 83672e87-5a82-4022-b91d-b9e94fbf0297 Belgium, 70172030-dfa4-43f7-af68-23f0fd2e0899 Italy, 34c187cd-0891-4f35-ad80-74e841ad82b0 Poland, b1497bda-778d-46d2-b3d8-f59034efc7ca Poland, 617189b5-d261-4428-b2e5-ccd53da9765e Sweden, f4e0b3a9-b636-4517-bf87-e8fa3f3fc5d9 Poland, e6ee4131-58b7-4238-a8f6-2864ee4c6e20 Germany, 001b4f6b-ca2e-4b29-b2e2-78dec4ba0a8d Sweden, 00c8cd12-a2d0-4a5e-b5b1-147126bd4810 France, 12281cb3-5aaa-44c0-9f96-853cf23d3bfc Bulgaria, a524b84a-ec06-4b82-bd4f-3e709b6c94e3 Hungary, 7374e5db-8425-440c-88dd-f17dd1a0a033 Spain, 8a941017-2110-424a-bae4-f70aff01b1c4 Czechia, 07fb0eaa-af51-4dc7-9be1-60548be186ec Croatia, ac59510b-e455-42d2-9f4a-fa7a9185efcb Denmark, a21038f0-f8d7-44cd-9494-898a7cc0b175 Germany, d6ad6b24-c23d-43e1-98a1-f2661c3e8997 France, 9758b6e6-b7a4-4697-8c41-b691ee833d1d Germany, be676752-da84-4e62-9c68-7860480cce3f Hungary |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 174.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm, 7.5 in |
| Package Level 1 Depth / Length | 290 mm, 11.4 in |
| Package Level 1 Height | 110 mm, 4.3 in |
| Package Level 1 Gross Weight | 1.6 kg, 3.5 lb |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism Between the Poles, 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp, (acc. to UL 208 V) 60 Hp, (acc. to UL 240 V) 75 Hp, (acc. to UL 480 V) 150 Hp, (acc. to UL 600 V) 200 Hp |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660852 |
| extended_product_type | OT200U12P |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
