Артикул: 1SCA022750R1940
· Производитель: ABB
· EAN: 6417019243726
1SCA022750R1940
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
540 308.12 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
712 656.85 ₽
срок ≈1 мес. (38 дн.)

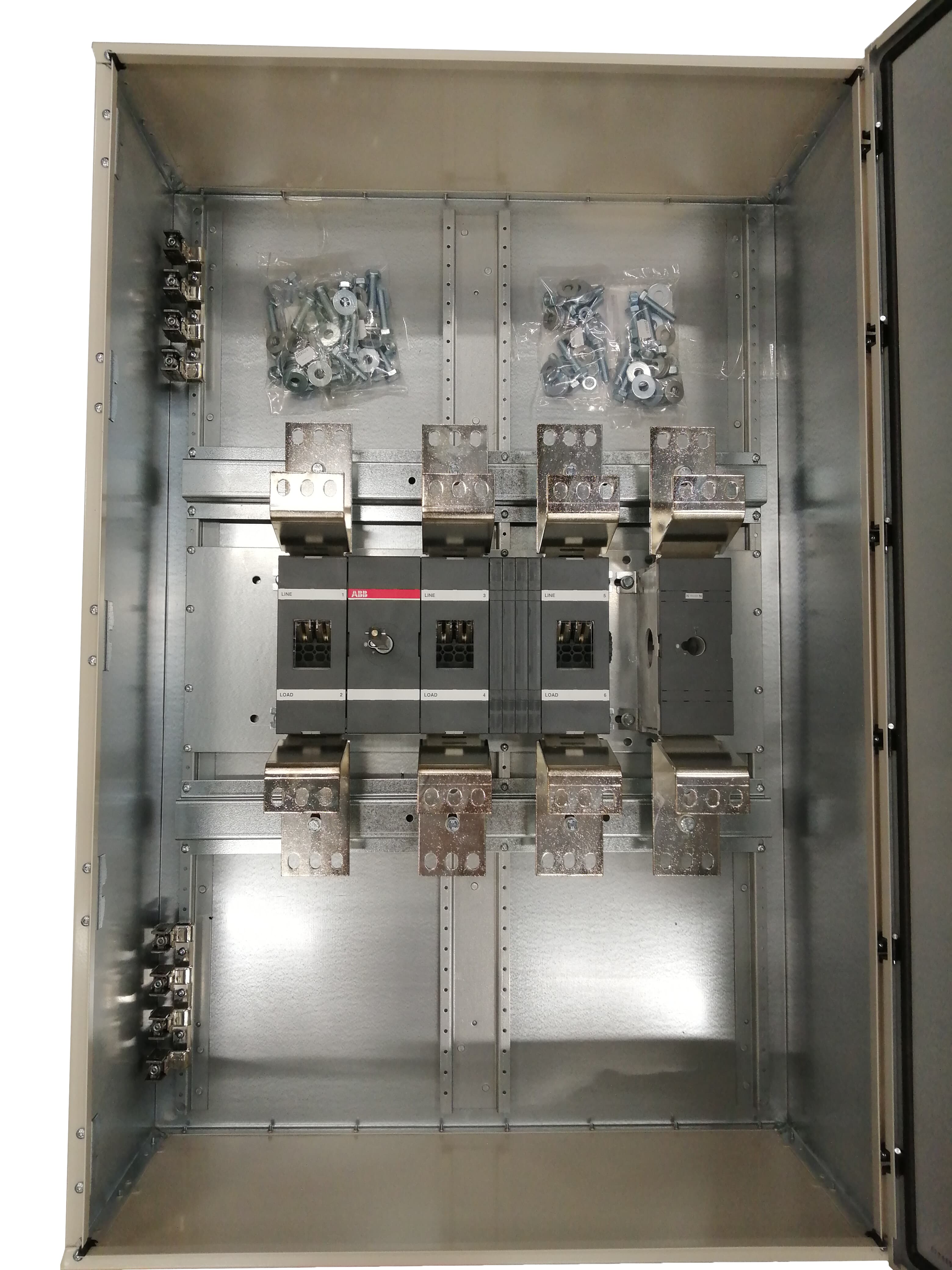

Encl. Switch Disconnector, 3-p. 415V AC23 1250A, 710kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 540 308.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 712 656.85 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 786 699.12 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 791 898.97 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 792 192.29 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 832 074.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 874 174.19 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 874 497.99 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 918 523.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 159 863.15 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 902d345d-b710-4f23-9752-68dfeb779e5d Finland |
| Simplified SCIP | 383d211c-e844-461b-ae78-1e73e65f96d8 Spain, b012d647-b5dd-4c7f-8828-2a0ee364f432 France, b7cfc57e-be61-4632-88b2-e86ba99d9c24 Germany, 029f53c6-da9c-409e-a163-579a13a37e11 Germany, 4702504a-11e8-4068-8517-6270c028004e Sweden, ce426323-5056-40ba-9a96-cafee27c236f Belgium, b4e3dbdb-4b62-4cc9-9b1f-a189eba80afd Estonia, e36ed194-2442-4f23-8890-9004a7a14e6e Portugal, 9b3ed12c-260a-4329-b30f-c542346a90c9 Hungary, 58fd5e2a-e70a-4015-8e01-85c7d44b0e2b Greece, 2bab0295-ecfc-4604-b1ff-f7afbb92c0dd Hungary, c747ca4a-6ba8-46ea-967b-165ee5a77d73 Sweden, 3964359f-5405-4181-9eef-8e02e56fe34e Poland, 60411e16-e7cf-415f-9af5-0a8db691ea64 Netherlands, 6d47b0dc-d680-48e1-839f-339f0a8f922d Bulgaria, 23b93522-b14f-49ae-a827-3eba930adfcc Italy, 5be243b9-e75a-4685-820c-1b976f76fd03 France, 6e1d6202-d82b-4149-b329-9598e5a42902 Poland, f4e7d9a7-5075-47a4-a64b-e6d318275622 Czechia, 44b571ec-921b-4d84-9b57-dfd40537d7ab Croatia, 4e11f2f1-9346-48ab-a03c-42d732613436 Germany, 0f0bc5d4-487c-4259-b945-1f28236fdf79 Denmark, 5576154d-4938-4311-b015-b62b2b2db9fc Belgium, 879845a9-d043-460a-9dfe-d7f32fb4fc4e Germany, 9804720b-d25d-4d70-9998-199cc80b1e7c Norway, 14bf3db9-e9d8-4bd7-92b9-64b0e6bb75c5 Poland, 902eaf94-befa-4bba-bee0-6abd42beaf0c Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 800 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 330 mm |
| Product Net Weight | 89.3 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 1310 mm |
| Package Level 1 Height | 425 mm |
| Package Level 1 Gross Weight | 94 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 8pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 48 W, Total 144 W |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 1600 A, (500 V) 1600 A, (690 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A, (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A, (500 V) 1250 A, (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW, (500 V) 900 kW, (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA, for 0.2 s 50 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT1600KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
