Артикул: 1SCA022750R1860
· Производитель: ABB
· EAN: 6417019243719
1SCA022750R1860
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
540 308.12 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
630 736.98 ₽
срок ≈1 мес. (38 дн.)

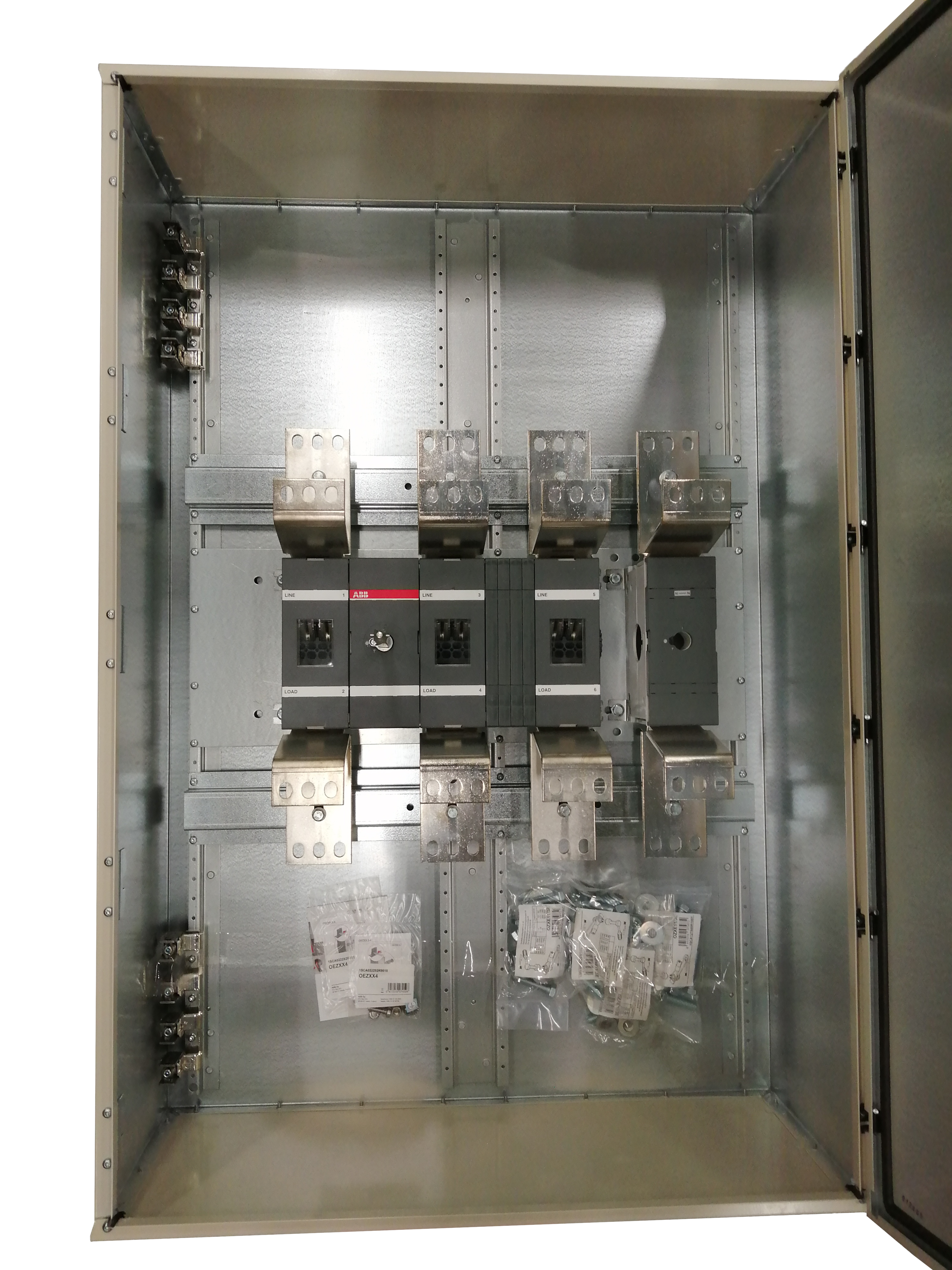

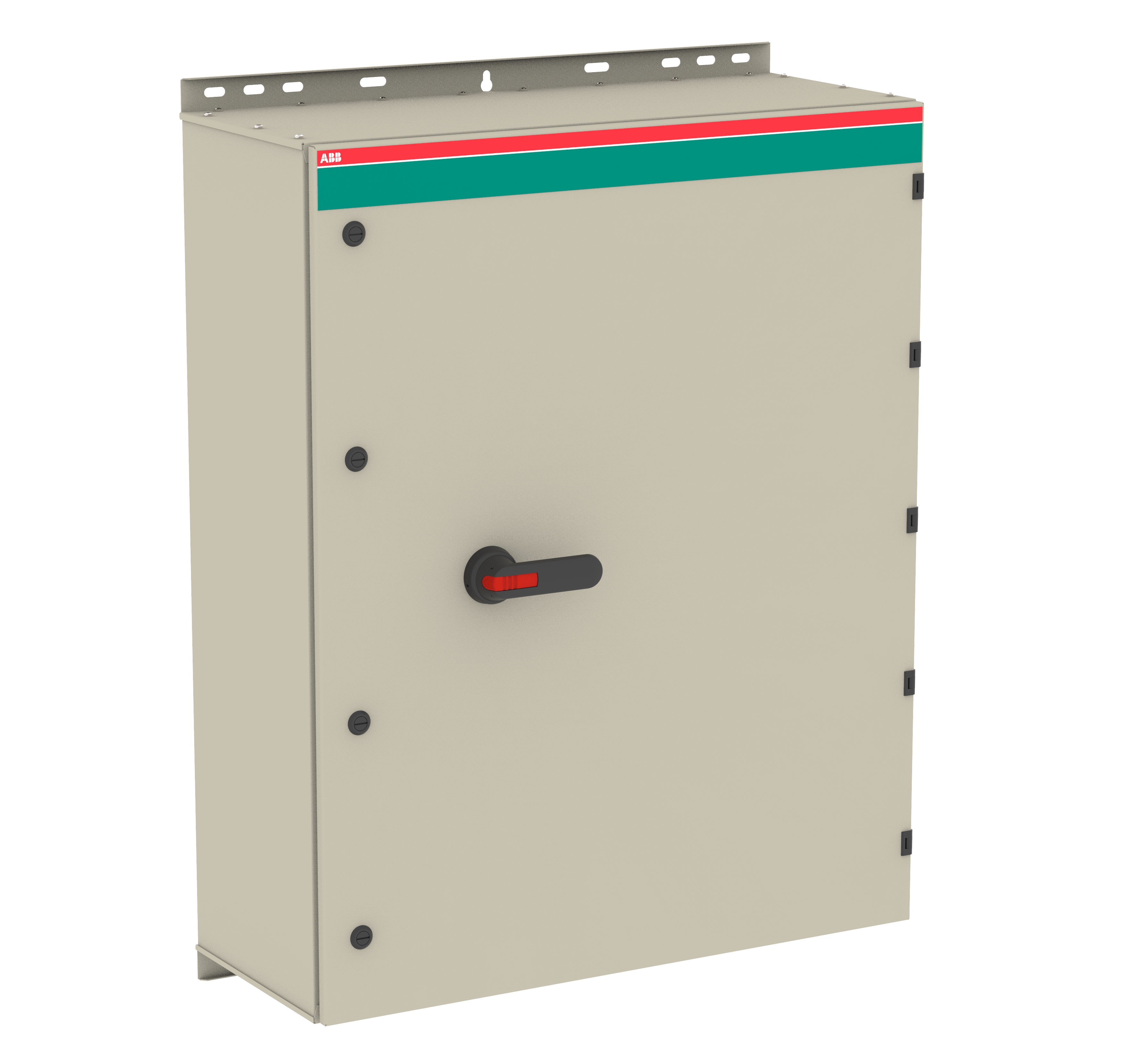

Encl. Switch Disconnector, 3-p. 415V AC23 1250A, 710kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 540 308.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 630 736.98 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 696 268.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 700 899.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 701 158.66 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 773 720.12 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 774 006.31 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 832 074.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 918 523.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 038 854.71 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1cc77b7d-3607-43e1-91c4-32e01e4c4790 Finland |
| Simplified SCIP | 568e8431-2c8d-4630-85a5-358af258ac0c Poland, a756bf29-4ce7-48c8-9559-bb662391dd79 France, 8fcc2d6b-831c-4664-b3e7-75c555bbecf3 Germany, 6df1396e-af70-4b33-99bc-be937cd4eb58 Sweden, 264b128c-731e-467a-a469-de8cd9eac87a Belgium, 9223b562-3e1d-44be-89bc-95eb2264642d Hungary, 84db9ef4-06e9-47f5-92a5-9b81bc6f79fe Spain, f53c10ac-87a0-42d4-a4cc-a37eb83d266f Germany, f53c60e0-376f-4b9c-a8d3-e788de07abf1 France, 2de45a68-8907-4d51-8adc-3083b076ef83 Estonia, d667ba5c-3cb0-4b98-80bd-e42404255ee8 Portugal, 1feca718-ca22-46ea-907a-acbf265562a2 Netherlands, 8dce9996-88c6-4888-9c35-99864f8082aa Hungary, d8df5775-d0c0-4293-8142-fa7f53102a10 Bulgaria, 9c8e7c2c-82cc-4258-b4a6-debed272ad54 Greece, 19f24432-d6cb-4fcf-ba3c-e0780aae2859 Sweden, 208cb765-5a0e-42f0-8abd-77b0213cb735 Poland, ddc958ce-0b65-4371-a423-3c50482c9669 Czechia, 1a625df9-1bf6-4fcd-b94f-482379669085 Croatia, 1601a08d-9dc4-419d-ae60-fdbcd6057b14 Germany, 9c66caed-3e8e-44b2-be61-b66f9abd30a5 Denmark, cc3e8f34-521b-43bc-8b69-45477b0e3601 Germany, 676cb613-fc62-4fa4-801e-c28808fd3bf7 Poland, 30e14bf0-73a8-48e5-b539-310d3a8f9c3a Germany, 26d80ad8-0f65-43a3-9385-2aa6fa6cd451 Norway, 27fa38e9-6044-4fcf-ba6a-96edbe9f3f87 Belgium, fbfe51c2-d524-4fdd-99ca-6635d7c39fee Italy |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 800 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 330 mm |
| Product Net Weight | 94.97 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 1310 mm |
| Package Level 1 Height | 425 mm |
| Package Level 1 Gross Weight | 100 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 8pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 29 W, Total 87 W |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 1250 A, (500 V) 1250 A, (690 V) 1250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A, (690 V) 1250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A, (500 V) 1250 A, (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW, (500 V) 900 kW, (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA, for 0.2 s 50 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT1250KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
