Артикул: 1SCA022750R1780
· Производитель: ABB
· EAN: 6417019243702
1SCA022750R1780
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
433 825.30 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
520 923.22 ₽
срок ≈1 мес. (38 дн.)

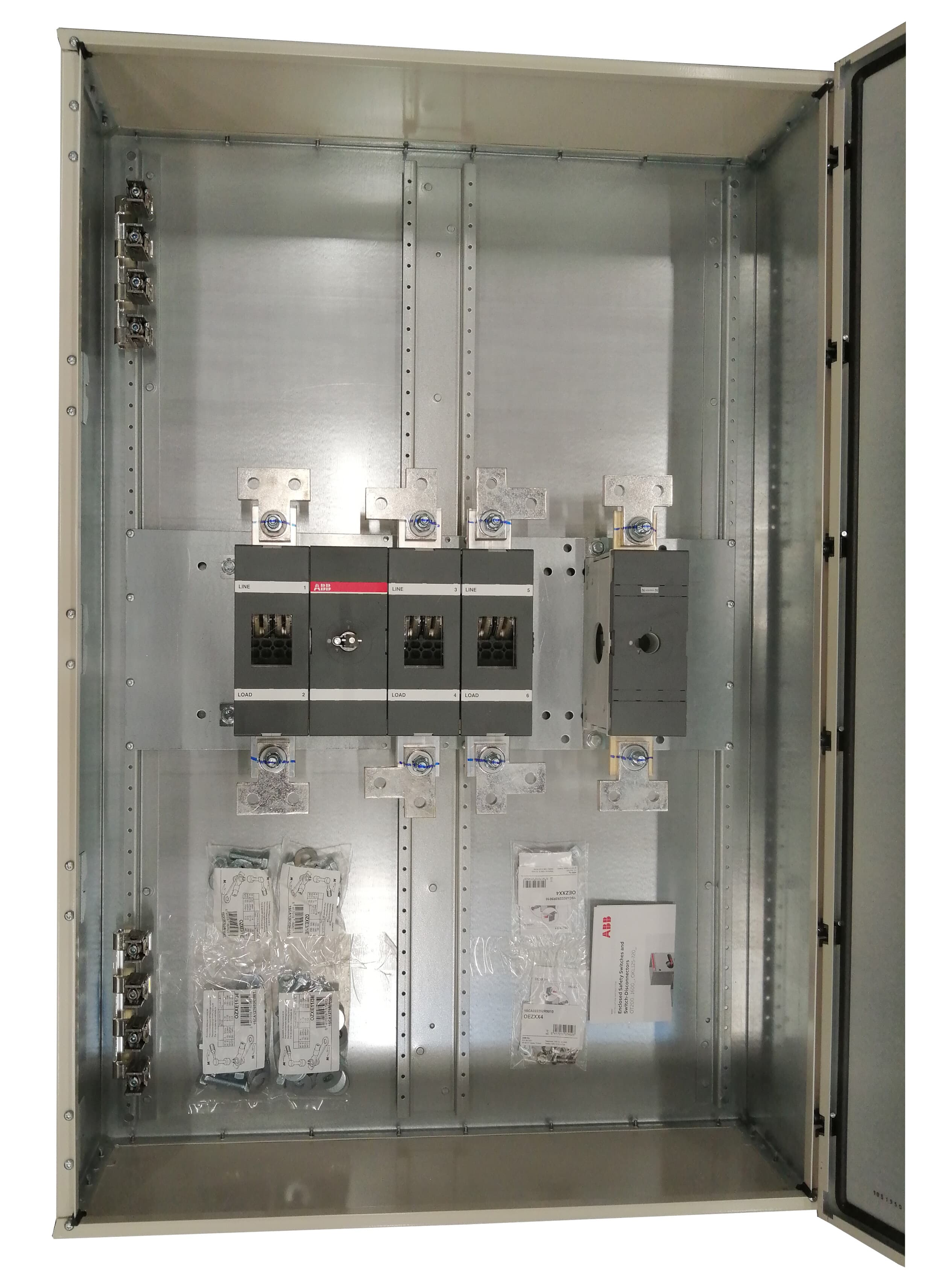

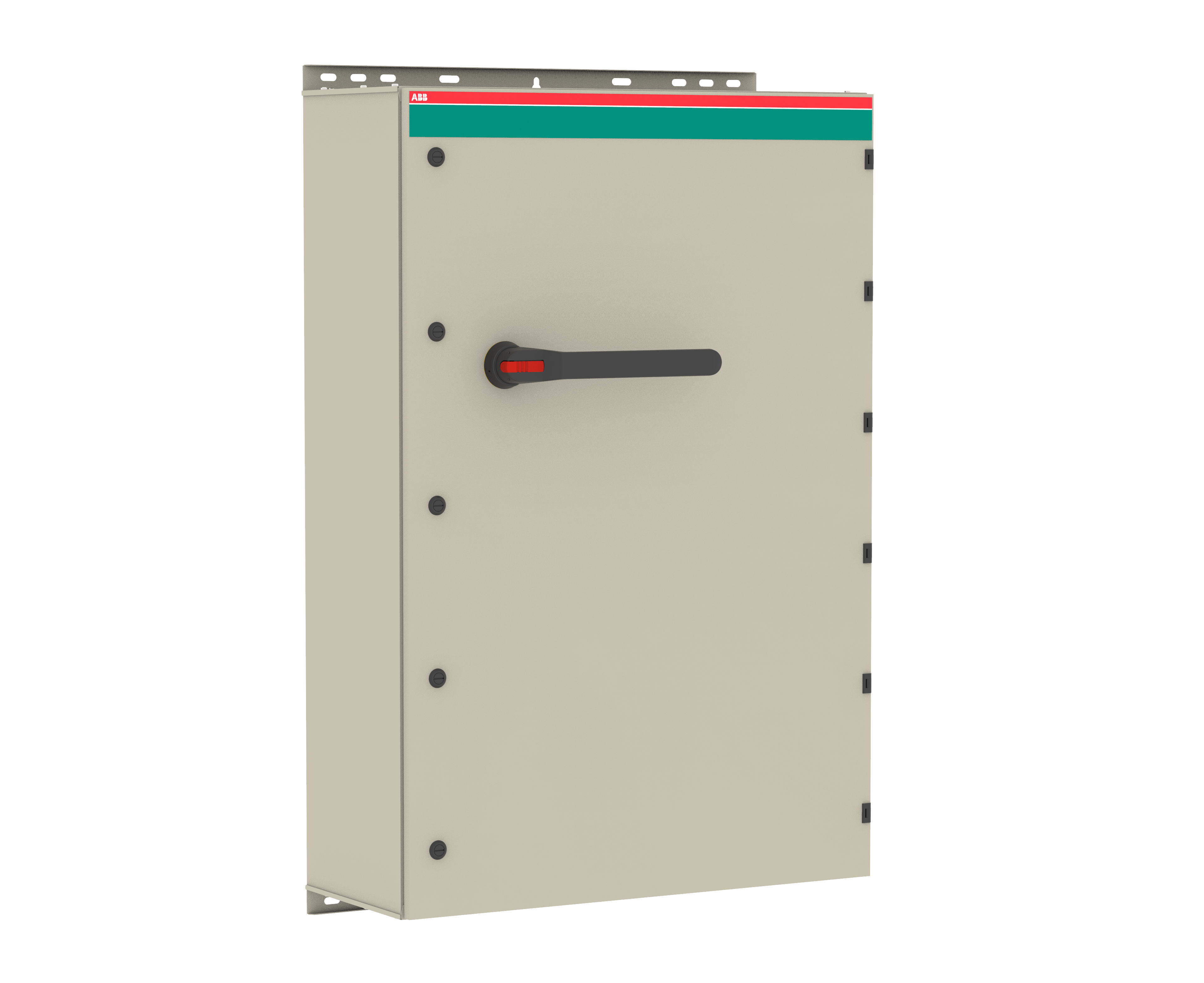

Encl. Switch Disconnector, 3-p. 415V AC23 1000A, 560kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 433 825.30 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 520 923.22 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 558 945.21 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 575 045.11 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 579 466.34 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 617 017.44 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 639 670.63 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 668 090.96 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 737 503.00 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 858 567.74 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f2b3765e-5ac9-442a-afba-b5b11b8e7207 Finland |
| Simplified SCIP | d8fc24b0-b181-4ffe-a620-9820cbe97ad9 Germany, 7620c9f2-f539-4c63-97ec-d72866f21883 Germany, ce044fc5-8c57-4227-b68d-e6ab6a61f41e Denmark, 21655f8b-a435-4be4-8e37-5aa2e8784087 Italy, 4d238019-fc12-4142-b326-e73a059147b0 Spain, f0849658-3ddf-473c-a1a9-363019ad4036 Belgium, d33a21cc-0aa6-4577-bfcf-b7b92b12f775 Sweden, f8e921a3-d0fe-4900-88eb-f89aff02de38 France, 638cfa81-282f-4b9a-8624-6c7c51a8ff11 Germany, c45d351f-ba46-498e-8c1c-265c0d4cccd4 Hungary, d03c033f-2c8f-41a7-9551-9afef33d98e3 Bulgaria, f75adaed-a30e-41b9-afcf-19cc49d6b31b Estonia, 51bf354b-4ef7-4b78-a0a5-bd48dc2bcdea Portugal, 08a8e7a9-df72-4110-ac66-f57a0debf2a1 Netherlands, 206810ab-00ce-466e-8eca-93658933ec2e Greece, 87566218-3fc6-479a-b095-6cc1ab2cd0cb Germany, f6016412-293a-4e83-97c3-d86231c664e6 Hungary, 0eb1706f-a828-48f6-b30b-752fe10963f5 France, 9f1d6e91-6434-4673-8e98-898628b24595 Poland, 9e5e1148-d6b0-4db0-8687-3905417eb98e Sweden, b3e9e84e-5a7d-42dc-be6a-c13083b7065f Poland, 06ac9b6b-3fae-4051-acb3-cc6cd03b66d5 Czechia, f10347b9-95c5-452a-89a5-c20fc2a7f676 Croatia, 7857d642-4461-47a0-a5fd-a53a215dc9f1 Germany, f0708d7c-4a90-4a44-a199-1ce9d408a3c3 Poland, d9e252d4-8bc3-49e7-8f74-f2b9e8ec6a56 Belgium, ccae81aa-874c-48b5-ad8f-2db598b98f5f Norway |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 800 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 71.43 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 1310 mm |
| Package Level 1 Height | 425 mm |
| Package Level 1 Gross Weight | 76.9 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 8pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 19 W, Total 57 W |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 1000 A, (500 V) 1000 A, (690 V) 1000 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A, (690 V) 1000 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A, (500 V) 1000 A, (690 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW, (500 V) 710 kW, (690 V) 1000 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA, for 0.2 s 50 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT1000KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
