Артикул: 1SCA022750R1600
· Производитель: ABB
· EAN: 6417019243696
1SCA022750R1600
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
188 144.57 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
224 347.15 ₽
срок ≈1 мес. (38 дн.)

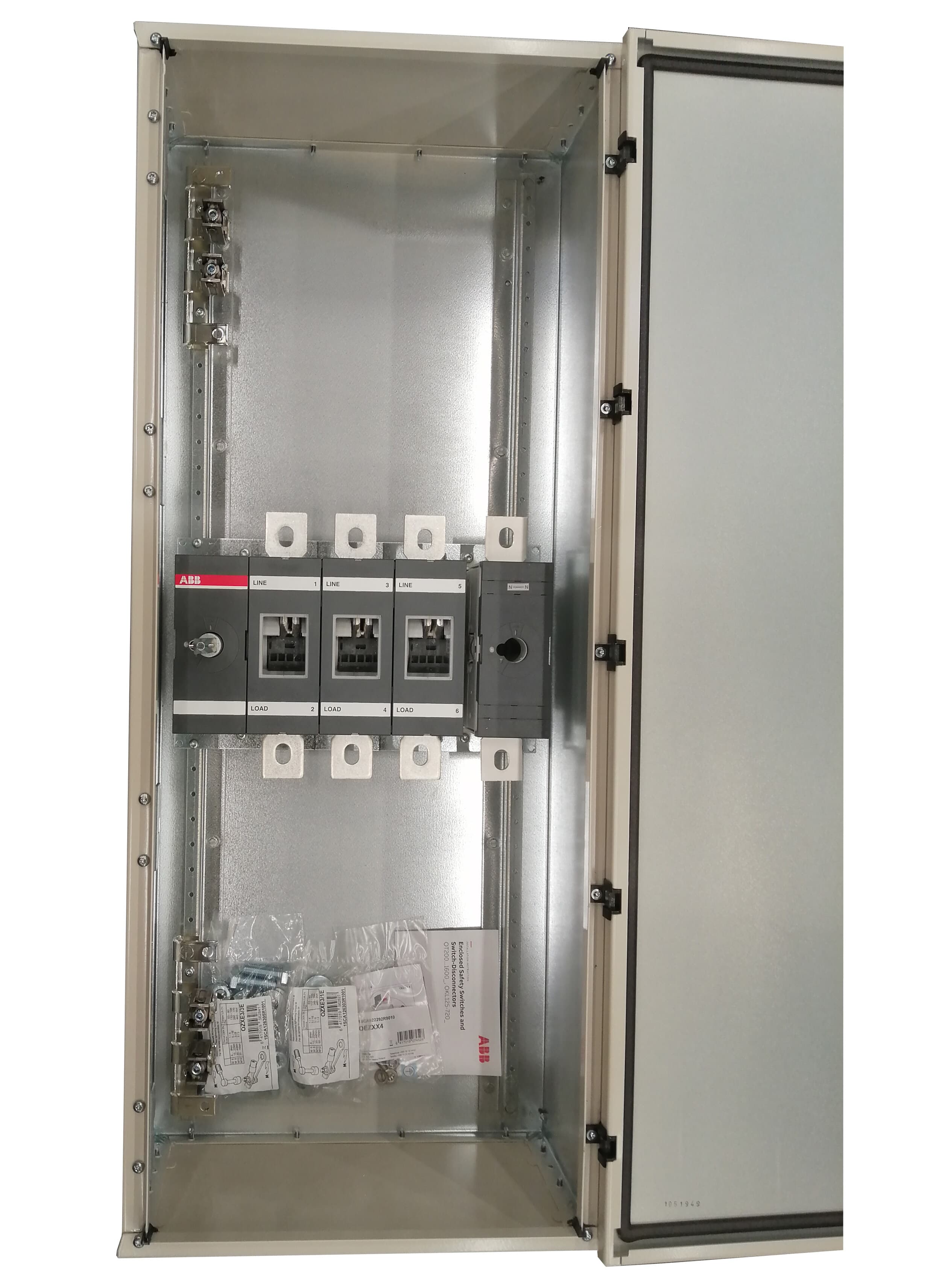

Encl. Switch Disconnector, 3-p. 415V AC23 720A, 400kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 188 144.57 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 224 347.15 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 236 522.82 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 247 655.95 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 249 833.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 261 096.62 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 275 790.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 289 742.63 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 319 845.76 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 370 097.05 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 60e9b3f7-9330-43b1-b035-e227507f1894 Finland |
| Simplified SCIP | 641f63c5-a8e4-4a30-b35d-5e691d259644 Belgium, d569d8b4-7e58-43a0-a241-3a1bcf036c0b Spain, 3f46caf2-20cb-49f4-90ad-ed47dccd9916 Sweden, 898794a6-d428-4392-81d5-c65c9ec87586 France, a15c85d2-8c22-4710-9e8e-f51c6031e600 Germany, 30f8c77d-f507-45e5-ae78-905a2a046f2e Germany, dbcfd055-f7e7-4349-a7ca-4e04c9946874 Sweden, 9e2043ad-a4fc-408e-97b6-012768a14fa1 Hungary, 60285041-7488-4262-ba6e-a722a6c5b66c Poland, 42efb7c8-120e-4a55-bfe4-41ccfce4ac5c Netherlands, ea635c38-1ec0-4199-b6f8-d2b24be8f7de Estonia, 90ec75b1-999a-4da6-984d-fd5201a412ee Greece, 3bcf2a75-9470-4bc5-ba0b-52fd6e4497a2 Portugal, 11b6344e-0c3b-4ad0-a1e1-8b0a6dfd26ea Hungary, 6ac82900-1f25-4183-bcd5-5cd73d097fed Bulgaria, 8b4ca7b6-b290-4d98-9026-2d2b386466e6 France, 1535ee9c-83c0-473a-9c9f-416982b27e97 Croatia, 922d3166-25e2-4eb0-8243-af9443749073 Poland, 26e476c8-de31-4fb7-a444-591e00b3fed8 Czechia, 5c071d76-6817-45bd-8b31-1607da90d55f Poland, e4426354-3111-49f1-96a7-e10bf1f7f0d5 Germany, 5c6bb0bf-1868-4bae-965a-c263a08cc580 Norway, 2f4df4ec-bc73-40f8-8b6e-01c8b477d92c Belgium, 3f5fe45d-61f1-42f3-9db4-90404c89a122 Germany, 3b851120-75a8-4967-8874-3c7d57a8e709 Germany, ddd6be9f-7d50-46eb-a085-93b818c836be Denmark, 03a467f0-0b2a-47d9-b510-97939efefd7e Italy |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 30.55 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 33 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 40 W, Total 120 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Impulse Withstand Voltage (Uimp) | 20 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 720 A, (500 V) 720 A, (690 V) 720 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A, (690 V) 720 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A, (500 V) 720 A, (690 V) 720 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW, (500 V) 500 kW, (690 V) 710 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA, for 0.2 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT800KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
