Артикул: 1SCA022750R1510
· Производитель: ABB
· EAN: 6417019243689
1SCA022750R1510
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
161 037.86 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
210 265.85 ₽
срок ≈1 мес. (38 дн.)

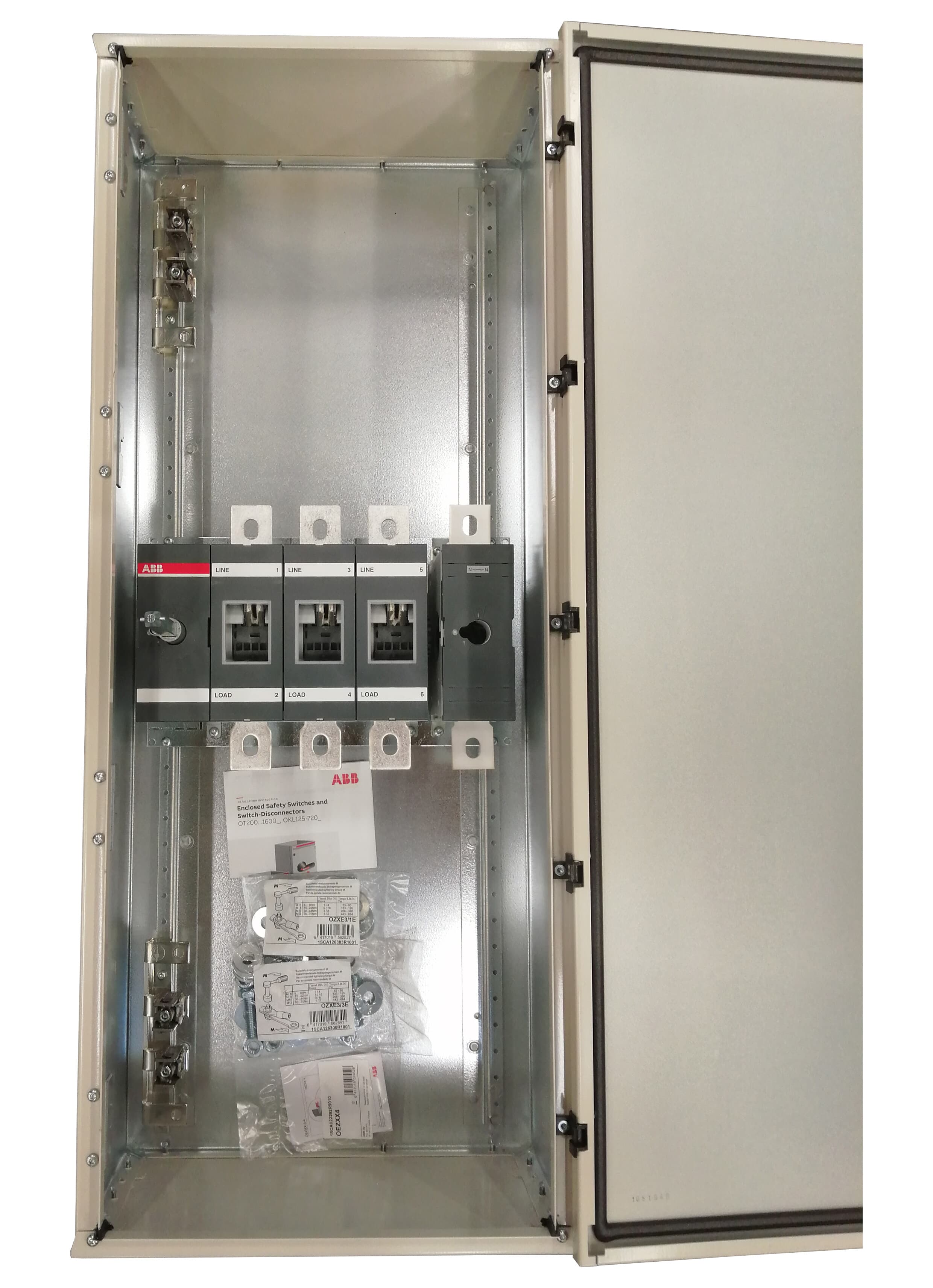

Encl. Switch Disconnector, 3-p. 415V AC23 570A, 315kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 161 037.86 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 210 265.85 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 219 237.69 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 232 111.65 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 236 352.50 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 242 015.63 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 247 998.30 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 260 908.61 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 273 764.36 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 345 641.49 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4b3880ac-2a6e-405e-ac97-4de08c4bf3ba Finland |
| Simplified SCIP | 207f4ec8-60a5-4572-83e7-b38c5242874a Hungary, d339f5e8-aa19-47fd-8ce5-6faf1543eab5 Greece, d4269a74-1047-47f0-935a-5a7e3d826ed5 Estonia, 8a35765c-1b38-4b8f-9e27-b0ad6c0396d4 Portugal, caf320b9-5923-48f4-85c9-767c0cc00010 Netherlands, 3779c25a-ca5e-4ace-a1bf-1ecb5fcc1b92 Bulgaria, c31e604f-5f21-44d5-95a6-8f39f9507aa2 Sweden, d700cc2e-56f4-43f5-b3a5-ccddc477c8ab Poland, 3dae384b-da09-41a4-9c61-6c9a2681062f Hungary, 08c23d95-9afe-4ec9-8744-cf31954da77c Germany, 1ae19e55-795d-4b0c-9c74-c1b8ade8ae4d Belgium, c2b1e432-c6e6-4dae-9b62-4bf888b3c8c2 Sweden, dc914f91-b0ce-45dc-b4fb-6968958a61a0 Spain, 0882626c-86b5-42b7-a3de-085b98365218 Germany, cfeda6c0-3039-4c81-ac2f-3a0731174f6d France, b466a572-b364-46b1-9bbb-8a491d90ecd9 Germany, e9ba3853-cede-4259-b324-e5dfa02dac5d Germany, 53d1a772-fa0b-4a13-a66a-b2f2e32582eb Denmark, 9e028b19-6e50-45ef-8975-54a28125c562 Belgium, 60720739-f2b2-40fc-b627-2b88e523401e Norway, 90e8818d-a8c4-4f3b-a1bd-f25135906972 Poland, fc4fece6-a8d9-4944-8c83-b49d8f02c4dc Czechia, 9f6afc75-0ffa-487f-be38-633a233da43a Poland, df9b5e70-75b2-4cea-a02b-04f9e18a724d Germany, bdb7482f-c581-4fe4-92dc-348b13929276 Croatia, 2f48219e-d9bc-40b9-93af-1bf41dff08a5 France, 7210f8c9-3617-44ff-90ea-0309245ec5e5 Italy |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 30.55 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 33 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 25 W, Total 75 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 570 A, (500 V) 570 A, (690 V) 570 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A, (690 V) 570 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A, (500 V) 570 A, (690 V) 570 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW, (500 V) 400 kW, (690 V) 560 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA, for 0.2 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT630KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
