Артикул: 1SCA022729R7720
· Производитель: ABB
· EAN: 6417019236247
1SCA022729R7720
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
43 225.73 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
39 157.43 ₽
срок ≈4 мес. (122 дн.)

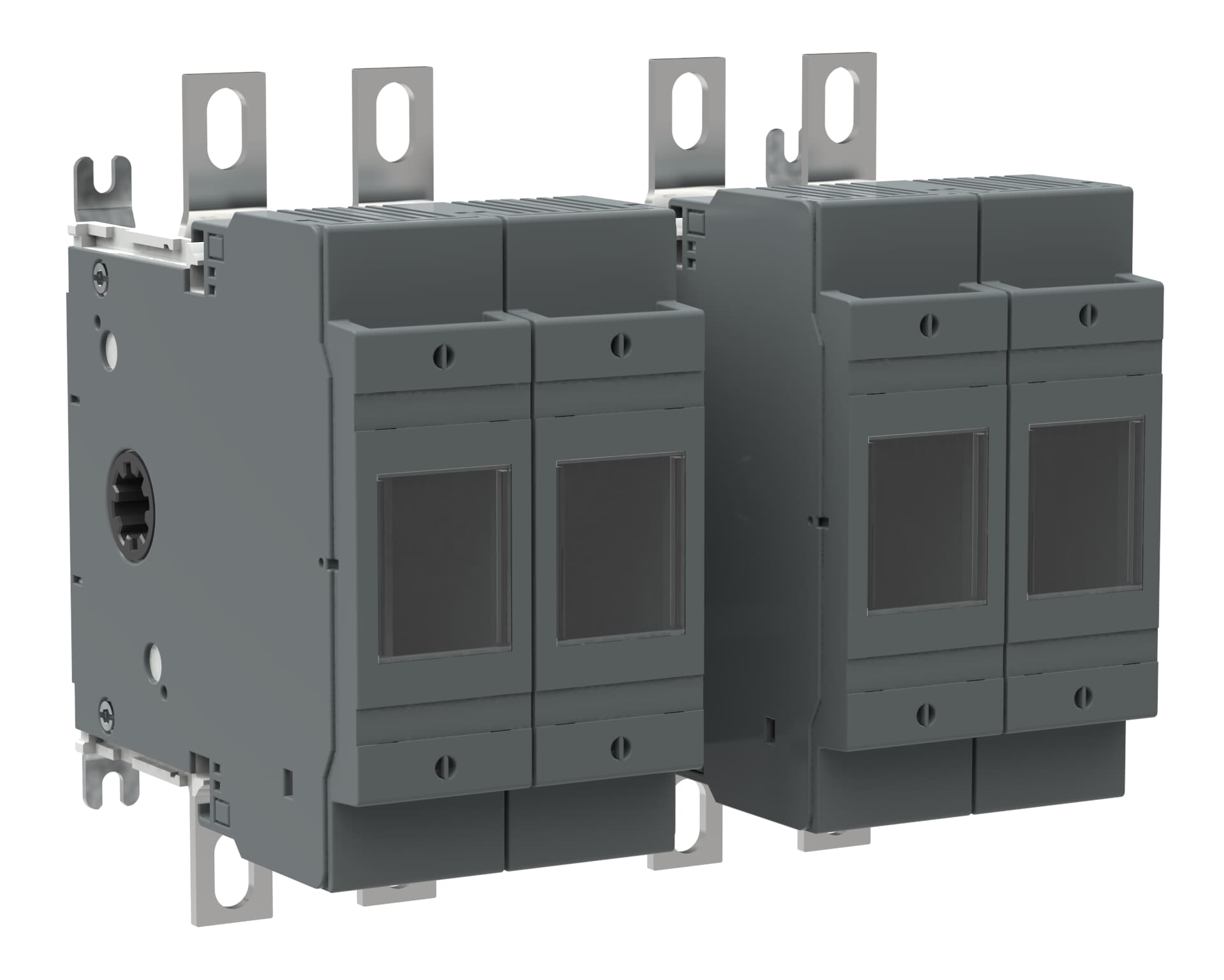

Switch-disconnector fuse, 200A, 4-pole, DIN 0, front operated, switched fusible fourth pole.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 39 157.43 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 43 225.73 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 45 213.28 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 538.52 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 948.42 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 51 373.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 51 826.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 68 954.78 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f310ebf7-8df7-4779-bd16-03753d4616cc Finland |
| Simplified SCIP | e333be08-7d8e-4e0b-a4c1-0b3db55071fd Germany, ef7b4bcd-a3de-46fe-952f-7543c1b47c45 Italy, 0e608def-16d3-409a-863c-273b090ce2ab Germany, 2e8cf1a6-7350-4da5-aaf6-bbb7fb31f1d9 Norway, dc416fa5-180c-419c-9b95-d1f25f69023b Hungary, 07a5cb74-0d4e-4da3-95b2-8ccd5c6e1ce8 Belgium, dd5d5862-076b-4896-a8c8-1bfd72627691 Romania, 9263d8a4-27f8-4a05-a522-816121aa7810 Spain, a8bfd86d-833b-4b4c-9077-2d8aa8a1eeda Czechia, 0cc977b6-214b-4917-8047-1564b5264f10 Germany, 5bedbcb9-a154-4b60-91d8-26ddef364056 Croatia, c4e1a90c-92da-4200-8e89-732c4b9080c3 Hungary, 1e0a8de2-1886-4ef7-988b-cba563cb6051 Germany, 9639e332-8b0c-452f-bec4-fafdb2c80286 Estonia, 5932fed8-bde5-434d-9f83-708432894ef5 Greece, 015133d7-5e2d-4d84-92c3-b190c6730f7d Portugal, 0401ac41-949e-4162-863a-d18331e84cb3 Belgium, 47bad306-b06c-4981-9d70-2cc134fd920d Denmark, dfd72d9b-1b47-4d52-b6b4-e6dc45ca1de4 Sweden, d8035be7-9fe5-4026-83e8-c0a659878906 Poland, 920ab347-671f-4748-bd9a-1b28672ff68c Bulgaria, aa76b5bb-71da-4e92-95a8-3565301d1094 Poland, 18361403-c3dd-4727-bd5a-81f4a298923f Germany, 752e6312-d17b-4855-8f3b-398af0166b9b France, e5a5f3ea-c70a-45c6-bc60-b693b928c9ee Poland, 0f92d060-7a06-4ddf-8f13-9b5d932ef7f7 Netherlands, b1cb87f5-1733-46d1-ba29-90b576f14e61 Sweden, 8ea5b95e-dc12-4a0b-930a-1bef41d3529b France |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 219 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 149 mm |
| Product Net Weight | 3.8 kg, 8.4 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 4.1 kg, 9 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW, (400 V) 110 kW, (415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS200D22F |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
