Артикул: 1SCA022727R8000
· Производитель: ABB
· EAN: 6417019235882
1SCA022727R8000
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
31 878.25 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
28 877.94 ₽
срок ≈1 мес. (38 дн.)

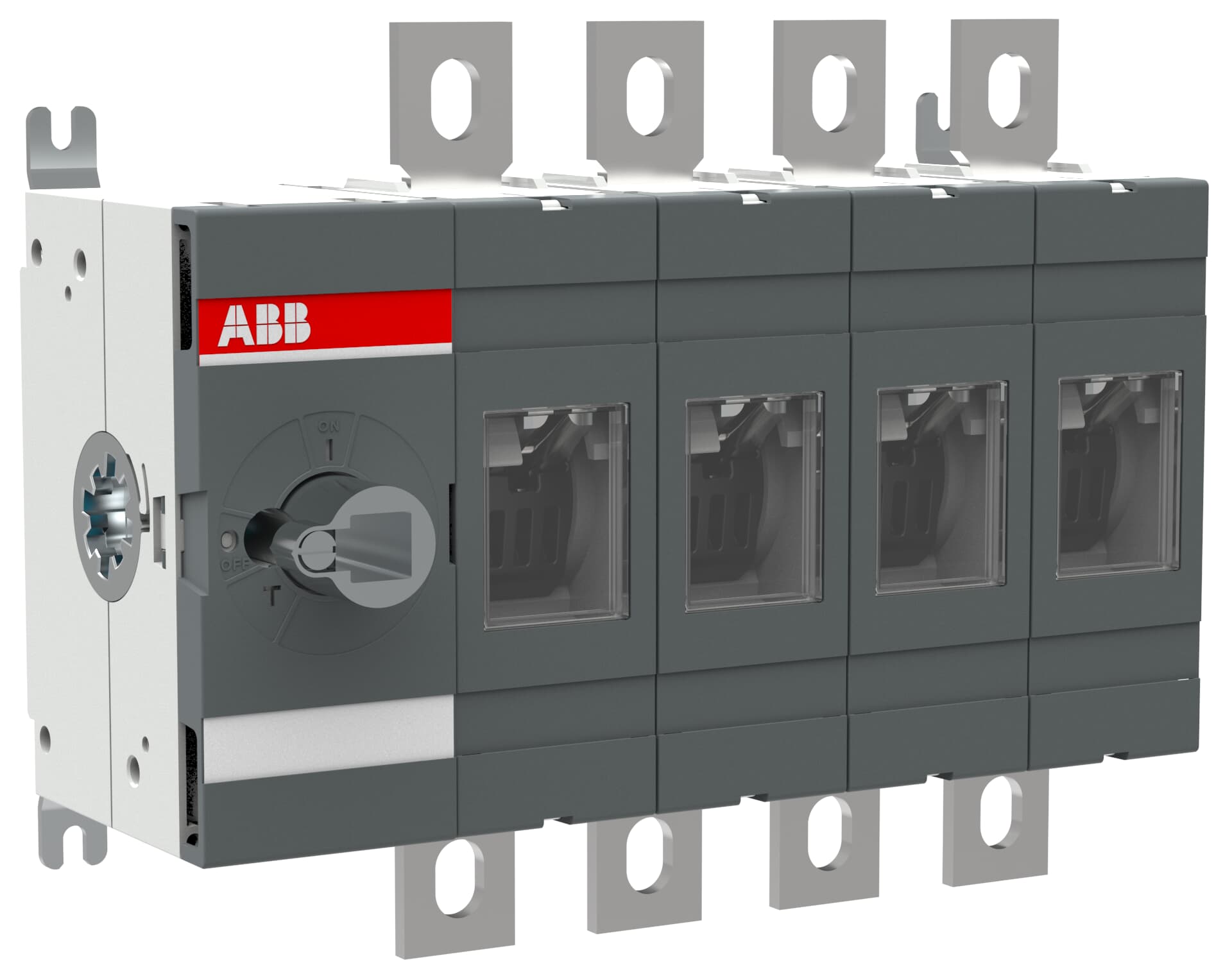

4-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 28 877.94 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 420.94 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 31 878.25 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 33 009.04 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 685.45 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 36 438.55 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 164.82 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 44 471.27 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 60 313.83 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 66 580.20 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 235 mm |
| Product Net Height | 185 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 3.5 kg, 7.7 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm, 8.7 in |
| Package Level 1 Depth / Length | 260 mm, 10.2 in |
| Package Level 1 Height | 155 mm, 6.1 in |
| Package Level 1 Gross Weight | 3.9 kg, 8.5 lb |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Mechanical Durability | 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW, (400 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT400E04 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
