Артикул: 1SCA022727R0010
· Производитель: ABB
· EAN: 6417019235264
1SCA022727R0010
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
40 006.57 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
36 241.25 ₽
срок ≈4 мес. (122 дн.)

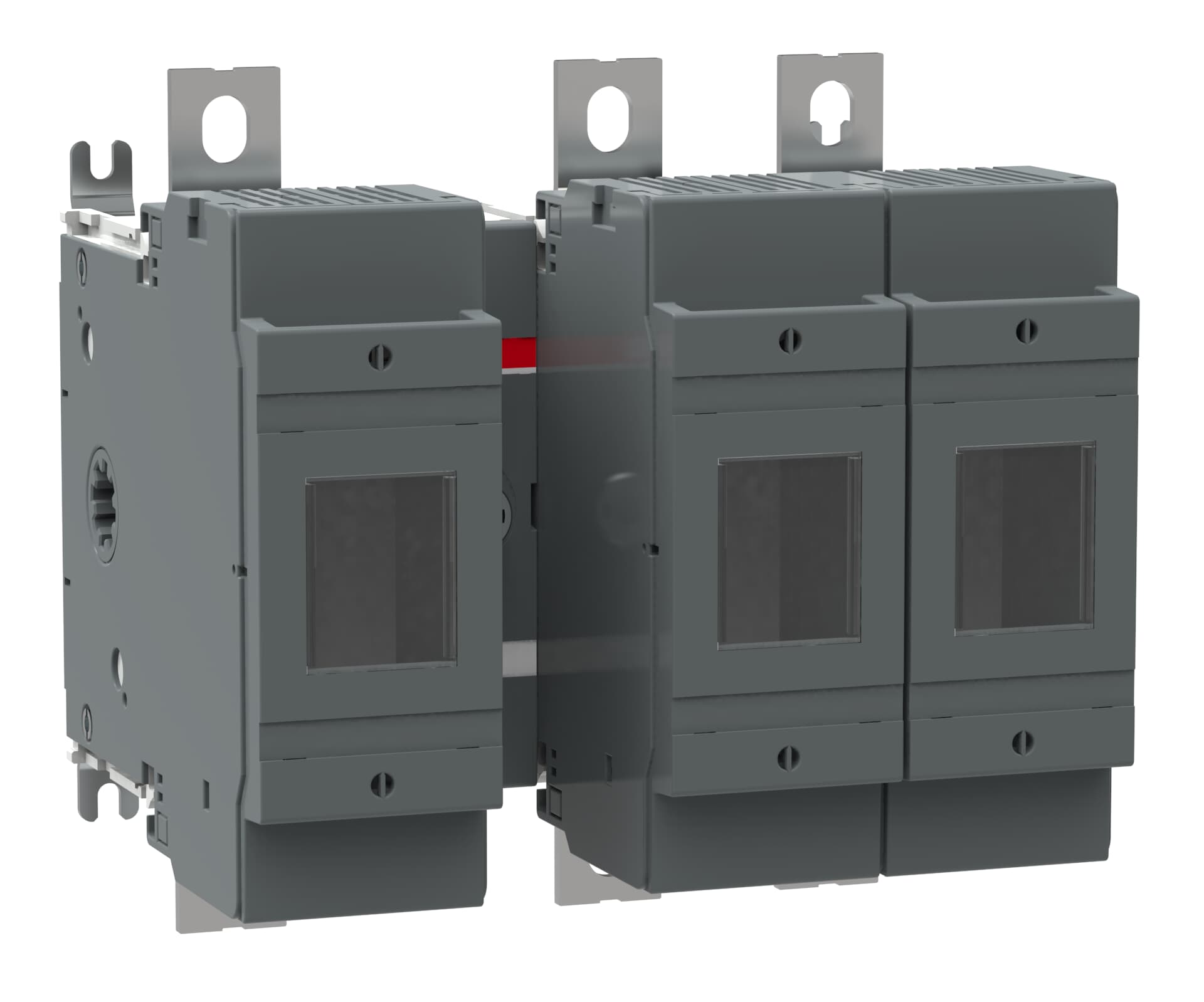

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,0,1,Handle and shaft not included,
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 36 241.25 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 006.57 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 846.90 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 42 055.76 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 711.72 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 43 086.04 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 149.30 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 562.51 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 63 286.04 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 64 765.88 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 71 494.80 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ad9a034e-4508-43a4-afc7-922c5df2f4fe Finland |
| Simplified SCIP | ec186af4-dfc1-49ce-9548-7f473a50cf8d Germany, 55e60a8f-704a-497f-b5ba-20497fd18a5e Greece, 9c00c1fd-d815-4ffc-9d2a-93b29d00638e Germany, 6f4e71e5-a95f-48c4-ae99-b44a3d770c0b Italy, 6aa8e087-c889-41ab-93bb-c26b27c7af9d Hungary, 7919f93c-afdb-4ca4-a1f1-a9b5cb336349 Romania, 4c6f2a92-fa8d-4df4-a588-6f366870219a Spain, 91c4561d-68dc-44aa-9090-1e3daacd7b3e Belgium, 05ad9753-647f-4296-9191-ad17005c07ac Hungary, 0f8b8c83-ff08-4237-97ba-b8beca90fe7d Poland, 4e9f0768-0181-424f-842f-1d8d77c30508 Netherlands, bad24d93-53fb-4619-be2b-48d31f1e5777 Czechia, c61cead7-3472-42fb-84e1-1495aaa7e701 Croatia, cb77c6ab-6110-4453-85d4-a81a873ffdf5 France, b4dffca3-ec15-4cb6-b0d2-9b7ea5101f65 Germany, c8f61262-b058-4fba-9bc7-ffbeb4c44763 France, 5f0dec51-cf81-4824-8847-d628aae9f437 Sweden, c0a639ba-da68-4473-96d6-bf480f621c57 Bulgaria, becb57e1-8cec-4d6d-a30d-9776e0827f01 Poland, 494ae923-7b82-445f-a01e-4fcdcb3b2058 Poland, 421775ca-ff76-497a-bace-eec09f1da9f3 Estonia, 1ef2b118-a890-40b7-b7df-faeffa42a36c Portugal, 9bad71c9-9922-47ff-85fb-4d474ba0df68 Germany, f6b5dec5-2448-4750-8535-c5136f835284 Sweden, 2017f202-2419-4498-884a-059ff47d93fb Germany, 53c9d199-337c-4341-9ba5-bf845d088dc0 Denmark, 5f943686-1b95-4776-9e0f-b846f7e14c59 Belgium, 42354c5d-e81a-4993-8bdb-2d6baed4d857 Norway |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 206 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 3.9 kg, 8.6 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 4.2 kg, 9.2 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Fuse Size | NH0, NH1 |
| Fuse System | DIN |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 17 W, Total 51 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW, (400 V) 140 kW, (415 V) 145 kW, (500 V) 170 kW, (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS250D12 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
