Артикул: 1SCA022715R2240
· Производитель: ABB
· EAN: 6417019229355
1SCA022715R2240
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
32 265.69 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
32 621.10 ₽
срок ≈4 мес. (122 дн.)

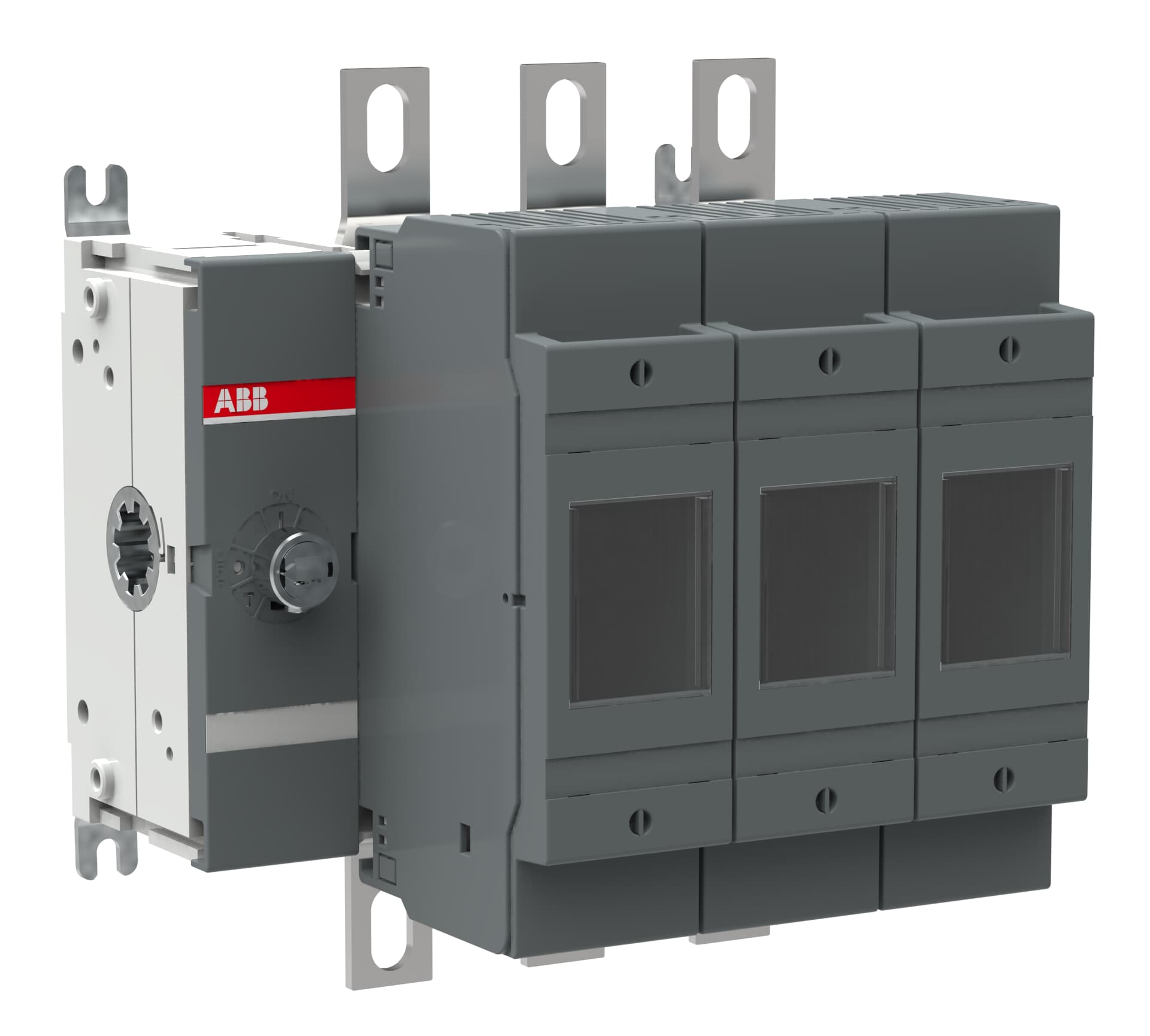

Switch-disconnector fuse, 200A, 3-pole, DIN 0, front operated.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 32 265.69 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 621.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 119.87 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 35 558.09 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 36 010.30 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 664.79 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 252.44 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 689.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 52 680.48 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 54 851.68 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3f992c8e-dbe6-4853-8237-f1750f1912cc Finland |
| Simplified SCIP | 93e39b4c-ab32-44bb-b29e-d1bf5d8be256 Germany, bbd64bf9-1e32-42da-b85b-536911d7d536 Germany, 88606a04-9ab6-4f59-bbac-f646474d7974 Germany, d6246dd5-3fbe-4a8c-b4e2-604f16d6c487 Denmark, 0a711039-6fde-4e53-a5bd-5d02266307cf Belgium, 024d459b-f1d1-4b55-9884-48e51b3fb0fe Norway, 5ae92eba-8c0a-432c-8445-3e4e164349ba Estonia, 27270eb0-78a4-45f2-8525-ef7129a88c1e Hungary, f8c96a43-90c1-479c-84da-e5341a422da7 Netherlands, b4127525-4b9c-47f5-855b-199954c42473 Poland, a614e79c-3180-45f1-9505-0ca1f237d623 Czechia, 2d2b3e83-b726-40de-95cd-ecf6a716bd14 Croatia, fd60f8c3-63ff-4d99-bee4-4076d66d1c8d Greece, b9371428-1461-492e-899d-a7b51cd9fba4 Portugal, 3544e49a-4d3b-4211-af19-d87551fced58 Bulgaria, adb63e51-fffc-4daa-b29c-0df47fb3ba70 Germany, 73db1601-f8b9-4a51-9a5d-d54dcfaf857a Sweden, 3a551ef9-34dd-4bcc-ae5e-5a87cdfa70e5 Poland, 8adbac36-aa78-4aad-b434-2f1facf958ec France, 41c5155f-b1dd-49a7-b315-954ade85ac5e Poland, b19bb3b3-1f51-4d2b-afa8-758a5bd29684 Germany, af740ef6-7b7b-4cdb-8fab-fc70eb7c920b Sweden, a354ea27-9fdb-486b-aacf-3bce32ed0b58 Spain, b86254b2-34ed-4957-91c1-dcec023dc9f4 Romania, 4d5c8ce8-9b82-4766-8259-59347a637a95 Belgium, 427dd35b-4852-4614-8517-51fb072f0017 Hungary, 2a4a1e35-27ef-49be-b471-e4fe9719ac4b France, 0d7ad07c-ecca-4bf8-8d42-d5b95591d535 Italy |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 177 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 149 mm |
| Product Net Weight | 2.8 kg, 6.2 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 3.1 kg, 6.9 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW, (400 V) 110 kW, (415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS200D03 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
