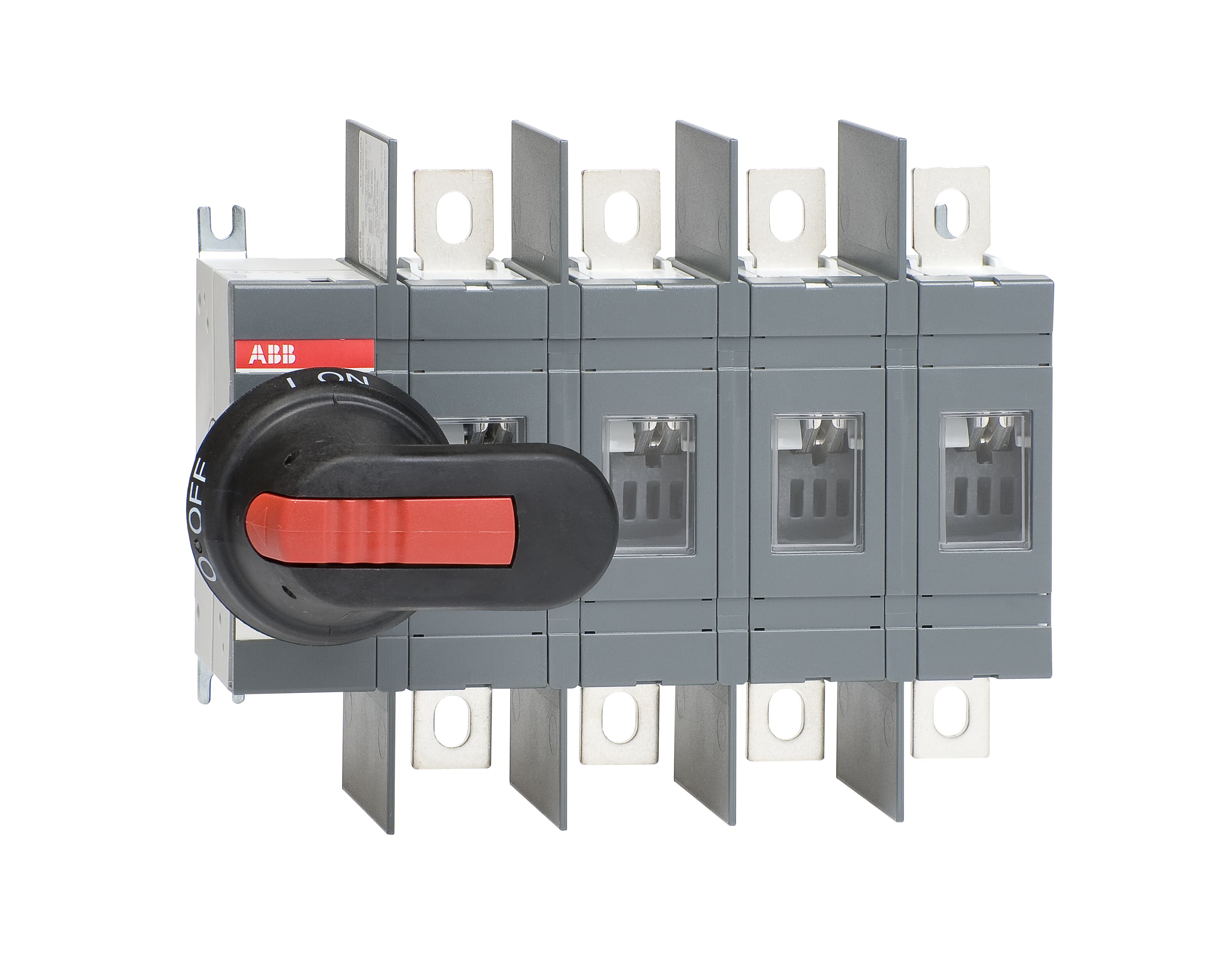

Артикул: 1SCA022710R0610
· Производитель: ABB
· EAN: 6417019225999
1SCA022710R0610
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
27 092.33 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
24 542.46 ₽
срок ≈1 мес. (38 дн.)
Including handle: NEMA 1, 3R, 12, IP65 and shaft
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 24 542.46 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 704.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 092.33 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 28 088.81 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 29 478.60 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 31 007.13 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 37 796.94 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 43 656.80 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 67 231.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 74 216.57 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d149f552-7e4c-4a8a-b7d4-aede68031df3 Finland |
| Simplified SCIP | 34fae3f5-4909-48ae-8ded-93ffcc1042c7 Germany, 862663cd-2985-4469-ad2f-ed53db0ccbeb Germany, 834f1799-ff5f-40e9-b10c-2c0d91c4c34e Sweden, 1474f2e6-5dd7-48e6-990e-22b61338ee85 France, ed15c0cf-642d-484a-8757-d205c9640f57 Sweden, 6442ad62-74a8-4e0a-b36e-dbde890e5812 Poland, a4d56dbb-1f36-4283-b493-38e4c8038c9d Germany, 01dd16d5-7ef9-4bf0-84ee-2acfc7f4aab4 Portugal, 118e8282-4d4a-4214-88ba-759811336f92 Estonia, f36b882f-1ccf-46ec-a583-f036b488537c Bulgaria, d9207b8b-3f3c-4828-a4c9-2fbf9e646512 Greece, b66ebac5-f11e-4114-9574-b603ee77034d Norway, 25bdbfb3-b89f-4825-b87d-f10b6eb85ebe Belgium, 60c9924d-cf63-49a2-9e1b-d4e0ce7aa5db Poland, 03e05347-2228-4c81-a013-e236b7ef6019 Spain, 726f6c35-4c1d-4a0e-92b4-78241eea2d04 Belgium, 8895352f-9b53-43c5-8dd1-fdf0a51e8c02 France, ac5267a4-8f3c-4701-a505-58bbaffdb6eb Hungary, ab615ba1-a839-4394-a464-1f94d4efce4c Czechia, 06eff502-d653-4296-98de-a0b70ddc45e2 Croatia, dbedb1a3-b178-4713-8d24-846655503219 Denmark, d84efa4a-002c-4266-a5b8-a3889c7c7708 Poland, ec038ffd-00ed-4a0f-800d-b50a4c66c3c2 Italy, e2a7e3d6-41e9-4a1a-aa16-613a48975f25 Netherlands, 90dd216e-df80-4e6e-860c-c20616f287ed Hungary, a36e9a36-4d0f-4ce7-aa94-82921b7ee5c7 Germany, 7a478751-8ed6-4faf-ae5f-05fdf31abcd5 Germany |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 212.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.1 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm, 7.5 in |
| Package Level 1 Depth / Length | 290 mm, 11.4 in |
| Package Level 1 Height | 110 mm, 4.3 in |
| Package Level 1 Gross Weight | 2.2 kg, 4.9 lb |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A, (380 ... 415 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp, (acc. to UL 208 V) 60 Hp, (acc. to UL 240 V) 75 Hp, (acc. to UL 480 V) 150 Hp, (acc. to UL 600 V) 200 Hp |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660851 |
| extended_product_type | OT200U04P |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
