Артикул: 1SCA022709R9840
· Производитель: ABB
· EAN: 6417019225913
1SCA022709R9840
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
40 079.69 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
39 958.64 ₽
срок уточняется

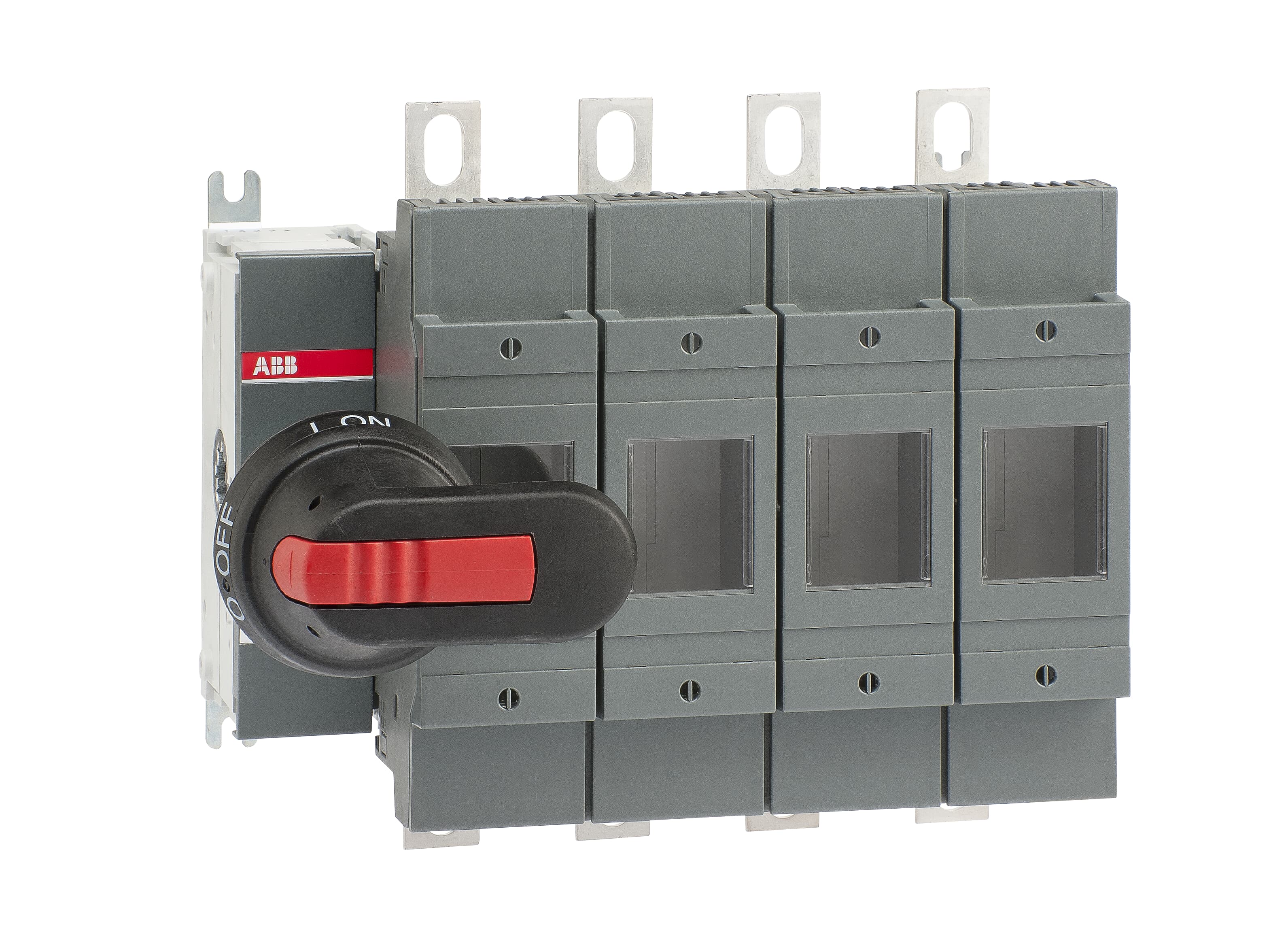

Fusible disconnect switch, 200A, 4-pole, class J, front operated, switched non-fusible fourth pole, handle and shaft included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 39 958.64 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 40 079.69 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 57 430.39 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60 903.69 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 63 397.18 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 68 135.47 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 69 248.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 76 443.03 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 118 538.83 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 130 854.56 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 98415963-61fc-4d12-b060-a6e70a787156 Finland |
| Simplified SCIP | f59ab356-d336-4c3e-8f3c-f5c2279ecdcb Hungary, 0fa8b880-048a-44d4-952f-21b9a91cb486 Belgium, 026b5fc0-4713-4048-acff-9b285dd46515 Spain, e00bb82e-b447-49ac-8795-1678a121d809 France, ba833a04-301d-49a5-8cd2-11d2791ded4d Norway, dbe56ac7-98f7-4c88-bf64-eb6373b43d56 Greece, a10c4b42-2931-4424-970d-2bfa677907d2 Belgium, c8ef9664-5f24-4d22-82c9-072c345e54db Portugal, 49e14385-a946-4d11-8e25-ec7070b9657c Italy, d1850594-aede-42b0-9f9f-ca9e31664c7d Poland, 3e2bf243-63be-46de-9bc7-62fbc8720f70 Poland, d655f961-7f35-4a96-8d3e-4f3f05dffc2d Estonia, d8a7459f-ef2e-498d-a99b-76fe1e2b6561 Hungary, a9197e74-390d-4c4e-8051-fb117f3020dd Sweden, 1224e524-4621-4903-9a9d-d77f50b80985 Netherlands, 2b412458-9a78-402a-b193-3ff1aa0d0218 Poland, 1d6a7fcd-9dd5-4475-a57c-0f9575d5598e Czechia, 75847940-a682-49d3-9566-a2083190e189 Croatia, 4eddbdfe-a9fb-4bf3-8fc2-4f1928cf4ce2 Germany, b8bdd97d-96a1-4e6f-8ed4-83c563d7cf68 Bulgaria, 0119733e-9a9d-48e4-9cf3-04b8fe85aab9 Germany, 3838e10f-a504-4a7a-a976-262d796efebc Sweden, 0c434bf9-ee89-434f-b25a-4e44c0956b6e Germany, bb557542-03e7-43e5-a2ea-dbdae9b6d52b France, bd3cbefd-dd95-4e7b-a388-bbf485cedb3c Germany, 928c4d8a-c590-43b9-aecc-65ad82e0a35a Denmark, 49a59ca8-3c00-4447-8c4d-30cecd8cf93b Germany |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 228 mm |
| Product Net Height | 218 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 4 kg, 8.8 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 4.3 kg, 9.4 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W, Total 24 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW, (400 V) 110 kW, (415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL98, IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp, (acc. to UL 480 V) 125 Hp, (acc. to UL 600 V) 150 Hp |
| Tightening Torque UL/CSA | Wire-Clamp 200 in·lb, Cable Lug 72 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS200J04N2P |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
