Артикул: 1SCA022602R0800
· Производитель: ABB
· EAN: 6417019195179
1SCA022602R0800
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
156 073.39 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
176 297.36 ₽
срок ≈1 мес. (38 дн.)

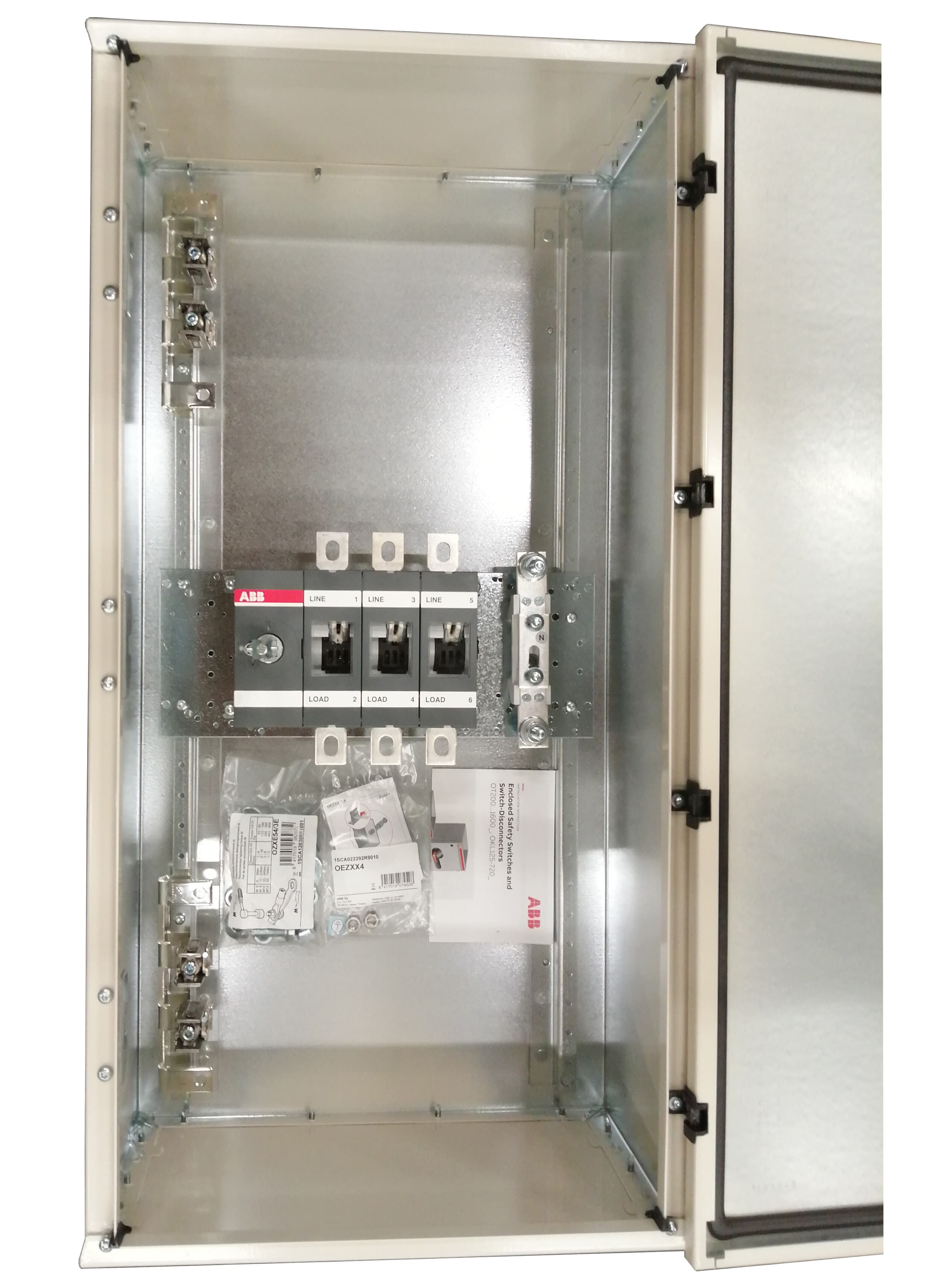

Encl. Switch Disconnector, 3-p. 415V AC23 400A, 230kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 156 073.39 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 176 297.36 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 183 821.52 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 194 613.97 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 202 361.31 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 202 919.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 223 385.87 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 240 353.03 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 265 324.77 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 299 702.88 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 62d89871-d630-4d14-8d1c-4eb9e97608dd Finland |
| Simplified SCIP | 827a44e3-9d70-422c-9118-cd461d8986b1 France, 2d4119a8-46ed-4a12-b35a-d91f9828358f Germany, 8b97e1fd-7624-4f02-91fa-5ece442bce2b Spain, 889b7a6b-59ed-4fb8-8c04-06cf2a1a6909 Sweden, d83db6f3-ccc3-4acc-adb2-4b611d426e09 Belgium, c1e29e77-17dc-4346-9d4a-1e34b34aea49 Germany, bdf46f85-2cd6-4938-b94d-ad2ffcbfe022 Hungary, 486fdf09-076b-4433-8227-59cf2975d2b7 France, 87b7042f-419d-43e4-9fa0-fc12308784e3 Poland, c0f95c71-a64d-4fdc-b9a0-73dacd8085d1 Sweden, a93c8bb7-fd3e-4709-a7a7-77818291fbe7 Bulgaria, f5e1f9e3-6b95-4689-aaf5-104dcd1cd365 Netherlands, 4201bcfe-7def-4eb5-9b1a-dd38c62cc1f8 Portugal, c164cf47-cb2b-4512-ad92-6cb8b2dddf5d Estonia, 21b95932-ec40-4d14-a72e-87d1a433fd37 Greece, 1f3a1175-c1fd-4b12-bc2d-95f770c1bd8a Hungary, 033b9674-9e96-411b-a2a6-ab4e263faeb1 Poland, 068afe3b-89eb-4070-932a-8ab804061d01 Germany, b9e70722-b67b-4246-8d11-7ce7f99e1aa6 Norway, 0e908a9f-846f-4f7b-8c5d-b6633b71a379 Belgium, 838abd89-db25-4d0b-89c0-9b39de5f87e4 Denmark, 61d3a68a-ccc6-4619-aa05-edc2a9cdaecb Germany, 98847ab5-1232-4bcc-b6b7-6bfabdc2a9a8 Croatia, 4ddfe4b0-109a-4524-a998-69e16149c27c Germany, c1035984-22d9-4be6-a94d-e1a6d02db13f Poland, c1eadc1c-a4a6-4c25-93b4-955b505d6f10 Czechia, b4103af1-cfd3-474f-ba42-9d86a695db64 Italy |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 22.45 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 24.6 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm, Screw Clamp / PE Terminal 4pc 25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 10 W, Total 30 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Impulse Withstand Voltage (Uimp) | 15 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA, for 0.2 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT400DLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
