Артикул: 1SCA022602R0710
· Производитель: ABB
· EAN: 6417019195162
1SCA022602R0710
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
90 269.55 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
116 527.98 ₽
срок ≈1 мес. (38 дн.)

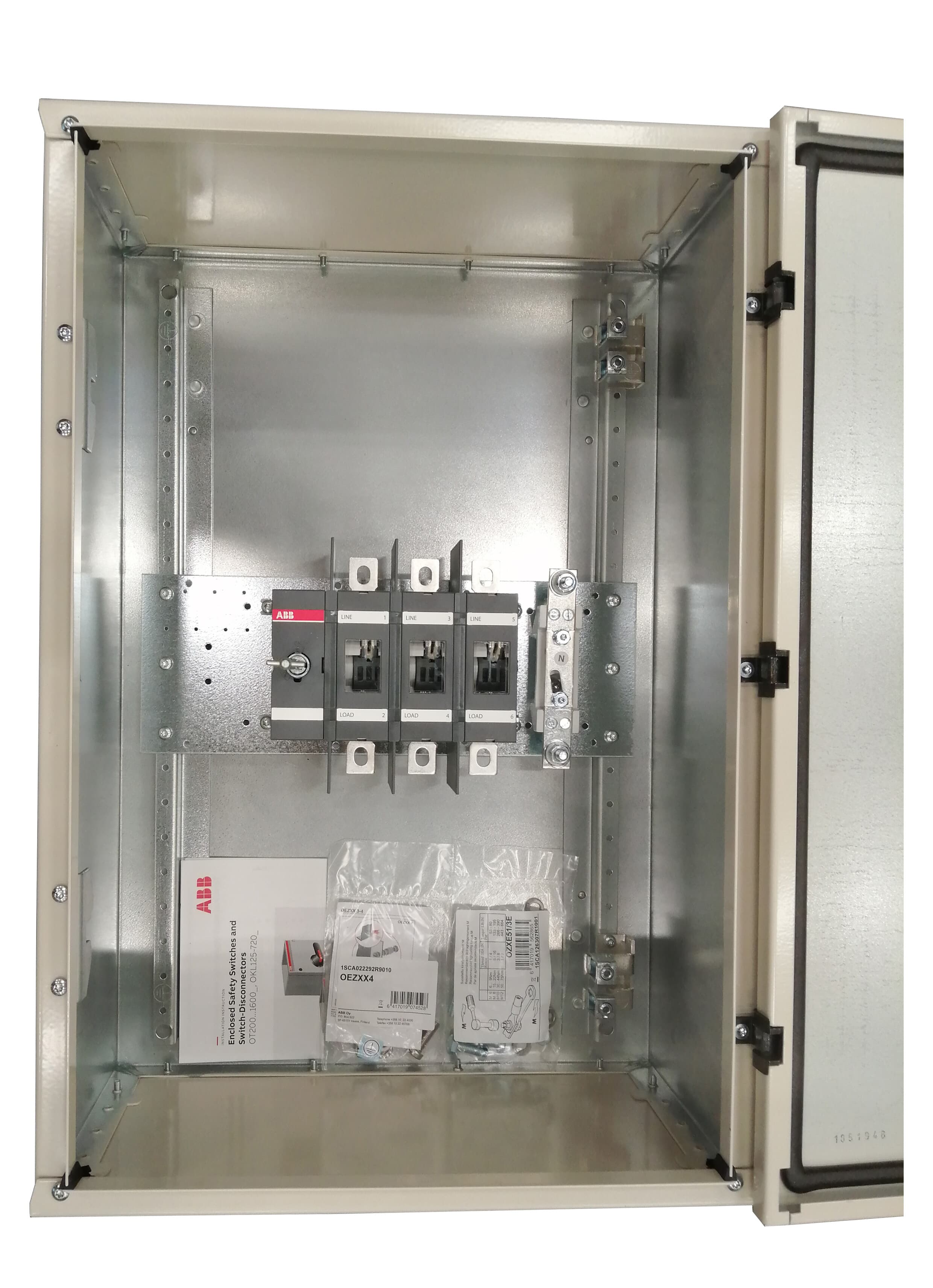

Encl. Switch Disconnector, 3-p. 415V AC23 250A, 110kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 90 269.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 116 527.98 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 124 795.85 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 126 790.43 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 128 634.78 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 137 761.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 139 015.11 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 139 963.46 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 153 458.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 179 449.95 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | bcc8b84f-d36c-4221-9d0c-d2f2916a7838 Finland |
| Simplified SCIP | 10b3ed92-b349-4c22-a2ad-85b9a7548b74 Germany, 820b8909-7de9-4b98-a3e4-1353aa22b8b2 Germany, 60d767d3-795e-45a6-9405-0864e7067e9b Germany, b19ed835-4e07-4733-952c-85e30246db49 Czechia, daa8761b-214e-4839-adda-27ba925fe3f5 Croatia, c7f88f37-a37c-488f-bcbd-81ee51539220 Spain, bde0235f-78a7-4bbf-8eb2-c69b27e06266 Hungary, 58ba43e7-74b3-4319-8cd7-1041e9270c90 Belgium, 4188ba47-d479-498e-a13d-e1c344207c57 Poland, a06b10d9-f83e-4e8b-85e9-83af4ab2e64d Sweden, 255e9dee-d0be-41cb-8feb-8d4d2bb3ce07 Italy, f5ee481a-988a-4277-bcbf-7c9870e6e588 Sweden, db8d5efc-0743-4e06-9dbe-035960fc4872 France, b929ded6-3635-4bbb-af17-f30c7e76df27 Germany, ecd6dc35-d5bf-4285-a378-0034bfd708f4 Germany, bc0a8fe7-a0a2-49e1-9065-f98ce2e1be0f France, 24273e66-79fd-4f54-81cf-d280f6862f07 Hungary, 35601eeb-1604-4137-9790-9159c8949bc5 Portugal, dfe1d377-5586-4af7-8c9d-4471a5647295 Greece, 5d5a6ebb-a120-47a2-9f00-ef99d57bc0f2 Bulgaria, 5f1179e5-bd36-4fe0-9dc5-5d6aef4075fb Poland, 82afc978-a8dc-4b46-ba50-09f08a12d911 Norway, 3c0b7bd3-c894-4651-9e58-37fdf48b9c53 Belgium, 0038e334-6f0e-489c-8306-f1cc09dd0c00 Estonia, 9812582f-69a9-488c-8ba7-02afe5006a7a Netherlands, d1d3eb72-5d24-4c41-9a5f-1e5a92cabe49 Poland, daf7991b-e618-4b4d-9580-a132520795a5 Denmark |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.81 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17.5 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W, Total 19.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW, (500 V) 160 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT250KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
