Артикул: 1SCA022602R0630
· Производитель: ABB
· EAN: 6417019195155
1SCA022602R0630
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
90 269.55 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
103 398.54 ₽
срок ≈1 мес. (38 дн.)

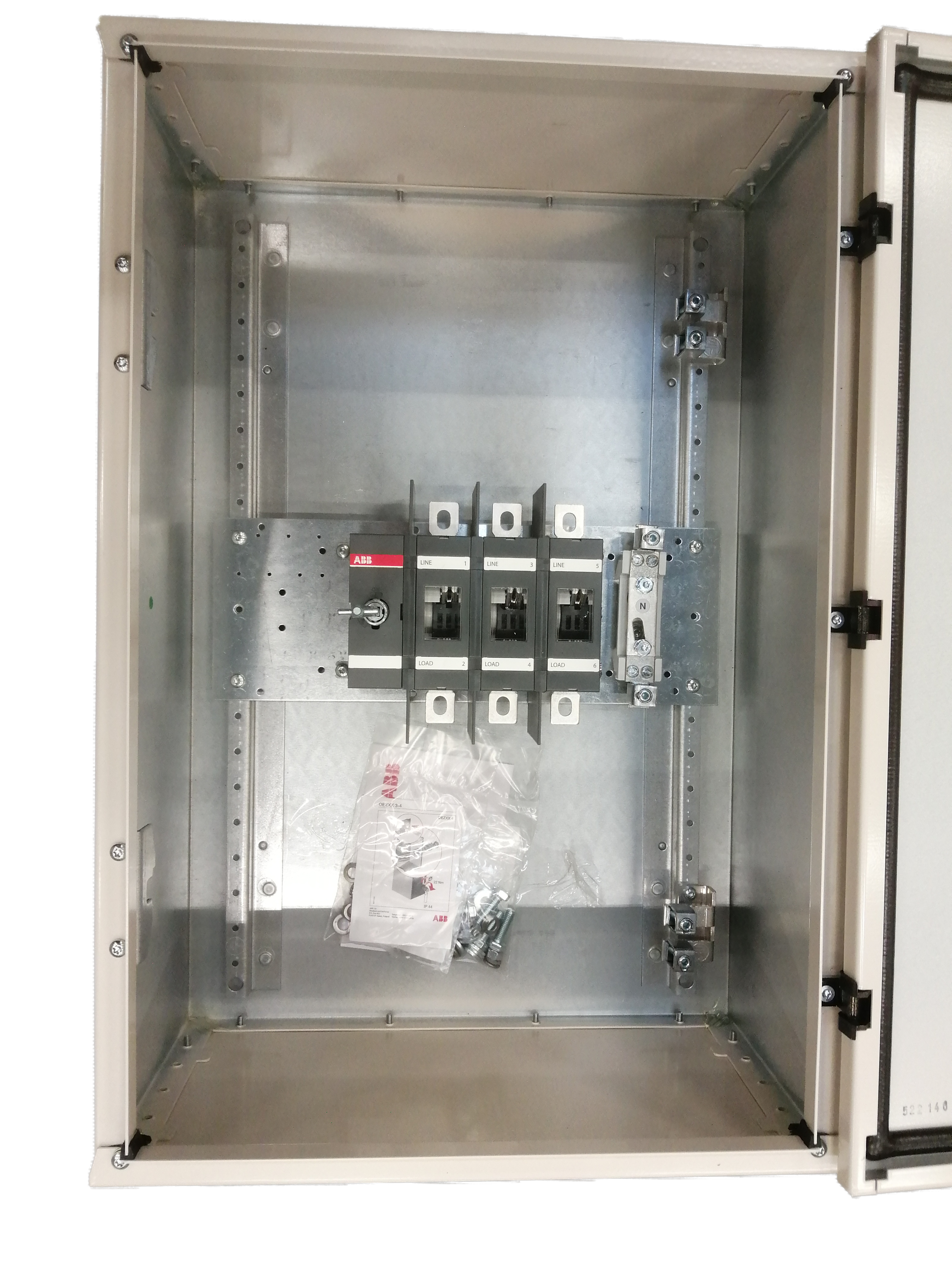

Encl. Switch Disconnector, 3-p. 415V AC23 200A, 110kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 90 269.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 103 398.54 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 112 502.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 114 141.25 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 118 340.89 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 124 191.46 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 130 636.05 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 139 015.11 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 153 458.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 159 234.23 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a825c878-8c1b-4303-9516-05b78fbb5e4d Finland |
| Simplified SCIP | 112c8426-c2c3-473c-ae49-ed2caf9acf1d Germany, 26051be3-618e-4bdf-a704-8df2d3a93fab Bulgaria, 659c0f5b-2b98-4a40-85fe-eb7d99775393 Sweden, be307161-6fb9-4d4f-9c1d-8e2b7b6c2d6c Italy, a0a63681-42cc-4a6f-b7a6-61e77f206dcd France, 94873881-9a27-4424-8dbb-b7586fbcc7ad Netherlands, 6b70fcb8-3349-4dcc-b9a6-732334518763 Portugal, 40b77fce-88ca-4b4e-8d64-3b1d4b3570d8 Greece, 3d23e172-c2f6-46ed-9d7c-c801be447e39 Poland, 6c3d1b8e-6c04-4e23-83dd-dffa9655af4c Norway, 7471afb0-b7a7-4c9f-88ab-6374ea478720 Belgium, c1b7d95f-62b5-464e-ad3b-3a25e1cf6fd1 Poland, 0267fcc2-a750-4478-a1be-7bc7bcf41091 Poland, 4f5e4b97-3e43-4472-bf85-16bbba7c7ee3 Estonia, 4da69bb9-0584-432d-9b0e-6e09a5634cc1 Germany, e6093420-bb64-45a0-b402-a1ef2aa64ecd Germany, 51b7cac4-0414-4942-a8c3-6564329c93cc France, f23fbbb7-2f33-4654-ac95-b4b2be857136 Sweden, b9201bce-a882-4ba1-84a8-2ffbe7724386 Germany, bab663e1-d21f-41b9-a86e-2c1f1800c197 Denmark, 2178fb62-1293-41b1-ab5c-671ac6819725 Germany, 7bd3d22c-63de-45b0-bb78-2c9f4826810d Croatia, 62001f29-195a-459a-9333-077e2850c237 Czechia, 2603dfb7-1fa5-499c-9ef4-0a8d8ee6da8a Hungary, 1e3a13aa-1edc-4af6-949e-9fc958eb1827 Belgium, 895099f0-eb3a-41f7-8f0a-554e7e7b2ac8 Hungary, 89e5de08-706d-497d-a849-06e30019c295 Spain |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.61 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17.3 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 12 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT200KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
