Артикул: 1SCA022572R6010
· Производитель: ABB
· EAN: 6417019185095
1SCA022572R6010
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
87 962.31 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
117 650.17 ₽
срок ≈1 мес. (38 дн.)

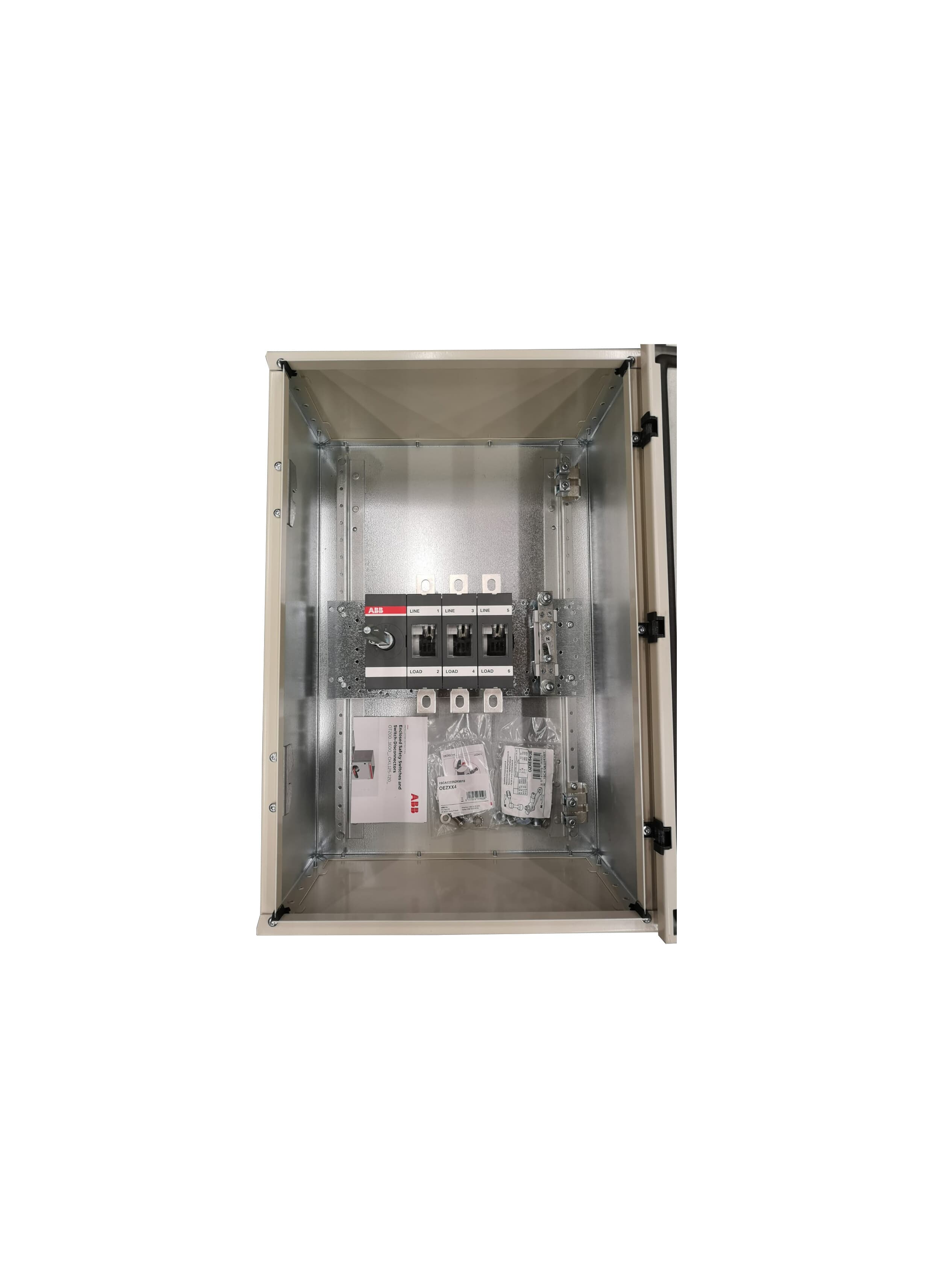

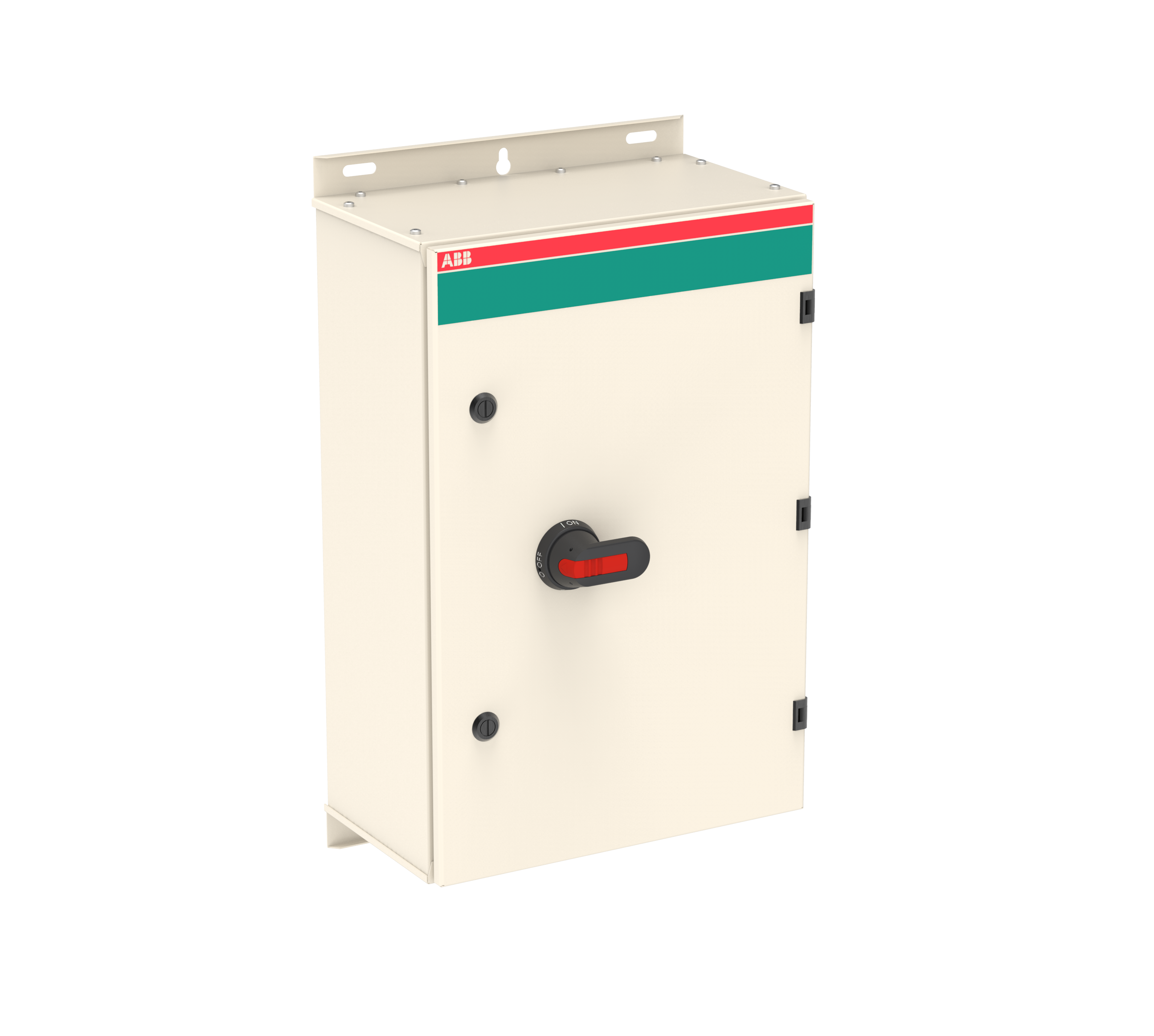

Encl. Switch Disconnector, 3-p. 415V AC23 315A, 180kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 87 962.31 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 100 855.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 117 650.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 122 663.12 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 129 873.56 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 135 407.34 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 138 685.65 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 149 535.92 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 152 766.01 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 155 316.95 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 168 637.80 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 171 453.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 201 284.40 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | dc42d9b5-6704-4ff1-b8c3-80795cdcab30 Finland |
| Simplified SCIP | f9acf90c-354a-4035-a665-37db5d8a507d Croatia, 84591b65-17fd-4a8d-879b-0d0e0544468c Denmark, 3da5d3bd-c09a-4337-be2d-0ae66cf74bda Germany, 880a0a78-f12e-4834-9c23-c2246dd354d1 Italy, b794a939-3d34-4b33-8177-7a218b99b94e Hungary, 2b490ac5-5f82-4e3e-a98e-9920d96361d4 Spain, 3fdd5eef-1214-494f-96dd-2125a753b76d Belgium, 1ace2211-5b63-4870-a45c-47e0ade90070 Germany, fa655866-92cd-42c2-a436-480623814025 Sweden, b59a1427-acf0-4678-9927-0319aaf2f2e0 France, 9c043f93-aa5b-4713-8f16-def764b69761 France, fe611acc-affb-426e-b019-2fb6f0b86554 Germany, 832f5be3-d00b-4b18-9fe7-f532c2c23faf Poland, b3d95822-b2d6-4b03-88ba-8b7ea89b8b50 Sweden, f3187cb7-f309-4ced-815e-e0758c4b10f7 Hungary, 9f22ec40-6797-417c-aadc-15ead3bb4e02 Bulgaria, 3a8d05e8-a707-46eb-ae81-747f64d00fc5 Estonia, 22cf6393-dd2c-4bfd-845f-9cc8675c4407 Portugal, 64ecb8e7-7c3f-4933-b8bf-dc05974f3ebe Netherlands, 2734f590-6783-42ad-960d-2ff41989681a Greece, 63c0722c-9f6b-4724-a008-a5f51a83dddd Germany, 1aa6e5e9-be37-4fbd-b86b-50e14803d625 Germany, dd0c92bb-086d-499b-ae4a-b10520f8d891 Norway, a477a2a7-7095-47f9-bfa9-102d440272c6 Poland, 53732065-12c1-4d2c-aaad-c655ecb9f1a9 Belgium, a7a4d955-e362-46dd-bf4d-6d913e58b9aa Poland, 9818ab40-5977-47f9-be77-25f062ed4b8e Czechia |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 18.61 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 20.3 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm, Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W, Total 19.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 180 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA, for 0.2 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT315KLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
