Артикул: 1SCA022530R4450
· Производитель: ABB
· EAN: 6417019168760
1SCA022530R4450
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
89 278.87 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
83 102.61 ₽
срок ≈4 мес. (122 дн.)

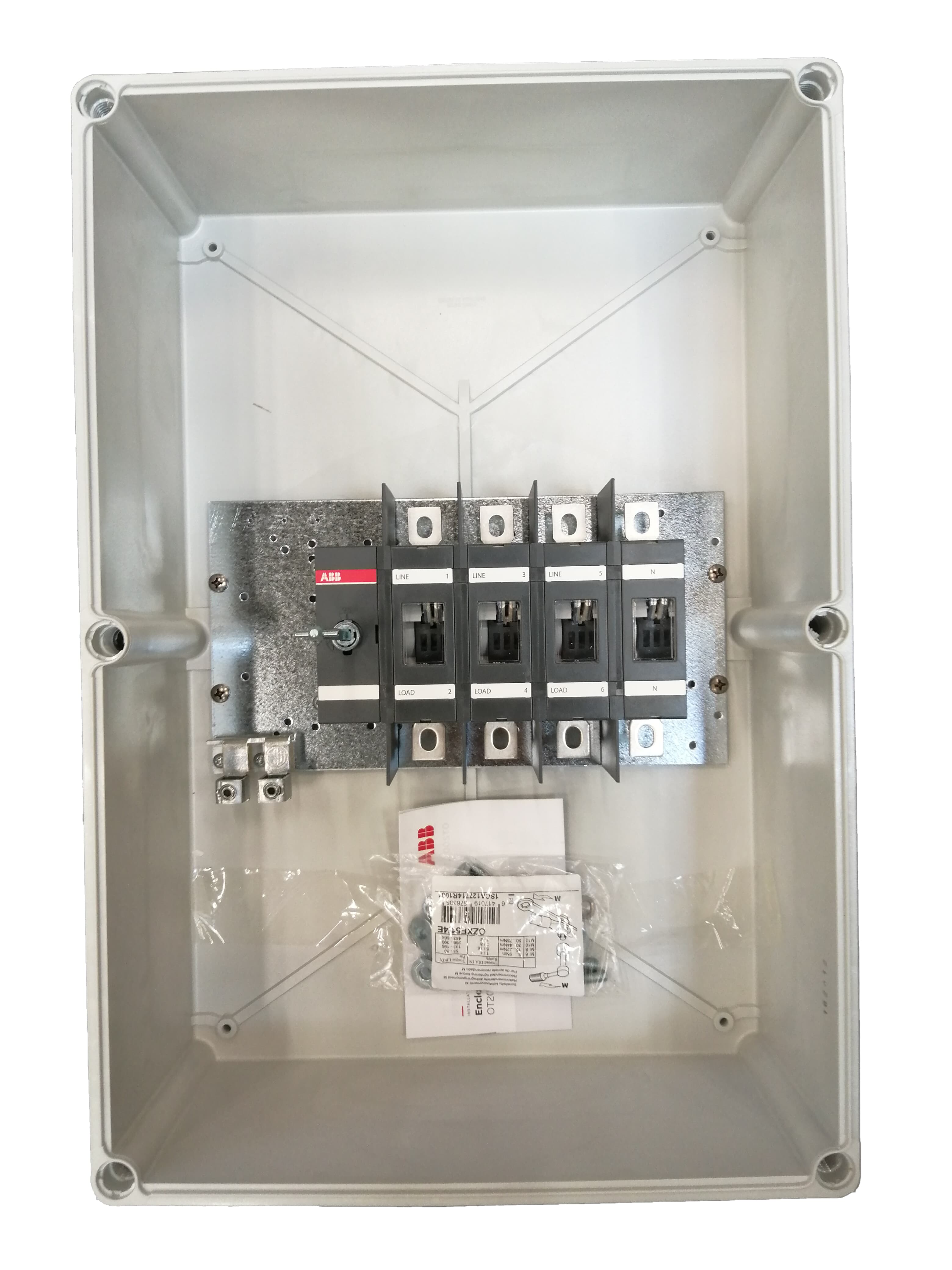

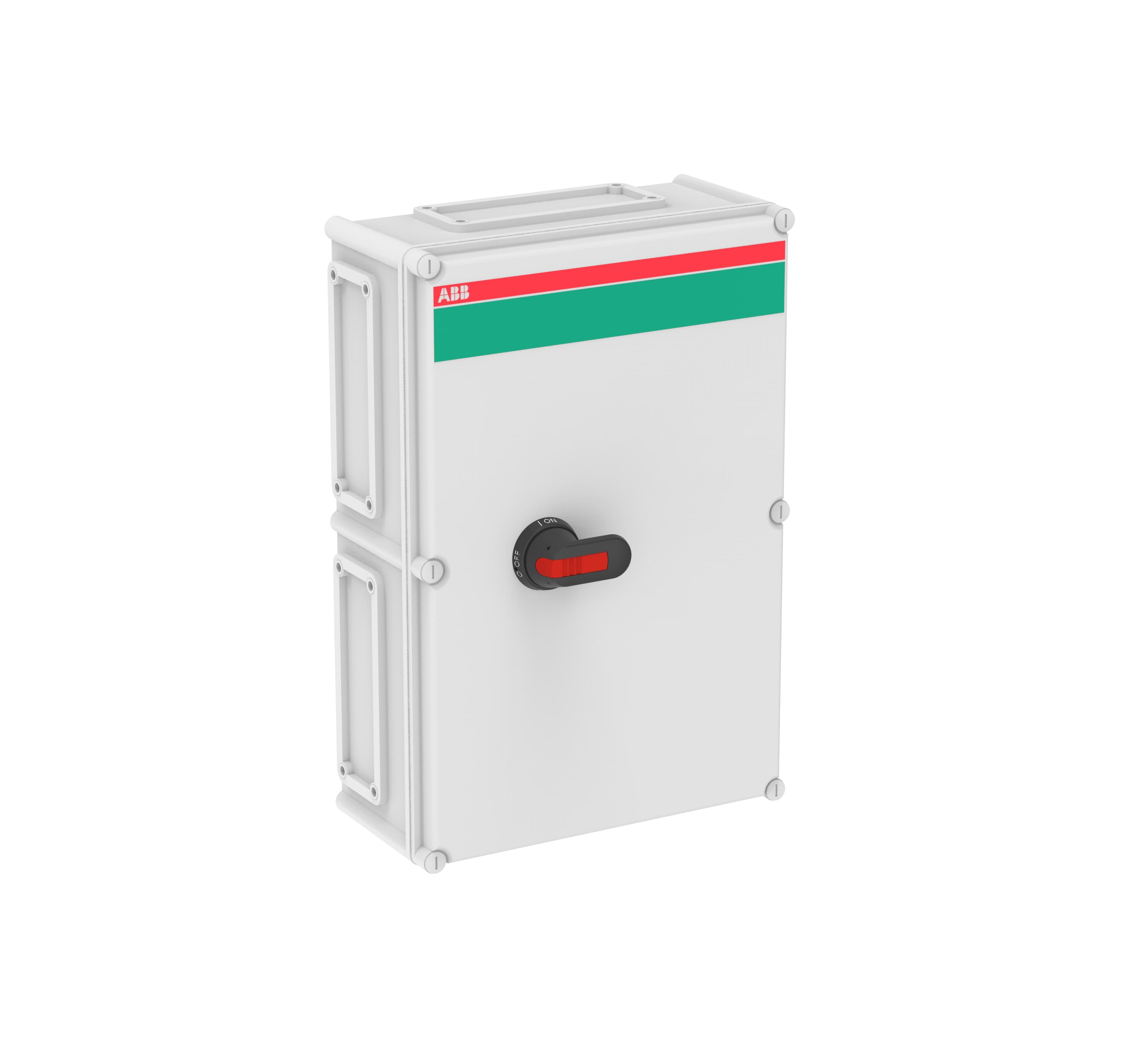

Encl. Switch Disconnector, 4-p. 415V AC23 200A, 110kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 83 102.61 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 83 133.08 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 83 838.75 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 89 278.87 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 91 736.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 91 770.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 92 549.27 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 123 133.74 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 137 489.46 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 151 774.08 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 17e37d83-824b-4fe2-8bf4-027cb2ef08ab Finland |
| Simplified SCIP | 6297313a-bdc9-450b-b8cd-7119434d157e Germany, 40543bf3-67c5-4125-a679-ded79c01bbf3 Bulgaria, 1cabe59e-440f-468a-ab9f-f728be3e11c1 Sweden, 495922bc-9ffb-4b53-a2a2-26a69b56d854 France, 732c8797-739f-4b4b-9384-de1cf3f00721 Germany, beca31e5-139c-417d-a192-13270fd0abf0 Sweden, d367acd4-c074-469e-b809-011fdc612289 Italy, fce7cdaa-e594-47c3-829a-f2ab18dc3c54 Belgium, 716e69bd-9b0b-411d-8d3e-29a706be7810 Poland, 4d5b46a2-306e-47a7-8234-70aa8f809a2b Poland, b468074b-93c4-4c1a-a8fb-d3b281efd69d Greece, bb3f6c1e-7f53-4981-873e-de7d6692668d France, 5885177e-4186-473c-bb14-409fa57fa8b0 Germany, 2a070aad-1a7a-4c0d-9a3d-2f1f0d41dd41 Spain, 61425d7d-b9b7-4bea-9eda-8b3d9e536787 Netherlands, 0c140593-0b2a-4bc9-96a8-b96678c722ad Hungary, 5501d2d2-b851-4126-b212-1ab90f89cf8d Portugal, 1beb128d-82ca-4e37-b1fc-ffd6c7fc061e Poland, c2ae0d78-03b6-45d8-b9f5-75dcd497dbe7 Norway, b487d4dc-fb91-4b0f-a29b-3a76ca0d1cee Estonia, 5cfcb37e-0ab3-406a-b2dd-c7fcfb100ba6 Denmark, 5c5a10f3-4ba0-4d77-b1f3-fcbdd5f27ff5 Germany, 4d01a959-75ad-4c0c-9d39-c2b801e33d86 Germany, ad7f676f-029e-48bd-9e43-6e218ff6f492 Croatia, 0272b805-9809-4ffb-a75f-1c12258e73b3 Czechia, 848dae9f-b3ac-4ce4-ac81-b4f1c1040df4 Belgium, e72a81be-f39d-436e-8323-69046e0dfc1f Hungary |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.066 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 2pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 12 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT200KFCC4B |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
