Артикул: 1SCA022459R6940
· Производитель: ABB
· EAN: 6417019143224
1SCA022459R6940
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
11 916.95 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
10 795.35 ₽
срок ≈1 мес. (38 дн.)

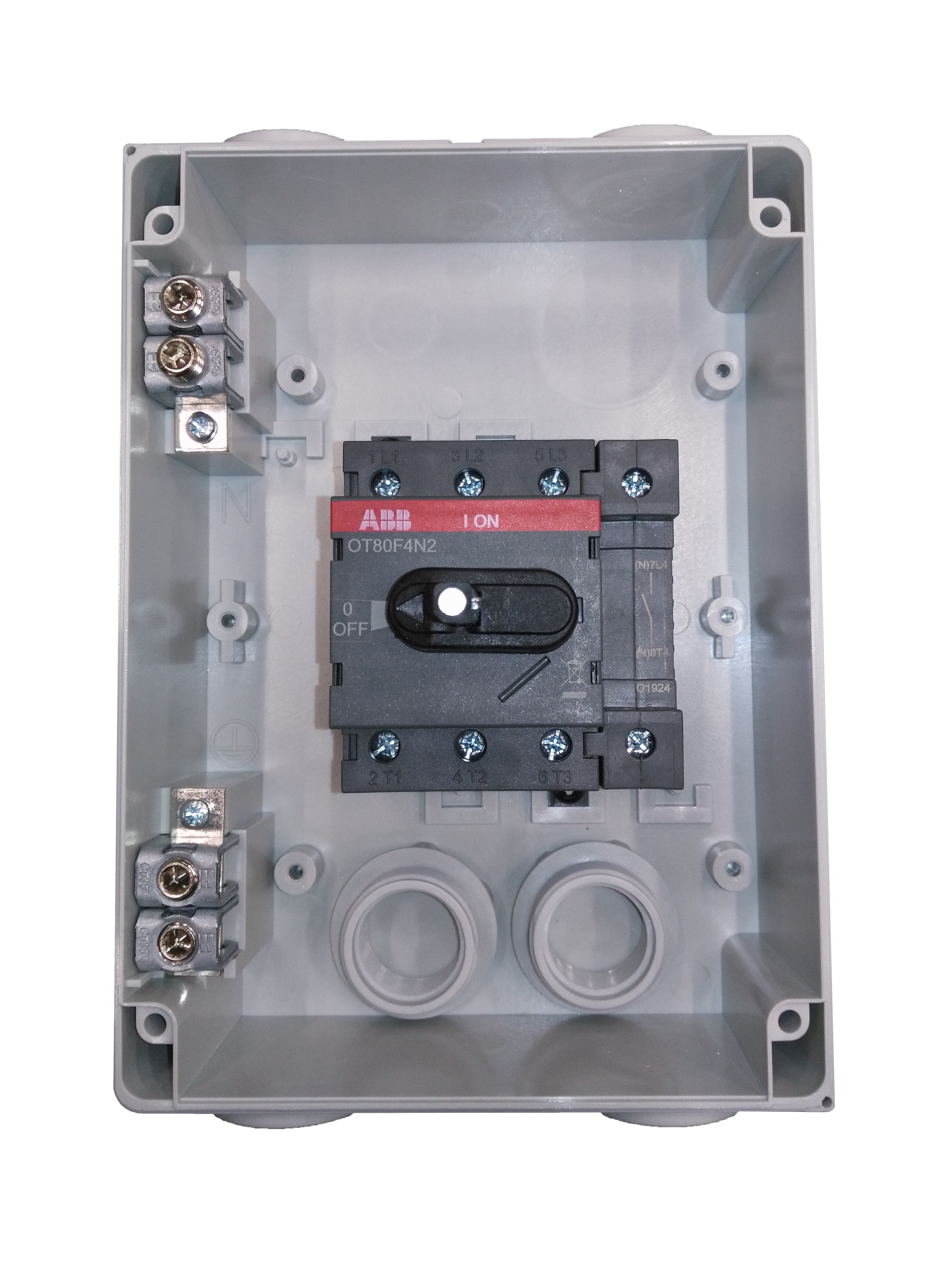

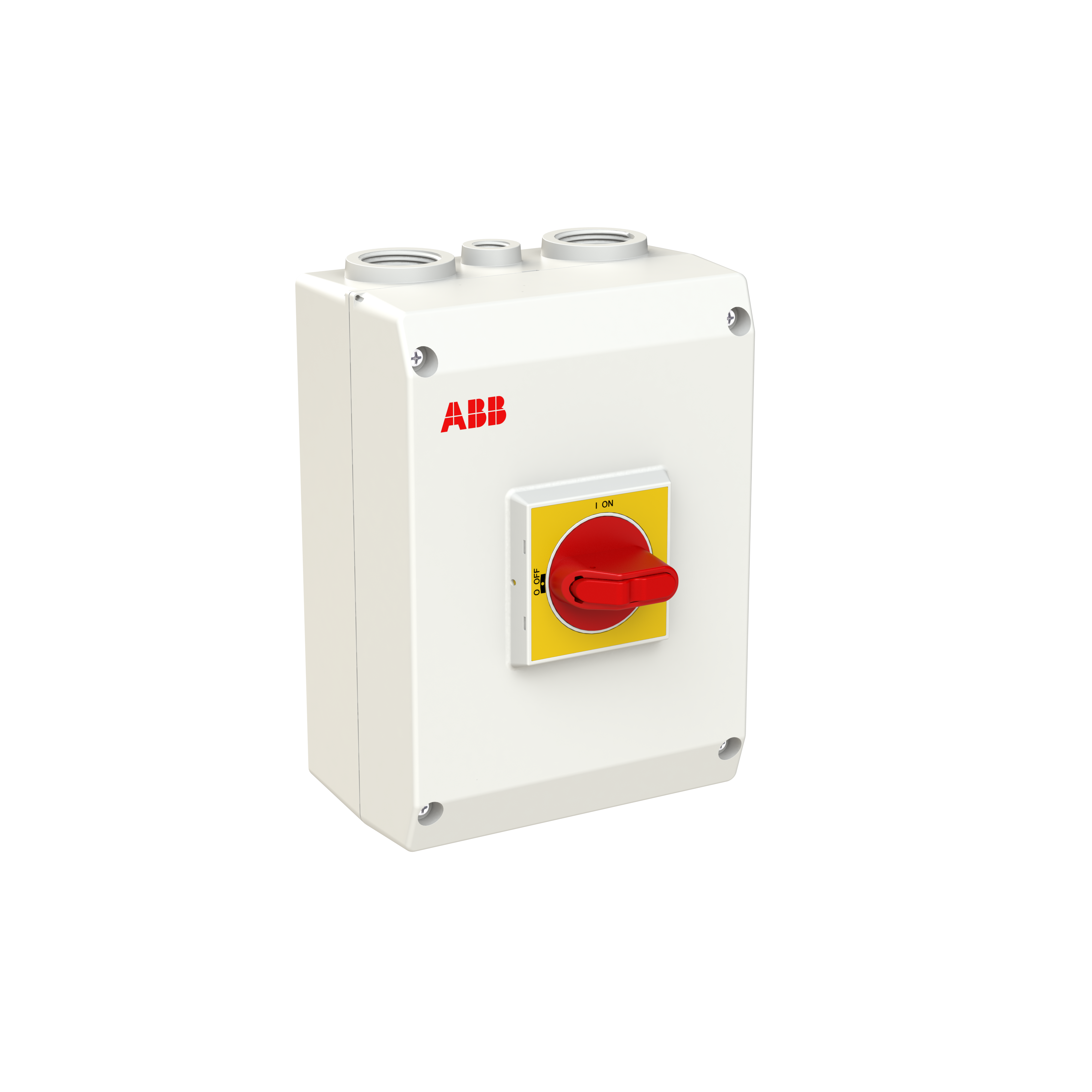

Encl. Switch Disconnector, 4-p. 415V AC23 75A, 37kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 10 795.35 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 916.95 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 730.04 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 610.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 615.12 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15 024.14 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15 029.67 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 19 229.64 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 19 604.26 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 641.07 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6c204ec8-71a3-4865-a5fb-593f17f9e4dc Finland |
| Simplified SCIP | 64a92780-2af7-4bdf-861e-8de93556e713 Germany, ef1d3433-0304-4f31-8bbf-a5e63eaadea1 Portugal, 0fc18302-3923-4ad3-a14b-85329c14fd9c Greece, a60c0bbd-5538-409a-9ced-4bd26deea894 Sweden, ef3ced5b-a515-48cd-a90d-81fa71cd8229 Bulgaria, ee1fd9df-a714-4e23-95f5-19f5fe8195fb Croatia, 6bd18839-75e8-40a6-8081-96c42e8dd15b Germany, e32d786c-7fd3-4ee2-8564-ddd09f24acb5 Denmark, b21ae0e7-79d1-47f3-a467-2f1e1f34e62a Germany, 451bcf4c-aa31-46fa-b1f2-e905687f59ba Czechia, 0d67a6b8-59c8-4d74-b4a3-cb1a76d971e4 Poland, 1fccbc8a-b46d-4f05-abdb-6b5312e3bf22 Poland, 57e772f5-b5c6-4699-9ca8-480c7b37f134 Italy, 54634909-2ca5-421d-9167-61d9fcb5b179 Germany, 33783a81-418b-4d2e-adbd-252b273fe130 Sweden, a1554109-8888-4621-95cc-18a3fde3a285 France, e8e31afb-688e-4460-879f-a6d2f168a2aa Estonia, 2228092a-ed42-41c3-a781-e094d0afafed Spain, fe65d698-1349-4f22-ac85-e03408fe5083 Hungary, 74297be2-ec8a-44aa-9bb5-ae2c7d6ce625 Norway, 18124749-1edc-4f14-b982-0ea7cdad2797 Poland, 9c9e2e36-00f2-4ab6-819c-36b11c2973e0 Belgium, 6548d977-09b7-41c7-b86c-339de68872c4 Belgium, 2fbc05f8-0ece-421d-8c81-7aea260dd5e4 Hungary, a7b62419-7156-4855-a766-e44c3090fd86 Germany, cbe74907-fc74-4b7e-bb11-dc4da1f1e0f8 France, e074d470-233e-44a9-b419-8c725d48ca92 Netherlands |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP80GBA4M |
| Country of Origin | Finland |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.9 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1 kg |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 35 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W, Total 8.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 1.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 80 A, (500 V) 80 A, (690 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A, (690 V) 80 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 75 A, (500 V) 58 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 18.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
