Артикул: 1SCA022459R6860
· Производитель: ABB
· EAN: 6417019143217
1SCA022459R6860
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
11 965.68 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
12 175.48 ₽
срок ≈4 мес. (122 дн.)

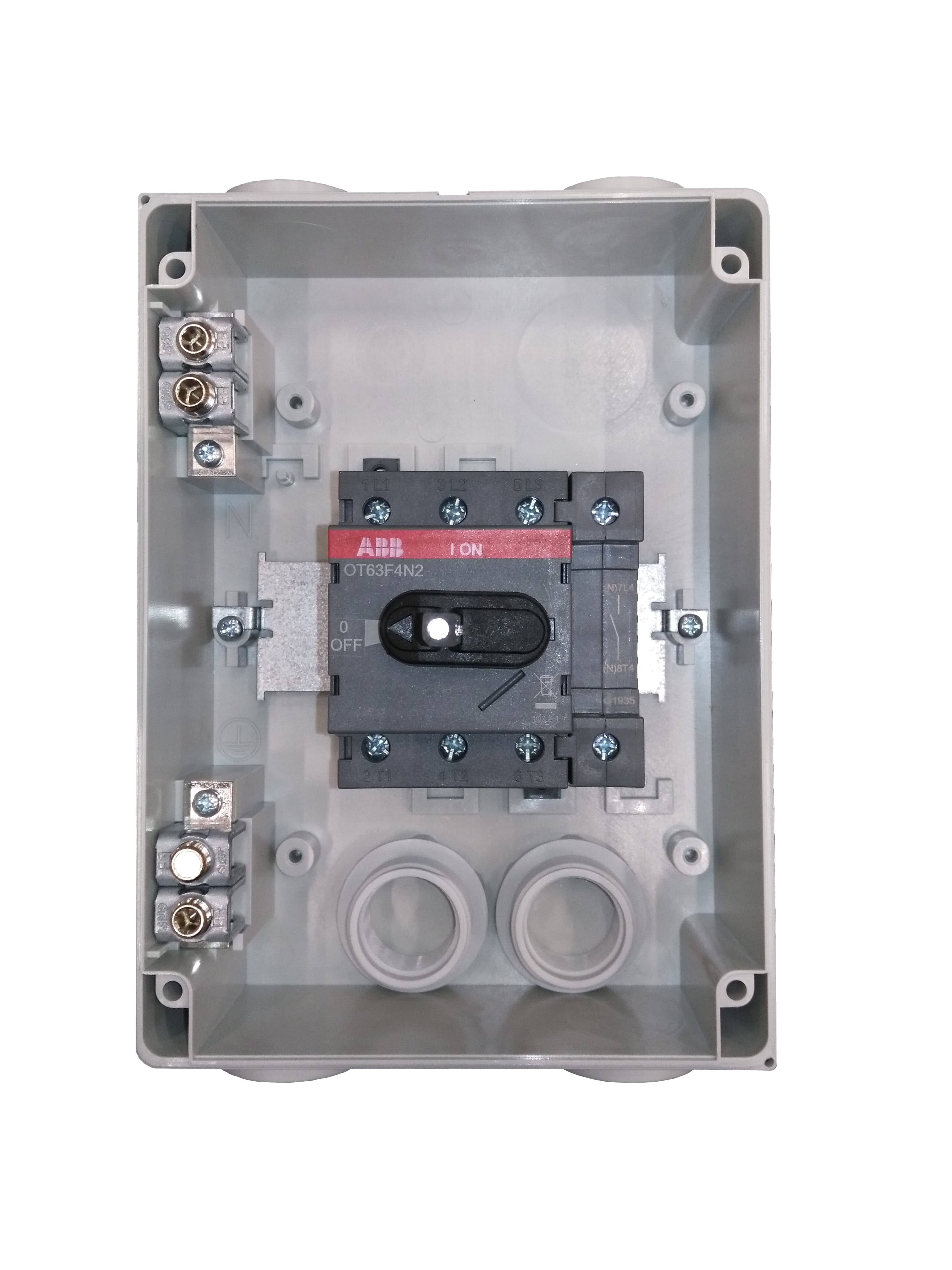

Encl. Switch Disconnector, 4-p. 415V AC23 45A, 22kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 11 965.68 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 175.48 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 180.04 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 285.05 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 440.46 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 445.50 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 561.42 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 18 040.28 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 18 427.15 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 341.66 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5f6c271a-2489-48d0-89b8-d51f29b63277 Finland |
| Simplified SCIP | df56e47c-e2eb-4a03-8ac7-71d11d91742b Germany, c9b5416d-58b2-48da-956f-287f94280175 Bulgaria, 475244f7-c73e-40a4-af4c-fc7a14d8babc Greece, d152b84d-6812-4e98-8c1c-c6e5f2b13a2c Portugal, 76881870-eb0b-45c1-980d-4cc0779b4570 Italy, fbea1bbf-51f9-40e4-a4a5-1f2f57b2277b Sweden, 9c437f13-5fe2-4ab4-9cbe-b7df5f572e41 France, 6d181cca-ffec-4a03-a7ac-c8054897650a Sweden, 84a8f623-6561-4888-b7aa-9d5de2a3d801 Germany, f5971993-9c81-426a-a4ca-9acdc9b4d29c Germany, ef1f6fd1-342e-48f2-8c92-1b90bb173ab9 France, 2b7d742c-5c46-4d87-9555-40ab73ffe260 Spain, db808e35-5f94-4bb7-ae88-6a46290b257b Hungary, c07d3ec9-2b47-4b56-91ec-a8a159027f37 Belgium, 6f467098-9f8e-4fc6-afa6-c6172b91adee Norway, df5296d9-8e4d-423e-9031-beedfa334012 Poland, 17c8dc89-84c2-49ce-bd93-b7229f2eead2 Poland, 25a364b7-ce70-47ff-be66-d29dd4a1115b Poland, dcd35a37-e02e-463b-9c54-a26a53b4085f Hungary, a3798e47-5705-4529-8d8d-e9660d197a15 Estonia, 2b63312f-9cf6-4079-ad97-0a9e3e817f2a Germany, 29ac20ed-9f11-4fb4-a85e-dbe0e3418ec8 Denmark, f286ff35-1843-4772-b6c4-146367b14343 Germany, c7ed9a63-9392-44af-9cb7-bbff64c48ae5 Croatia, cc9024bd-a3a7-467a-a087-3e664e43291f Czechia, 8da69d3a-6d4e-4efb-922f-a4b02b5aa744 Belgium, e564cea7-a4cd-4ed8-b145-7d86b6246760 Netherlands |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP63GBA4M |
| Country of Origin | Finland |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.9 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1 kg |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 35 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W, Total 8.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 1 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW, (500 V) 22 kW, (690 V) 15 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
