Артикул: 1SCA022401R7180
· Производитель: ABB
· EAN: 6417019131566
1SCA022401R7180
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
15 575.39 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
20 827.69 ₽
срок ≈1 мес. (38 дн.)

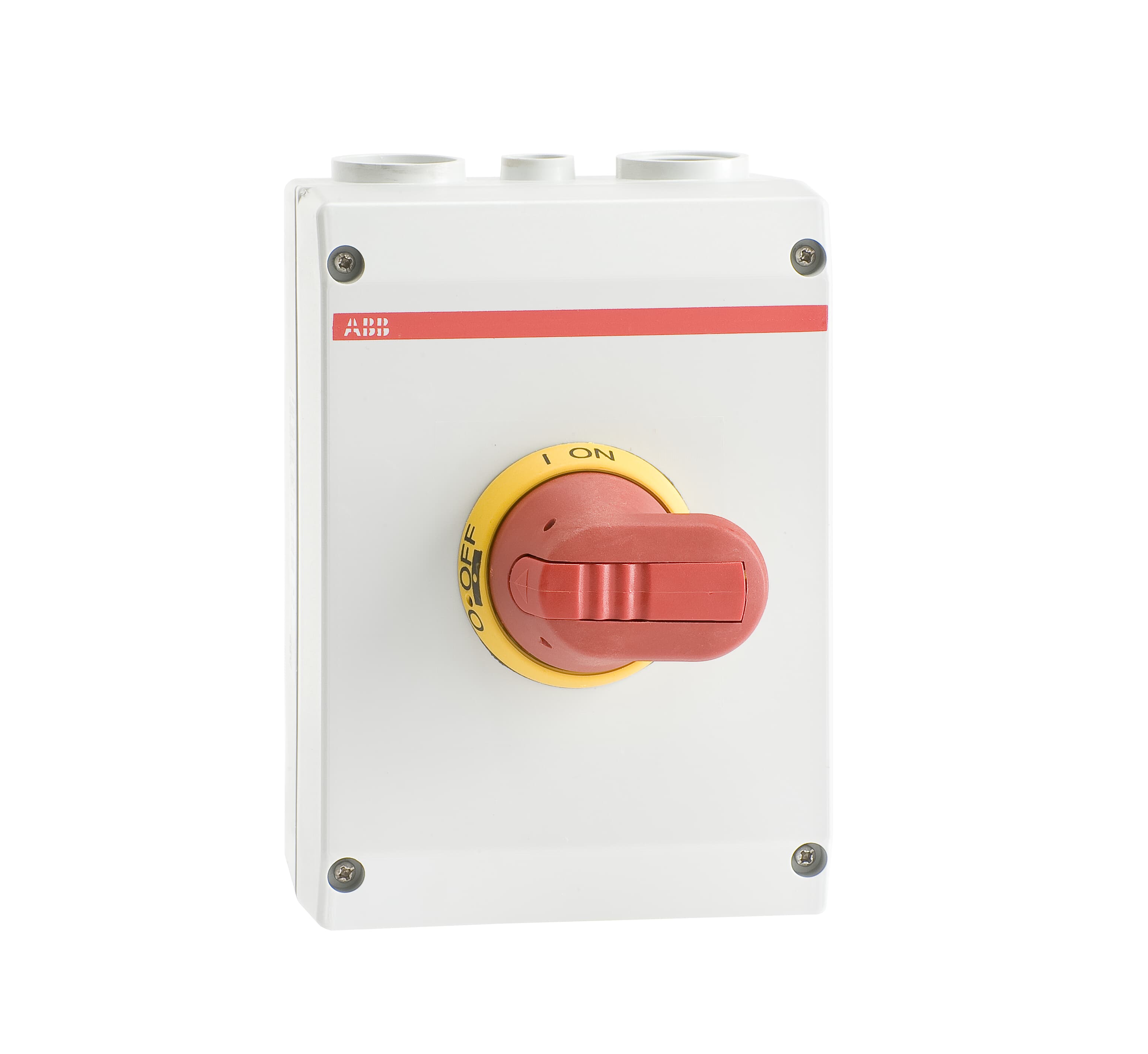

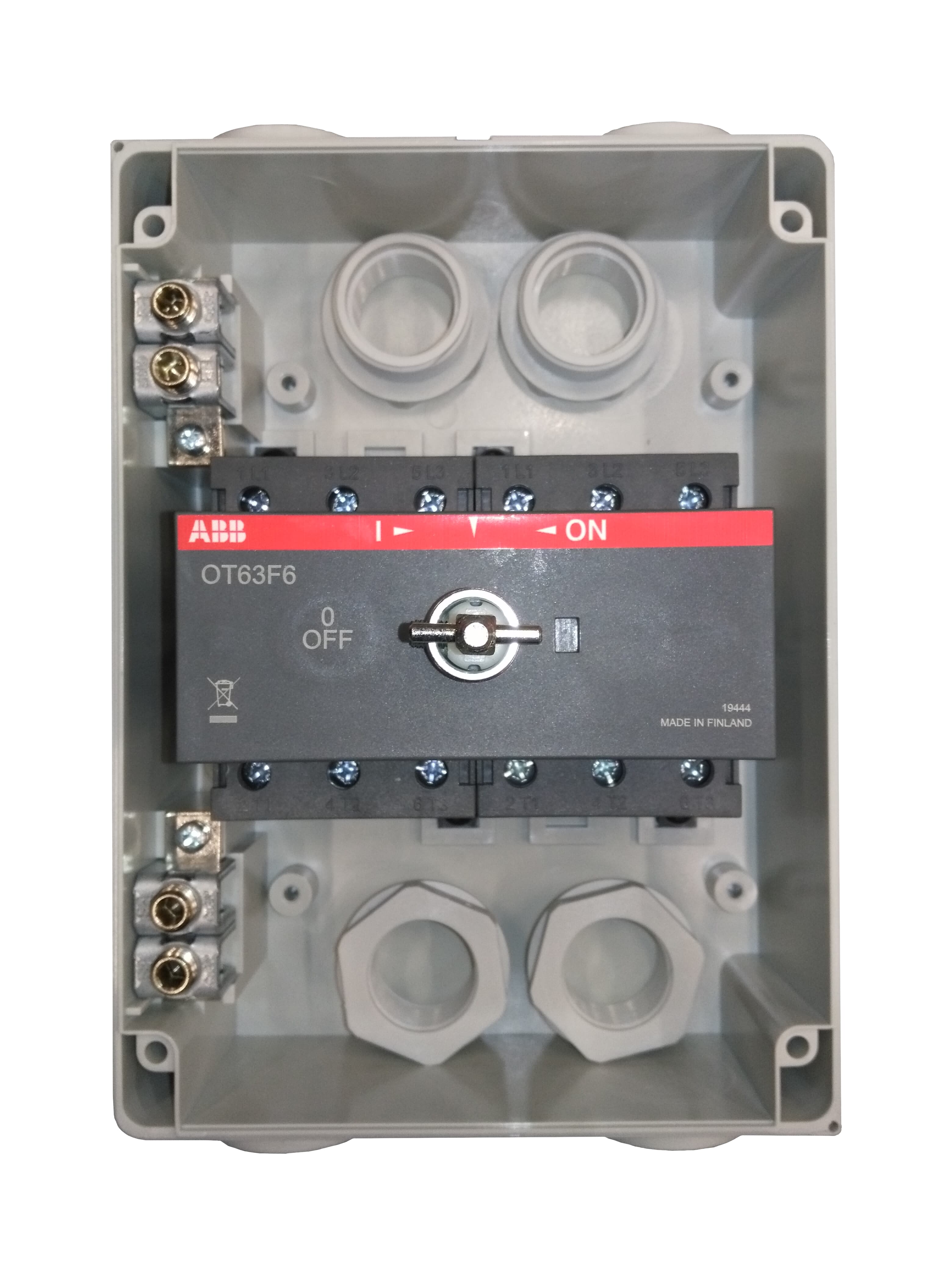

Encl. Switch Disconnector, 6-p. 415V AC23 45A, 22kW. Plastic enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 15 575.39 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 20 827.69 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 159.80 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 719.77 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 22 991.61 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 976.37 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 555.71 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 367.68 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 26 478.16 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 29 107.18 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 586.09 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 971.65 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 39 066.01 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0d14433d-eae5-4666-b60b-f0dd1f073364 Finland |
| Simplified SCIP | e8dc22b6-da2a-4697-a4c8-b9753d6157c7 Germany, f09bd39c-4931-4294-b442-da15c5f8a10a Estonia, 1be198a5-1519-4262-8b71-42d9fca60320 Germany, 8ceb11cb-ffe0-48cd-924e-5560c0119a8d Denmark, daca818b-84b5-40ff-bca1-1b9245dac113 Germany, 477fae58-dd6e-41f4-bc75-e3d7d734aecd Croatia, 8021d3f1-7c87-47e8-ba07-583780cfd50b Czechia, 90529444-b9b9-4087-bcb6-aa1ad82f9015 Belgium, 5c79e63d-1e73-4168-b9c1-acc82e222262 Hungary, 6372ed3c-e122-4423-b9d6-eb51ed94d1d3 Bulgaria, 7de7d89e-ba24-406d-bc34-ae8ef3481582 Sweden, ce415825-d4aa-43c3-aafc-7cc07be6e4a0 Germany, 0642bb61-84e3-4e0a-8e88-c85a08d7b8a0 Sweden, dd26dc6a-f612-4dc7-abcb-9afa9766f744 France, 48a7ad36-754e-408e-9e42-8060e53bf54c Poland, b0ee1936-b0a5-4535-a8f2-dae5d5b8f0ab Poland, 7ee5fd72-60ec-4e47-92ab-4bb5ac04b0c3 Belgium, eda44c4a-3c10-481e-bad5-6e70b0abfa86 Italy, c93b4806-6628-4d3f-86da-5db4c52b8158 Greece, 1882f794-b7e8-46ad-a98f-f286c0962826 Germany, fb657374-e373-4750-a5ab-e139cbd693a2 France, 40992d6b-482f-4785-94c0-da8fac3d8529 Hungary, cf772aa0-6c2d-4afa-b70b-01f30df115da Spain, 5b14f4bf-e32b-4642-a612-b47e341345f6 Netherlands, 0b5652ff-03a3-470d-b8ac-7cfe3a3fd2e1 Portugal, cff7f1a2-0c03-4cb3-a711-4c6263ed27ba Norway, eb3f06ff-f152-402e-b436-0f53fc86643b Poland |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP63GBA6B |
| Country of Origin | Finland |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 1.5 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1.6 kg |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 35 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W, Total 16.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 1 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 45 A, (500 V) 45 A, (690 V) 45 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 45 A, (690 V) 45 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW, (500 V) 22 kW, (690 V) 15 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
