Артикул: 1SCA022401R7000
· Производитель: ABB
· EAN: 6417019131559
1SCA022401R7000
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
13 658.42 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
16 577.38 ₽
срок ≈1 мес. (59 дн.)

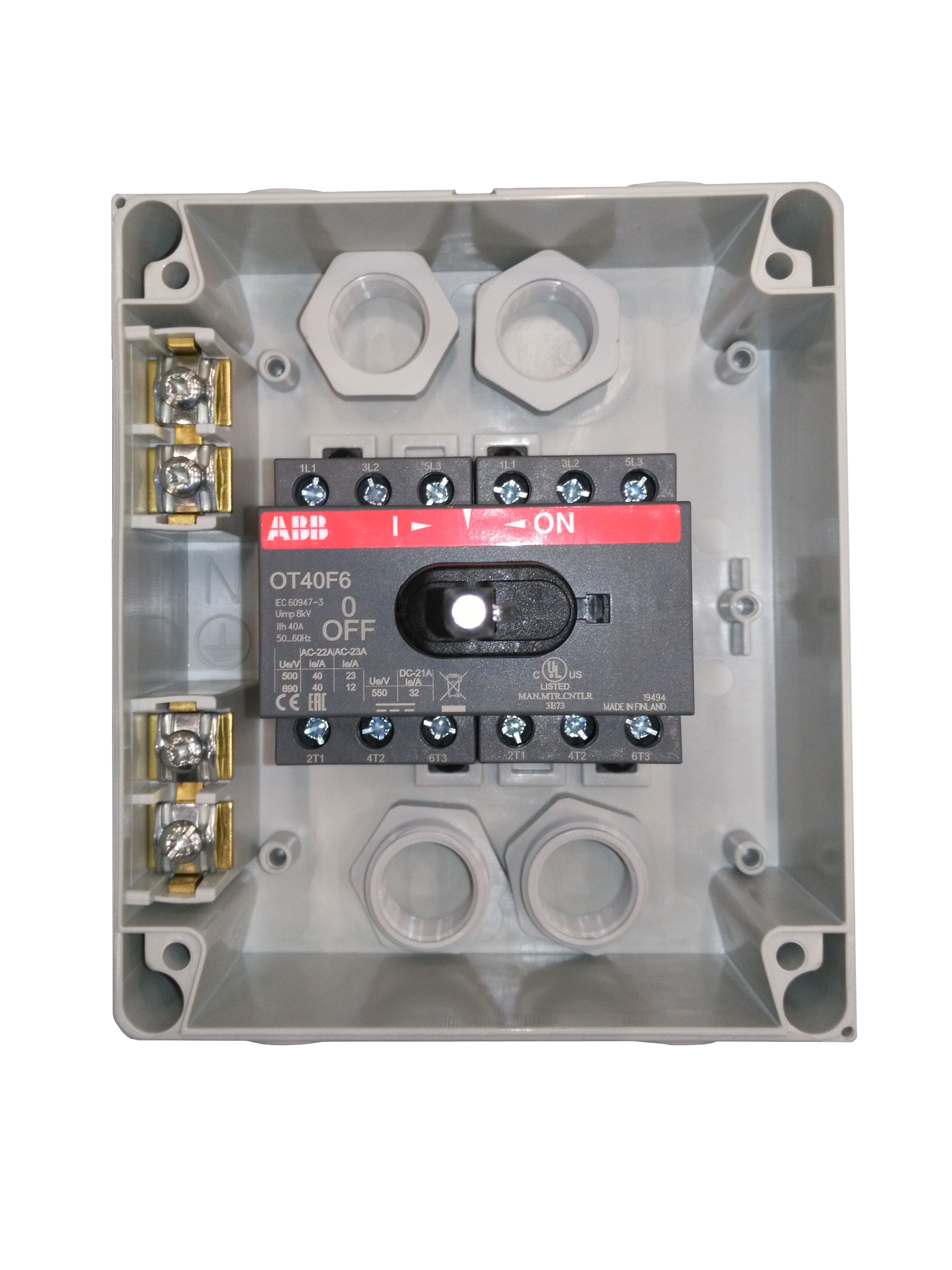

Encl. Switch Disconnector, 6-p. 415V AC23 23A, 11kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 13 658.42 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 577.38 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 652.69 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 764.91 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 299.70 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 382.84 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 506.72 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 033.96 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 219.31 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 23 400.19 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 7c5133cc-6967-42b1-a915-50d39f5dbf75 Finland |
| Simplified SCIP | d65440ee-9043-4ad4-8423-78e575c299dd Poland, 1d558184-7d02-4ffc-97b1-a5ea6bc952e4 Poland, 10080820-15a3-4f7b-8a7d-7a07683b1280 Norway, 75f0166c-8261-4ecd-b384-abd5b5f27b5f Belgium, 38f4cbb0-7425-4fa5-8e89-a013d657718c Italy, 958362c8-17a4-498d-8493-cd6401ac3e81 Germany, abff1752-a905-4f76-b6a2-004657975a48 Germany, 12a6430f-2157-42d5-8ff4-63ee34c757e6 France, 1686d83d-1b05-4ee6-918b-fdf94f2a722c Germany, 0ab0b0fb-9665-4793-8715-9703a4631483 Sweden, bd0f2c40-8d0a-4b0b-9e4e-ee4d0feb31f0 Netherlands, 980ec595-6a0e-4ef0-b856-957f361107d6 Spain, 584bbe65-72e2-41a5-b4aa-b1f6d5fa3f8c Poland, b72a5a31-9f22-4395-9f49-fcf87093ed2d Hungary, 44d3042c-3876-423a-9817-6f294b412f07 France, a56f73f2-a592-4f75-a397-c724d79b1e5b Portugal, b3323619-5441-4dbb-a63d-96d77adb7732 Belgium, 959623da-5f73-45a2-9be3-97d4a652eb39 Czechia, ab08294f-d5d0-43ec-9ee9-ef012f141f4b Denmark, dc8bcf80-cad6-468c-9859-ada42103ebf9 Germany, f9c7005f-be56-4bc3-8542-c2e60b70710e Croatia, 8aa6fbea-3e6f-4cba-9814-edffd08531bb Estonia, 5c551768-37e0-4f9b-9da6-9f50a80bcb80 Hungary, b8b5edc6-02b3-4f4c-bd17-e1896ce30fc0 Greece, a17b9f97-8d30-4009-999b-c1885598d1d2 Sweden, d651b358-b153-44f7-b19c-d7aafe6b5a05 Bulgaria, 6818ca78-112d-4b77-b82d-bc846fb9b6c8 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP25GBA6M |
| Country of Origin | Finland |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 85 mm |
| Product Net Weight | 0.7 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W, Total 9.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A, (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A, (500 V) 23 A, (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW, (500 V) 11 kW, (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
