Артикул: 1SCA022401R6880
· Производитель: ABB
· EAN: 6417019131535
1SCA022401R6880
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
13 071.96 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
11 841.66 ₽
срок ≈1 мес. (59 дн.)

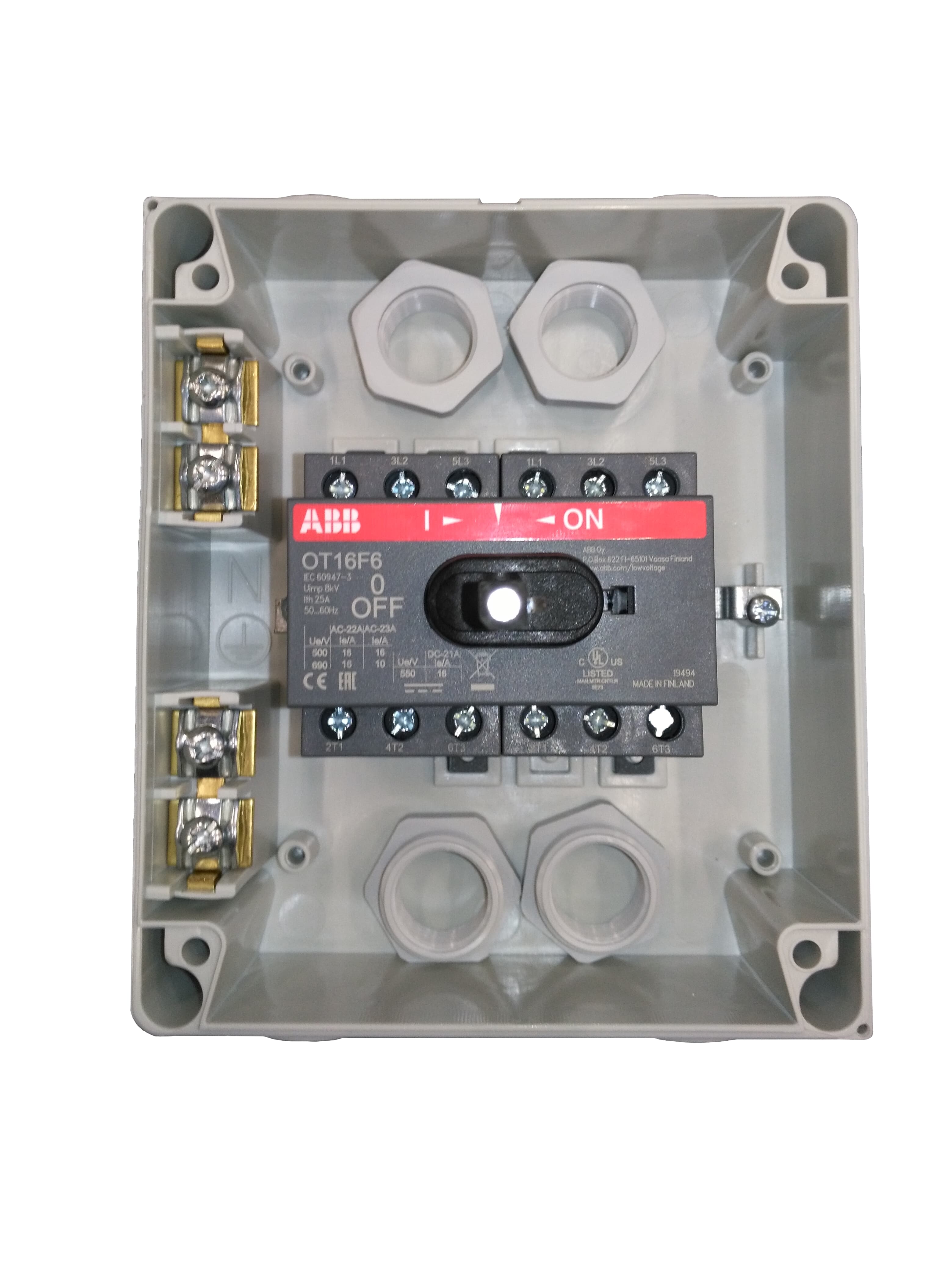

Encl. Switch Disconnector, 6-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 11 841.66 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 888.97 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 975.64 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 071.96 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 124.19 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 219.86 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 16 531.54 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 714.94 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 25 458.57 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 28 103.62 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | eb270205-b63a-43da-9d68-805ccc348421 Finland |
| Simplified SCIP | 7387e719-9370-4a7b-81c1-193a89dc6acf Estonia, d46d9aff-1198-470f-bd83-fa04594bbdb7 Hungary, 24a8f6b9-52a2-4474-952c-d3c97d6b63d5 Greece, 0d6dfc30-23e3-4972-a7af-22ce8dabc101 Sweden, b0d2daa5-8915-4afd-afa0-5b96d44929c5 Bulgaria, ac67114a-7d2b-4f60-96fe-2dba3119e24e Hungary, eaa5a0f0-8c1e-4012-b1cd-d0a05e5da8cc France, 7889902c-d101-43d2-b0c1-ac53b756a5ff Poland, d1371e40-75b8-4f87-930f-3edea879ed37 Portugal, 478a83f8-4736-475b-aaed-bed137b3c315 Croatia, cdc15c71-6042-4585-8de9-97f4d1e9dadb Czechia, cd4e1e6b-c88f-41b4-81f6-54e511cd4207 Italy, 172f24cd-6138-4c38-b389-fe11929b37a1 Belgium, 4b302c98-79ca-4b42-94de-97a14e99b236 Norway, 3ce9a91c-f898-4c27-b7d7-7315718fd7a3 Belgium, 1a7e9731-dabe-420b-9880-da369a4d4f16 Poland, c27d49b1-0ce9-4977-91da-ba68c9d8cf6f Spain, d9db7298-7713-4892-abbf-0b8083cf8c02 Poland, ee295750-fe6e-45e9-9995-b9049034f7c3 Netherlands, b15ea4b5-4a43-46ec-966e-625b60e0a1c4 Germany, c8ea3b45-6f99-45e2-9e0f-1f24c1e018b7 Denmark, f1c74425-6c13-4377-b903-c90413c70421 France, dcb503ee-e6eb-436f-87a7-ff121cb53498 Germany, 25cb2f0b-4d40-464c-adb5-847fc0f9e794 Sweden, 1495c446-0deb-4e0c-95d7-0c05227ebab1 Germany, f8bfe6fe-27a2-4012-a672-261ead5d19b4 Germany, 213b0a82-6dc6-4d5d-be0b-9fd78ed36ee7 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP16GBA6M |
| Country of Origin | Finland |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 85 mm |
| Product Net Weight | 0.34 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.4 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W, Total 1.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 16 A, (500 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 10 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
