Артикул: 1SCA022401R6370
· Производитель: ABB
· EAN: 6417019131481
1SCA022401R6370
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
20 323.43 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
18 410.63 ₽
срок ≈1 мес. (59 дн.)

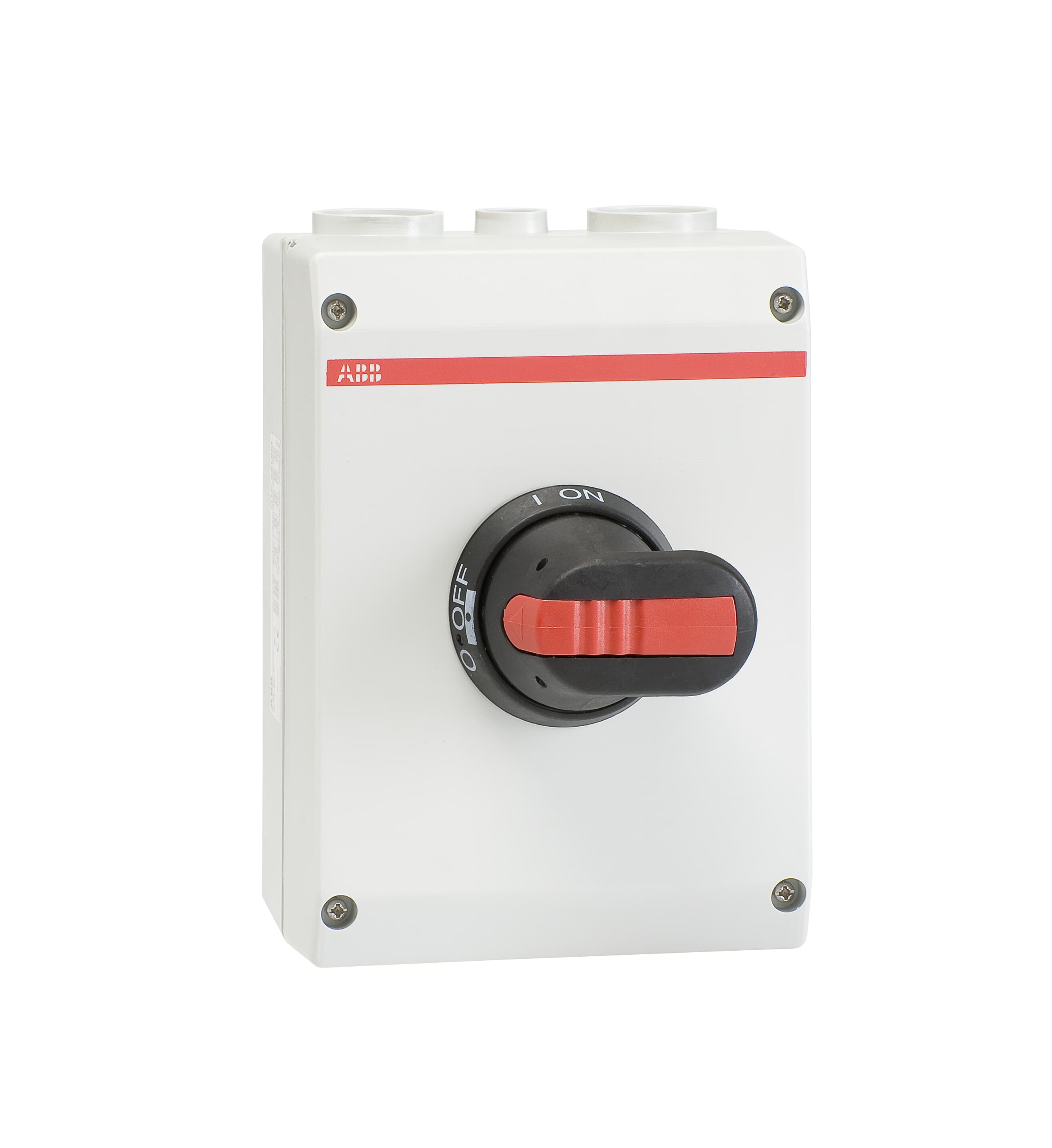

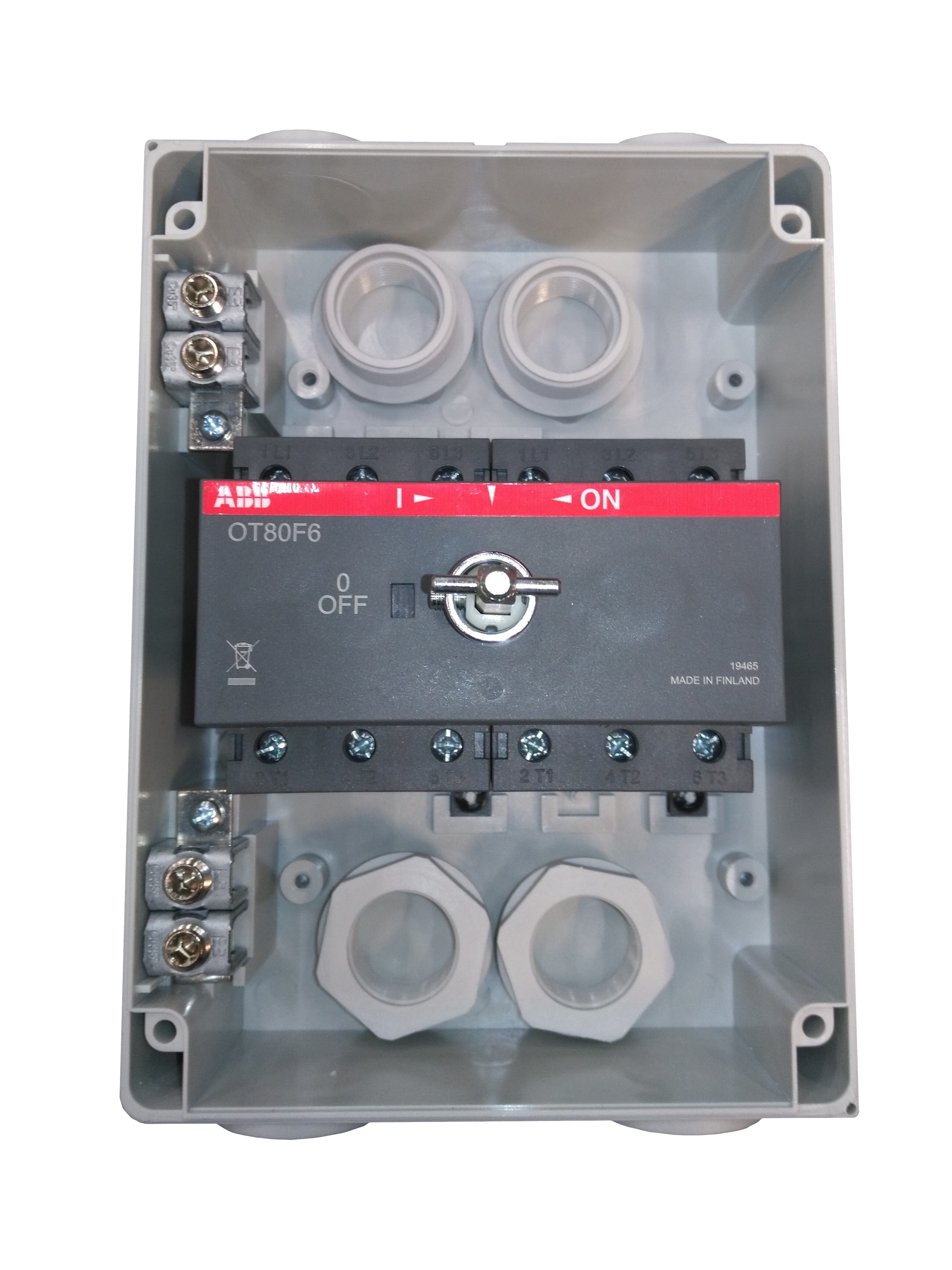

Encl. Switch Disconnector, 6-p. 415V AC23 63A, 37kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 18 410.63 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 19 647.79 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 323.43 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 046.64 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 689.11 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 22 316.98 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 233.31 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 987.67 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 34 368.16 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 938.87 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 811807c3-0a79-4900-9fec-77ada7db8c96 Finland |
| Simplified SCIP | 7f8d8e07-9f0b-4865-89c4-f32fb720d060 Germany, 9b9f3277-ded6-47b3-836b-066e57174a7f Germany, ef1f12f6-eb24-46cd-b9f7-fe8862bcaefd Belgium, 12aad6aa-493b-403c-b586-09d560978a0a Hungary, d70fc42a-600c-4da3-88f3-9f505a4a672d Portugal, f8a98016-dd5b-4e37-9291-ab219daea3e6 Sweden, 7f8a3578-abb6-4e09-849c-dee3191e9772 Bulgaria, 3c0c5620-3965-4d4b-98cd-c687cd068ab3 France, fb804e4f-b4da-4542-8db2-f0316e51987b Sweden, 07741f16-2989-46ec-b4e3-2eddd38b468a Germany, 60d70f58-a371-4f6d-a739-0ce0dbe651c2 Poland, f8b2c511-38db-4412-8697-4055ebdd5677 Belgium, e81032e4-f2aa-46ea-9faf-24a41d6183b6 Poland, 8d2ba905-23f8-489d-af84-ef89a105c28f Italy, 46300cce-90d0-403f-9e0c-bd834e0fda0e France, e2054e02-54ef-487d-8303-48dc2ae6ced2 Germany, 6a9d709f-d7b8-4bb7-b112-3fc9bbb2926f Hungary, f990b1d2-76c0-4e68-8682-07df77639244 Netherlands, 0181f36e-45a6-4f30-8ca2-4a7b50004b52 Spain, a289cff0-822a-4db0-8b49-180cfe740c92 Estonia, 19cabece-e6e2-4d7c-8e40-4a7b681e9560 Greece, d8d8bf11-270f-4cdb-99a1-e217f4d6eaa7 Poland, fabea5e1-9645-4ec5-ae13-c6db05a620ba Norway, 23678dbf-a42a-4e37-9681-e2b5ee182449 Germany, 2125b68e-667b-4996-ba15-efa67cfd5881 Denmark, a13b1ac4-671e-4f7d-bf58-c3f5ddcf51e1 Czechia, ad504f37-c520-4999-9feb-c05247664eb5 Croatia |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP63GB6B |
| Country of Origin | Finland |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 1.5 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1.6 kg |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 35 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W, Total 16.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 1.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 18.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
