Артикул: 1SCA022401R4590
· Производитель: ABB
· EAN: 6417019131306
1SCA022401R4590
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
7 477.39 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
6 773.64 ₽
срок ≈1 мес. (38 дн.)

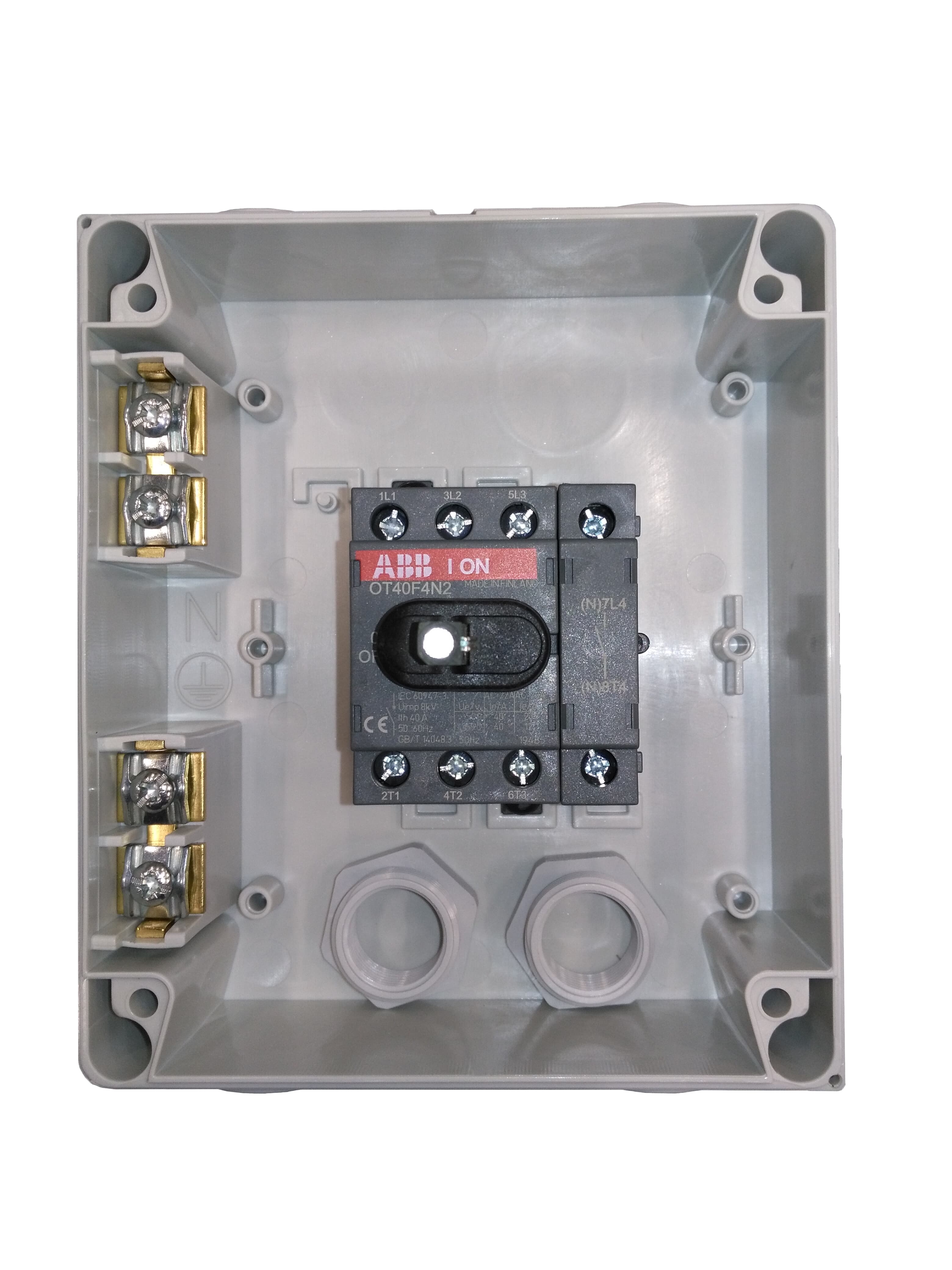

Encl. Switch Disconnector, 4-p. 415V AC23 23A, 11kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 6 773.64 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 477.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 053.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 293.42 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 889.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 155.07 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 707.37 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 13 892.63 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 394.66 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 617.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | de960ffa-1922-453f-a9dd-495524b1d73c Finland |
| Simplified SCIP | cb211441-5ba4-4231-8b2f-1e5e3c2c1850 Netherlands, 09caee4d-3380-4c38-901c-853c453e287a Sweden, 52a0b1c0-c00f-4575-801b-df3dea8d381e Denmark, 2682e0dd-8e7c-4e02-8674-51b6218ac8d3 Germany, 44f4cbde-8316-44c5-99ff-0d903a4f55f0 France, 3914666f-26ec-4148-9d6e-18ea268b39fc Germany, 0ec14194-c733-47ba-b8c3-42688ae47905 Germany, 080e1b31-3786-4d6e-b61c-fc0320fc5b16 Italy, ab6c33dd-87fc-4c04-84c0-e8a2e5cd0d13 Belgium, 80736d16-5cda-49b0-8763-963270b3d952 Norway, 3705dd65-612f-4249-bd51-e4a65f8f3b18 Poland, 0c5b8df7-ca40-409e-a1ed-ed14262f73ef Poland, f62fd0f0-3ce2-4a16-82ae-50d7d48213b1 Spain, 176f0b2a-3e6d-40b7-b978-190eb1355f1a Belgium, 66e962a2-fb4d-42f1-a00d-07e262f62671 Portugal, ab9e8442-59b8-46f6-919d-59c9b878e51e Hungary, b5a4dfc1-5969-41a1-96e0-8ad704fc4e59 Poland, 1b55480c-d3b8-4f40-90e1-6b70e16dcb5b France, f217ca7a-3a1f-4b34-a0ce-9a1ab9e38ae5 Croatia, b8cf85ec-6465-4e0f-a2c2-747e075c0dc9 Germany, 53caa784-c645-49a1-8ef8-3ea6d8d43e41 Czechia, 9358f742-7ca4-4d18-a166-3911efa6b6ed Bulgaria, e3a568e1-64b7-4ade-83d9-aeddde9bfa5e Sweden, e06072f4-96b9-4389-893c-a076663d39af Greece, af0685a3-fb5d-4e8a-b6b1-719b7405561a Estonia, c696da68-a7fa-40c8-a683-a41afd060236 Hungary, 9ace0a3e-e0cd-4ee4-b784-01d87298242a Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP25GB4M |
| Country of Origin | Finland |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.735 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W, Total 4.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A, (500 V) 23 A, (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW, (500 V) 11 kW, (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
