Артикул: 1SCA022401R4320
· Производитель: ABB
· EAN: 6417019131283
1SCA022401R4320
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
7 431.43 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
6 732.00 ₽
срок ≈1 мес. (38 дн.)

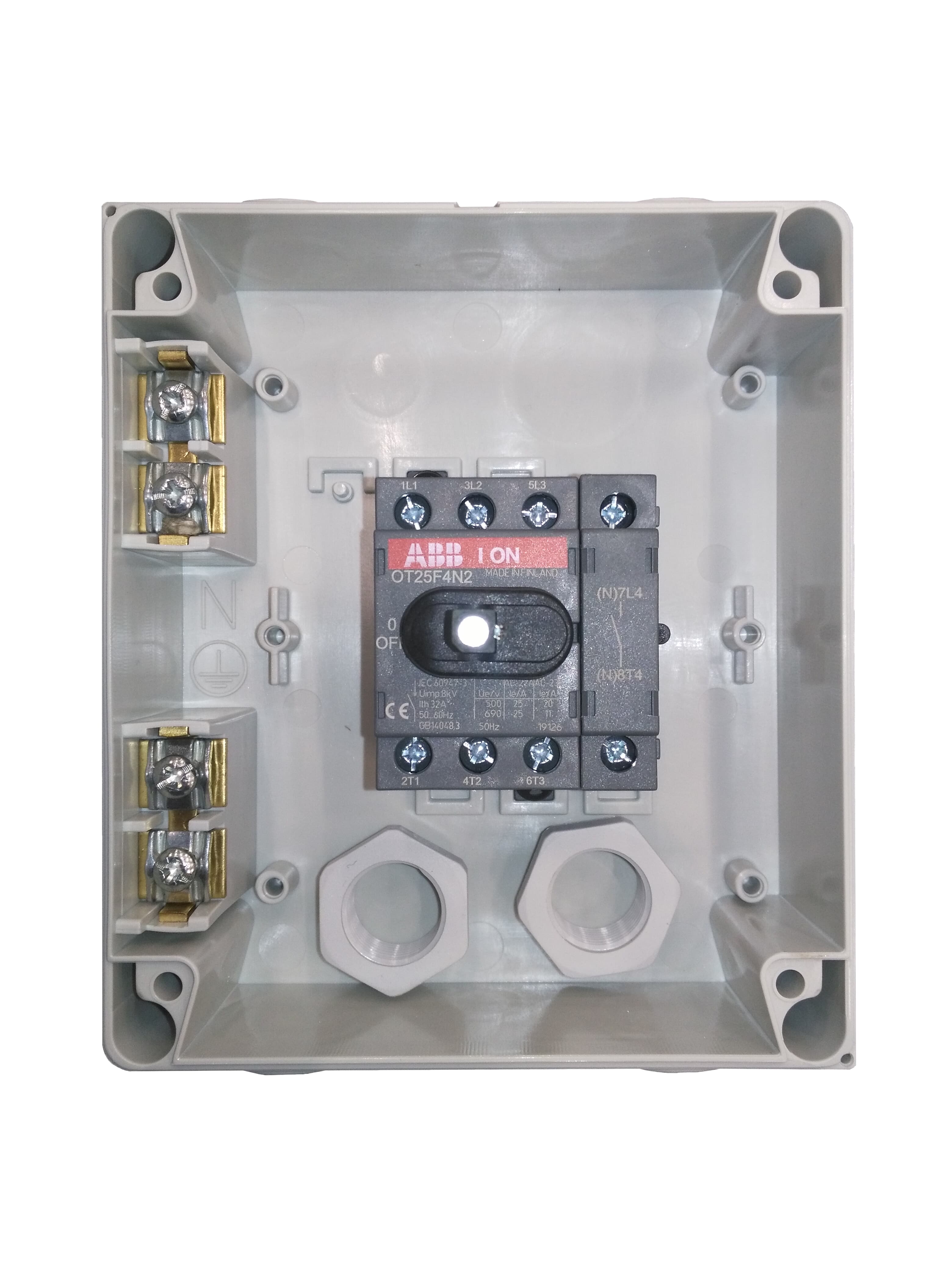

Encl. Switch Disconnector, 4-p. 415V AC23 20A, 9kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 6 732.00 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 431.43 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 670.44 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 274.49 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 467.37 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 134.18 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 681.90 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 840.95 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 18 235.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 129.61 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 7b4eadc8-ea3a-4486-8bb4-11afcb26fefa Finland |
| Simplified SCIP | abf2f470-f59e-427f-b98a-87218e84bf55 Estonia, 014f8c17-0c0c-4e95-8902-6908bfe7e44c Hungary, 54b35468-7b5c-4505-91bc-4cff11e035cc Poland, d3e430e5-ee4f-475f-8d21-2a76cfe60563 Hungary, fd46b48c-664f-4fe3-9aa9-841e574ed4c8 Portugal, 58a788df-2206-42c3-9378-634fd2d92e73 Greece, 319cc41c-9742-4b96-ac62-ad8481df9b42 Bulgaria, 83890952-c491-442d-9c1d-2a5d710f1448 Sweden, 2172948d-1bec-4250-a416-0614bda8e153 Poland, ed1ceabd-1e9c-4958-947f-6d20fdfd2db4 France, 23115935-7131-43d5-8fe6-596e9cf62bee Belgium, 4275e00d-bc36-4d80-b67c-0889eed2b78f Spain, e1823c5e-554e-4eb7-8e11-d34e910b4d4d Poland, 151ec170-1392-4297-bf09-709444b03f14 Norway, 4d7c4fd3-103b-484a-9aca-54b43719a3f5 Belgium, 2ffa46e7-afd8-4c3e-9fa4-7e99b0dfd60c Italy, 13c0a70a-5add-40a5-beeb-f62935f69ed7 Germany, aa9287b6-0592-4a59-a371-cb1839180647 Denmark, 43e4cdb0-fbe0-4c87-9c12-35f502da8929 Germany, c23221bb-5e90-478d-890f-0cb302669999 Sweden, 58acff89-74f1-4159-9f2d-e62bd8060117 Germany, b4c775e4-274e-4a1e-a42b-329c4271978c Germany, 85f04003-70a2-414c-8aa0-cad2fe055cd6 Czechia, 5e162564-7e6d-4c23-9f12-75c672ea8225 Croatia, edb7f940-fcf0-4932-a45c-2ec407c000f3 Netherlands, 72e6bc4d-bb1f-4675-bf43-a40590f65776 France, d07e65a4-5e50-48eb-89f5-42456cc64880 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP25GB4M |
| Country of Origin | Finland |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 1.535 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 1.6 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W, Total 1.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 25 A, (500 V) 25 A, (690 V) 25 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 25 A, (690 V) 25 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 20 A, (500 V) 20 A, (690 V) 11 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 9 kW, (500 V) 9 kW, (690 V) 9 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
