Артикул: 1SCA022401R4160
· Производитель: ABB
· EAN: 6417019131269
1SCA022401R4160
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
5 953.88 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
5 393.51 ₽
срок ≈1 мес. (38 дн.)

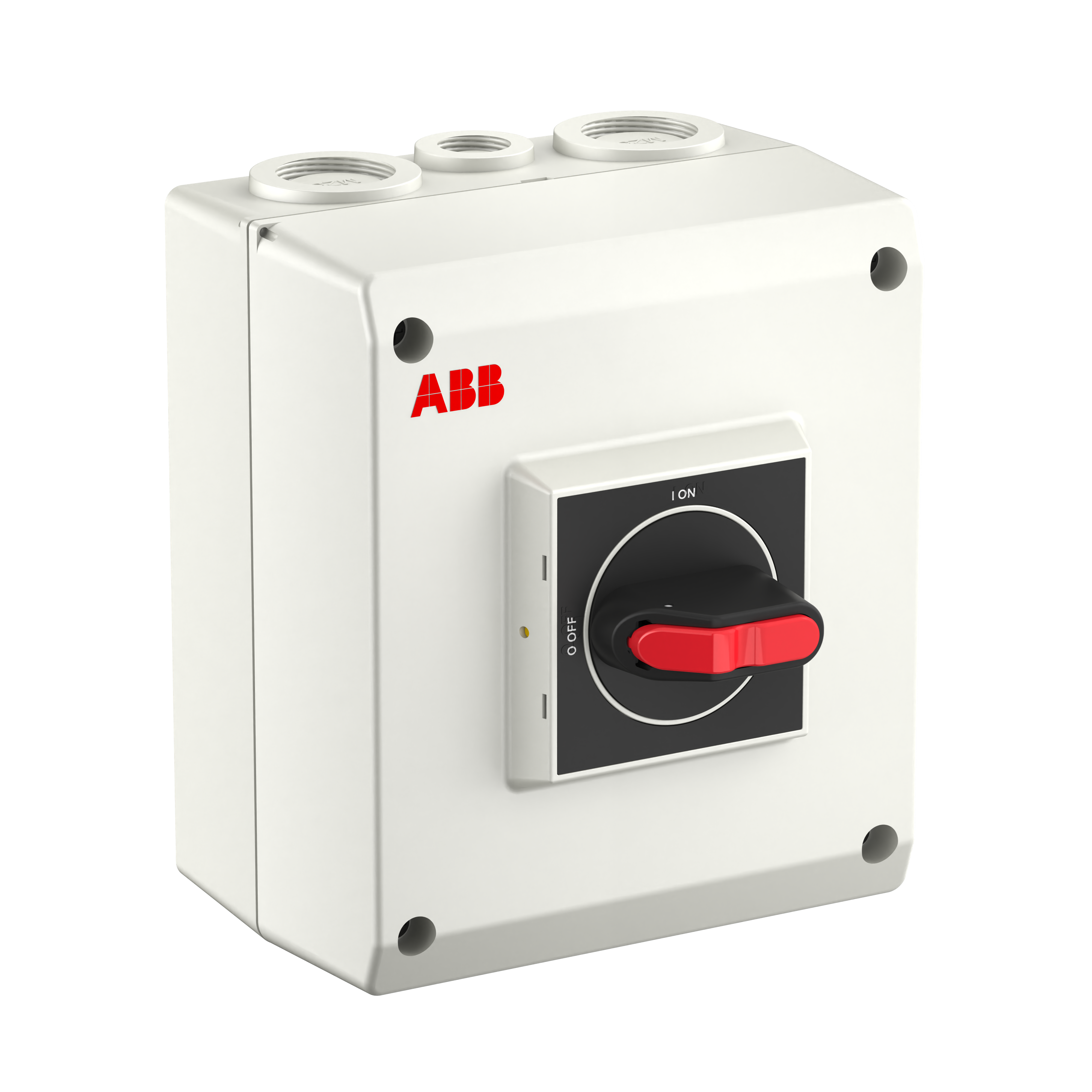

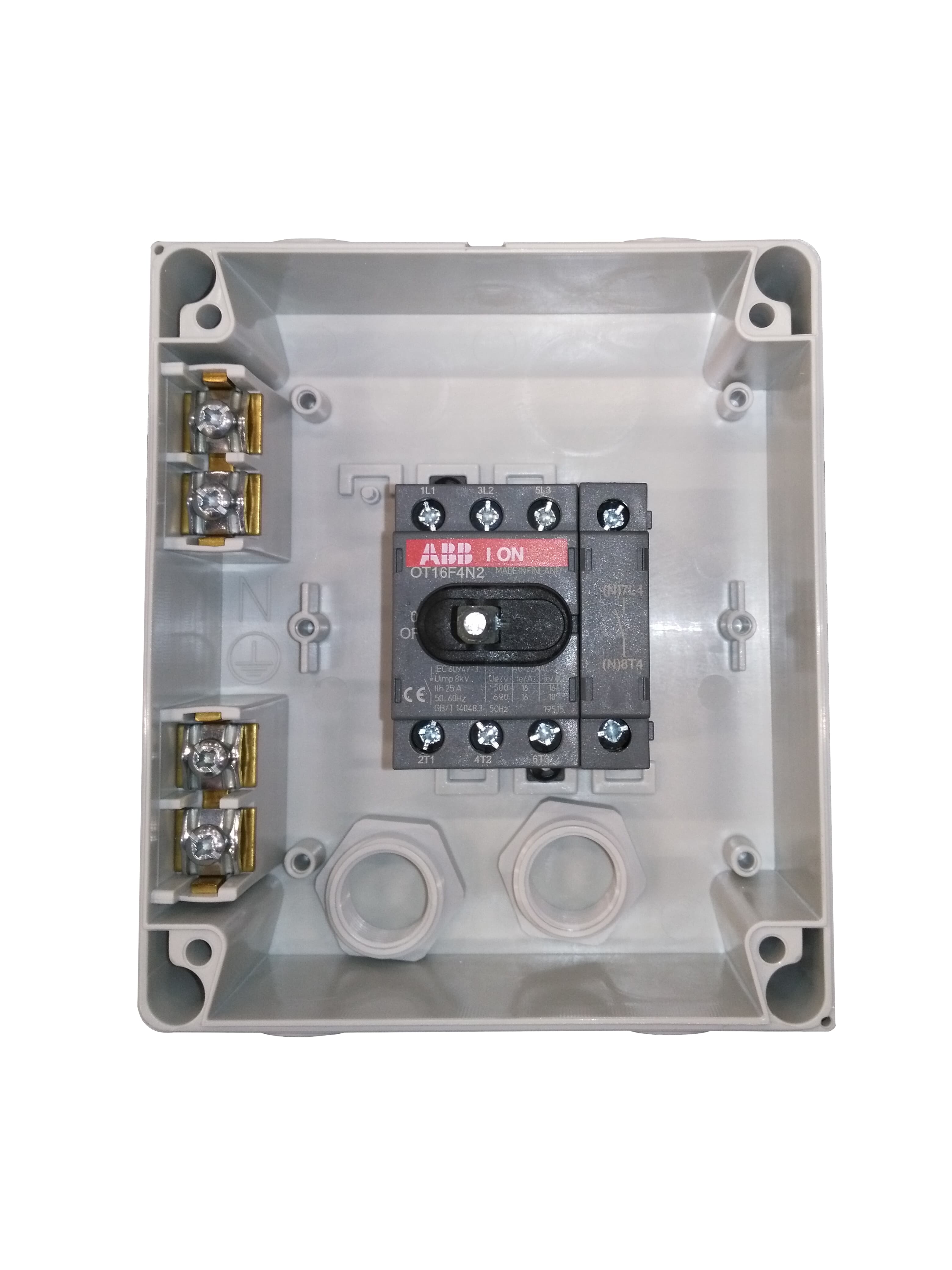

Encl. Switch Disconnector, 4-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 5 393.51 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 5 953.88 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 456.66 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 630.48 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 127.48 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 319.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 360.07 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 337.59 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 459.89 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 273.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c9307bac-0421-42e8-a6b9-1b4001f4d230 Finland |
| Simplified SCIP | c58b06d5-eb6f-4b64-864d-eed9963f3b5e Spain, 58ec2a42-511b-429f-9748-67cab77d761f Belgium, 2aeb4d85-703f-420d-b2f5-32a20873109f Portugal, 8dca7584-16d8-4551-b661-6a3b103af243 Hungary, d892b417-6d41-416e-920d-c1586e8f0a47 France, 9f4474e5-fd8f-4279-8c7f-c06179a7d855 Greece, b3742302-b67d-4e5d-9761-18a03586d268 Bulgaria, 535a1f98-592d-4f74-9f49-736f2425f88a Sweden, 19d781b6-1c9a-409f-ada7-abf48fddb8a6 Poland, 2dc46181-b957-418a-9be9-45c837d87bd3 Germany, 6824e726-70eb-4ddd-9a4e-21012ba2b3b1 Hungary, fc163372-a0cf-4322-9c5a-1e34118637c3 Estonia, 64a755b4-2329-4d08-8ac3-a2f17a9f1fe5 Denmark, efe06bcf-624d-449f-9adf-cd2349554ff8 Germany, ccd3735b-f83b-4c0a-8a71-1211de27dd19 Czechia, 26d37670-1d34-40ea-af67-2962d69c36ea Croatia, 89152444-f03f-4b36-99c7-7b83e5239471 Poland, 4cdb494a-4b3c-4f9c-8643-cd31d73d8528 Italy, f75807ff-664d-45dc-9525-6c3458a273fe Belgium, 60e3bcba-1c36-44e7-9762-30839f6a6d18 Poland, 932dae16-5d3f-48ee-8325-37e05e7575b1 Norway, bc2d0416-7cc1-4042-a831-f4826efde2e6 Netherlands, 525ddbcb-65a3-4481-b7cb-2dad5c6c4f77 France, bd6ce6ff-4018-484d-9c93-316a29449d3d Germany, 50730636-7914-4c39-8eee-e0532a05b0ab Sweden, 0cbbd6ae-ffd8-4c1a-89ad-79a4319c8a51 Germany, 9e628d05-d249-4ad3-8e55-e332f9e5fb9a Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP16GB4M |
| Country of Origin | Finland |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 1.4 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 1.6 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W, Total 0.9 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 16 A, (500 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 10 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
