Артикул: 1SCA022401R3350
· Производитель: ABB
· EAN: 6417019131184
1SCA022401R3350
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
3 326.23 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
4 196.57 ₽
срок ≈1 мес. (38 дн.)

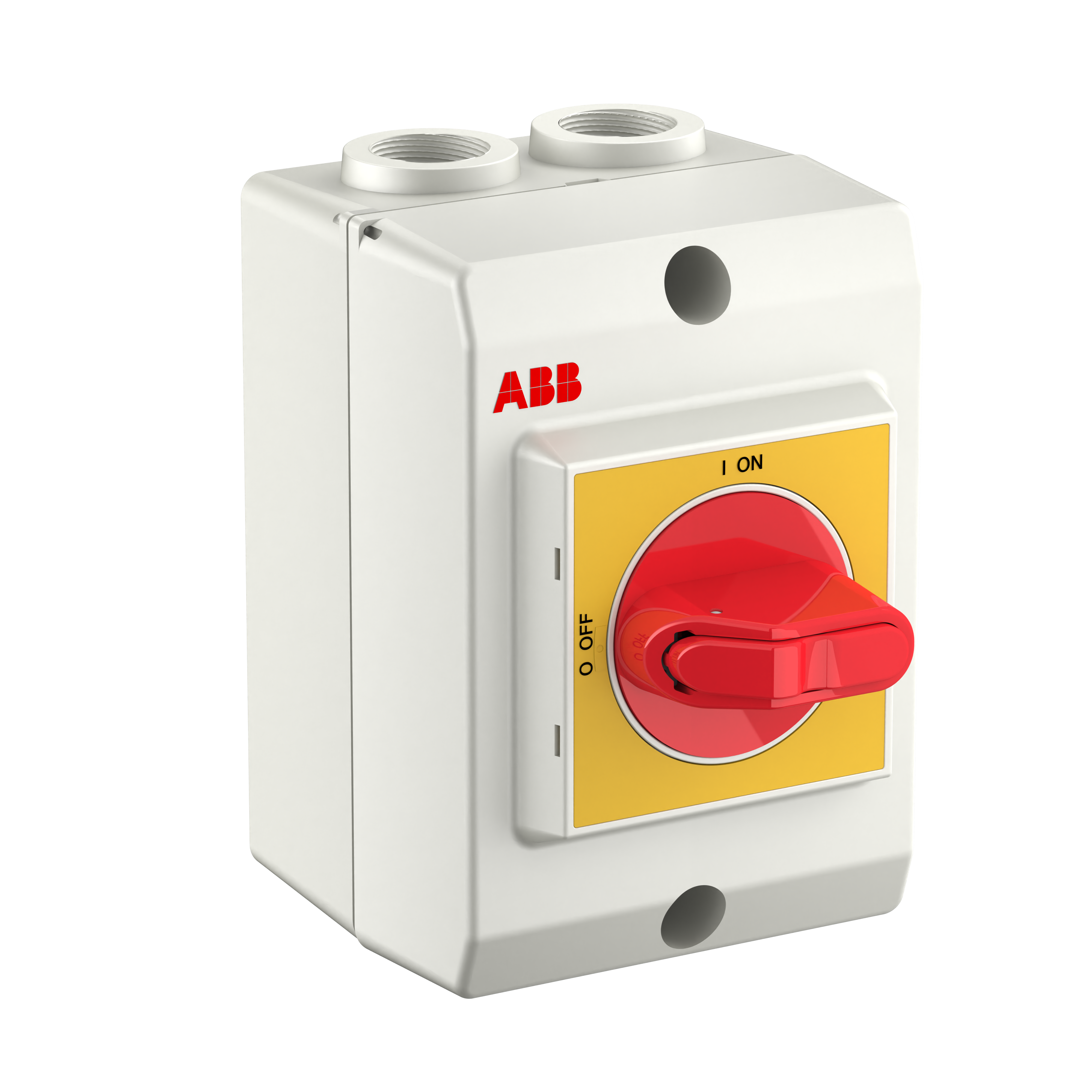

Encl. Switch Disconnector, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. Two membrane glands and two pull stoppers included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 3 326.23 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 196.57 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 632.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 638.45 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 5 120.36 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 5 242.48 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 5 314.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 5 654.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 5 866.27 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 554.35 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 744.26 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 10 093.69 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 142.39 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Lithuania |
| countryOfAssembly | Lithuania |
| countryOfLastProcessing | Lithuania |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 74f199bc-18a7-405b-ab1a-eeb7ba3e17ef Finland |
| Simplified SCIP | 5437cf7b-dc1c-40df-a08e-b08466dc7665 Hungary, 01589b0b-5448-40a2-9827-a0cd42ae36a7 France, 6086d1b3-c293-4bd4-b2ee-101cb85a175a Hungary, d8f0c36b-c0bb-403f-a1db-fe2f1f49c6ed Bulgaria, 26fd5e61-5a72-4e10-877c-0c41ac8e7da5 Poland, 8d88fcc1-ce35-4171-9680-4bcac776d4cf Portugal, 5cdaf2ad-7022-4f15-9c2c-9a00f56d7e6a Sweden, 1f935853-d306-4384-aa5f-0d0bca6c527a Estonia, c2ec4b28-edd4-46d5-b4cc-277f513030d9 Poland, de1584ab-8cdb-4b56-b26f-df1b57e9dce7 Netherlands, bd6041cc-aa05-44cb-b13a-165fc68cbe6b Norway, b771016c-3904-4181-9eec-a8750235b87b France, 71ddd6da-7851-47e2-b085-8354b8a6fa0d Germany, 859de999-2c31-478b-b99d-9c92cc754d92 Sweden, 07f7856d-0dbe-4230-85e6-6583fb87b892 Germany, e85a8149-a544-48c7-8457-ad80aa748a81 Germany, 2f79499c-5c6f-4a4c-b7e8-3a3a594ab7c5 Denmark, 7a4a78b1-cb82-4142-9df7-dc686eeae4df Germany, 681f1da2-9a08-4ffd-b3b8-cdac7df2ca98 Croatia, e6d5e74f-a5b7-4acf-927c-325a1af169cd Czechia, 9a7d034d-001f-4b5b-8e36-fb32f06e6993 Spain, db27e559-16ff-41ea-8d11-6fb4cb3a8f7f Belgium, dcdec72b-874e-4a80-ad1b-b8fb923d3bf8 Poland, 68c8d955-c963-4332-bd83-2add48afa373 Italy, 8215a694-09cd-4ee4-a0a1-9e393fe22631 Belgium, fa334796-7c2f-4b56-b411-6ddaeadb2806 Greece, 158562a0-4841-4084-a50e-6cb5f87bb142 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP16GBA3M |
| Country of Origin | Lithuania |
| Product Net Width | 85 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.34 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 106 mm |
| Package Level 1 Depth / Length | 158 mm |
| Package Level 1 Height | 97 mm |
| Package Level 1 Gross Weight | 0.4 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 0.75 ... 2.5 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W, Total 0.9 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 16 A, (500 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A, (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 10 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
