Артикул: 1SCA022389R8400
· Производитель: ABB
· EAN: 6417019127514
1SCA022389R8400
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
6 636.36 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
6 011.76 ₽
срок ≈1 мес. (38 дн.)

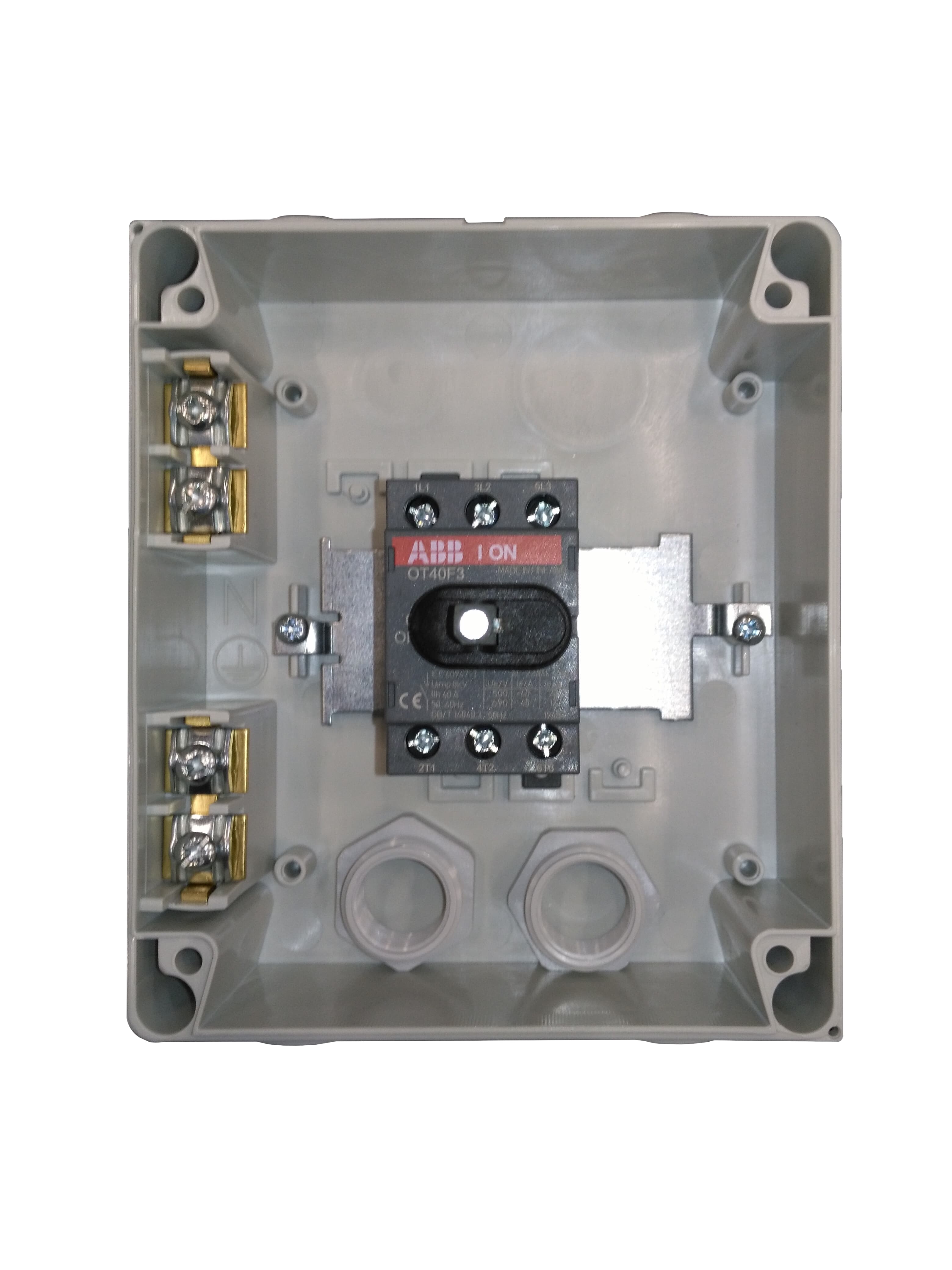

Encl. Switch Disconnector, 3-p. 415V AC23 23A, 11kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 6 011.76 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 636.36 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 643.44 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 706.78 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 179.88 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 507.48 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 029.73 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в России | 9 085.13 ₽ | 5 дн. | под заказ | — | Заказать |
| Склад в Европе | 10 230.89 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 292.50 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 293.84 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Lithuania |
| countryOfAssembly | Lithuania |
| countryOfLastProcessing | Lithuania |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 265c9e65-9d43-49e1-9489-0029cba7470a Finland |
| Simplified SCIP | a3f20638-3ad4-4f08-8b82-26dc13a8bef1 Norway, e2439e42-28cc-47f0-a1a9-95e387bf4a50 Poland, 87f92d7c-9de5-4d76-bd4f-c399b5791f29 Netherlands, bf1d191c-ce43-42d2-a77e-9283563ba6b5 France, d3899fc3-89b9-4326-b587-47400bec6de4 Germany, 1c1c55f8-1646-444e-9a32-812cb330d1c7 Sweden, 43d9e65d-5483-4345-b5e9-7f9ecc9e7030 Germany, 4da1fdf1-f382-4993-914d-ab300e3a9ae6 Germany, a3228f97-9395-45be-9dde-117ca4118a00 Denmark, 3d042343-d9cc-454e-840f-9067bee8ad92 Germany, 5a55daf8-0f79-453a-991c-8a765c6a15f4 Croatia, 41b306f5-a970-435f-bcf8-0e41213feec1 Czechia, 8da454ad-b7a6-4444-a970-e745491e7970 Spain, 5a84ae9e-2e4a-42d9-961b-643dcd754abb Belgium, 32f24e7d-589b-4d08-b8ea-50e726634ce6 Poland, 91ca87ef-6153-43f3-abf0-d13a44fb6824 Italy, cc8bf82d-b5b0-460c-bf94-5356bdc9bc34 Belgium, 20f6bfc4-9716-480e-93ed-85f4e5271e81 Greece, cbcc1016-1d07-42b1-b9bb-5109a0544ced Bulgaria, efc057f0-cac8-4d0a-8a3f-d69c3ea5c9a1 Sweden, 1dfa1027-a966-4074-b8b4-ca14c0ee5591 Poland, 2a4f4388-d2d9-4c29-80a5-09174b27f01d Portugal, a8fa9228-29c9-4135-8742-00979e1988db Hungary, 9d3cb22f-0021-4b97-8c01-f86d593cc97c France, 586907a3-94de-4cb4-a920-7e0520899497 Estonia, eefdb47a-c12d-45eb-ad1a-a53fc2ec1aa3 Hungary, 26a07ecb-1c2c-4cea-bb40-637724c50c0b Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP25GB3M |
| Country of Origin | Lithuania |
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.5 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.6 kg |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 1.5 ... 10 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W, Total 4.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 0.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A, (500 V) 23 A, (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW, (500 V) 11 kW, (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA, for 0.2 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
