Артикул: 1SBV012192R1211
· Производитель: ABB
· EAN: 3471522611277
1SBV012192R1211
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
2 739.51 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
2 871.33 ₽
срок ≈1 мес. (38 дн.)

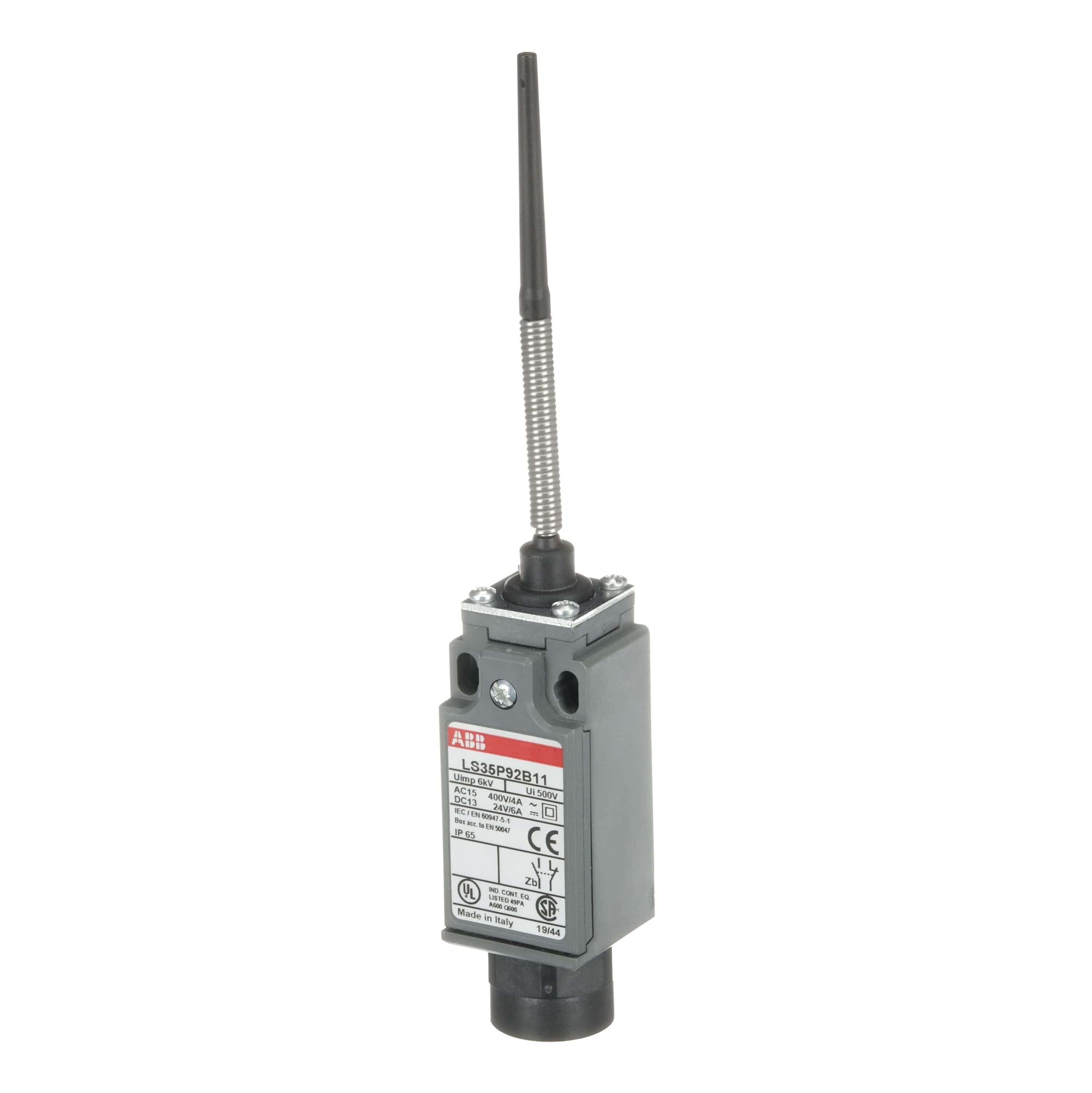

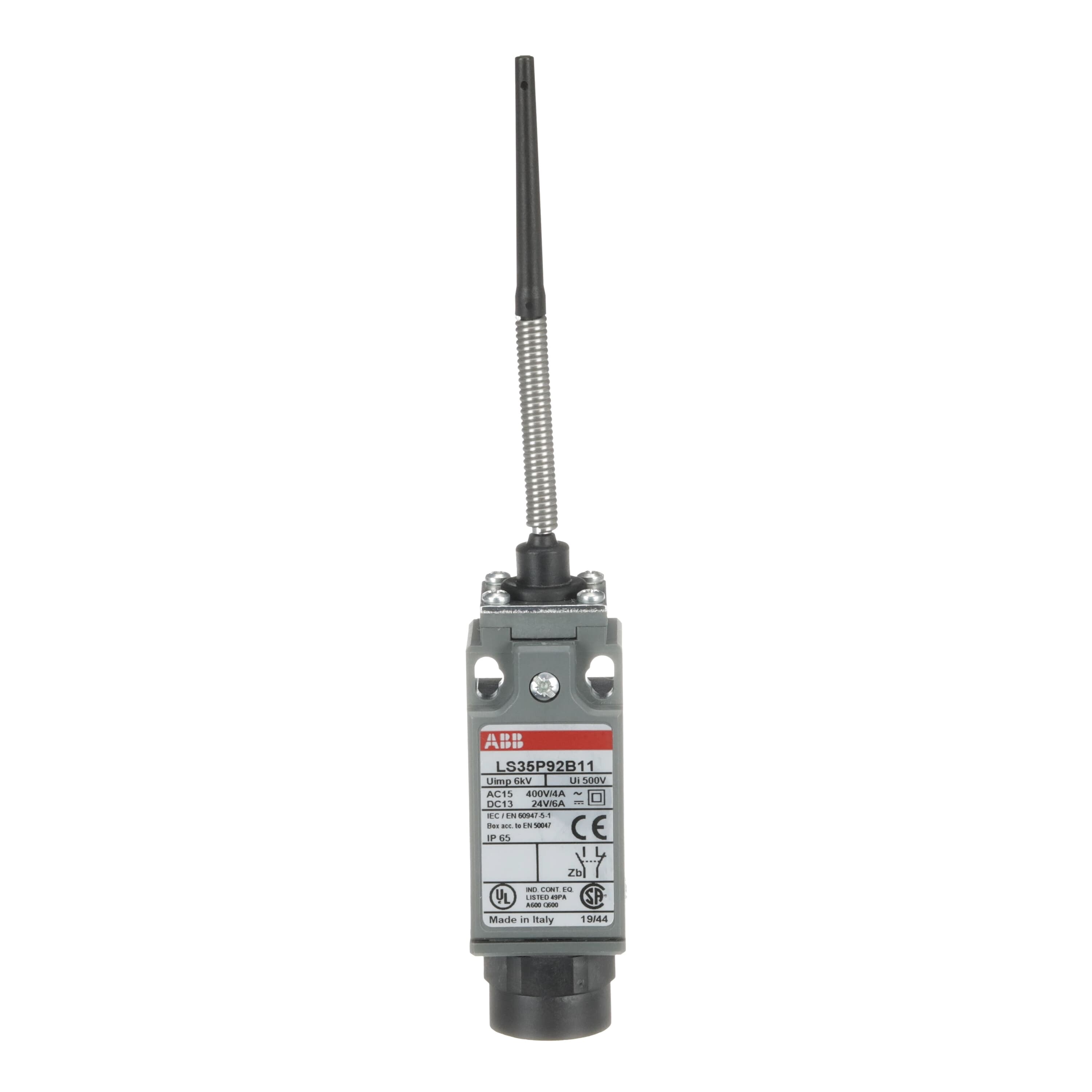

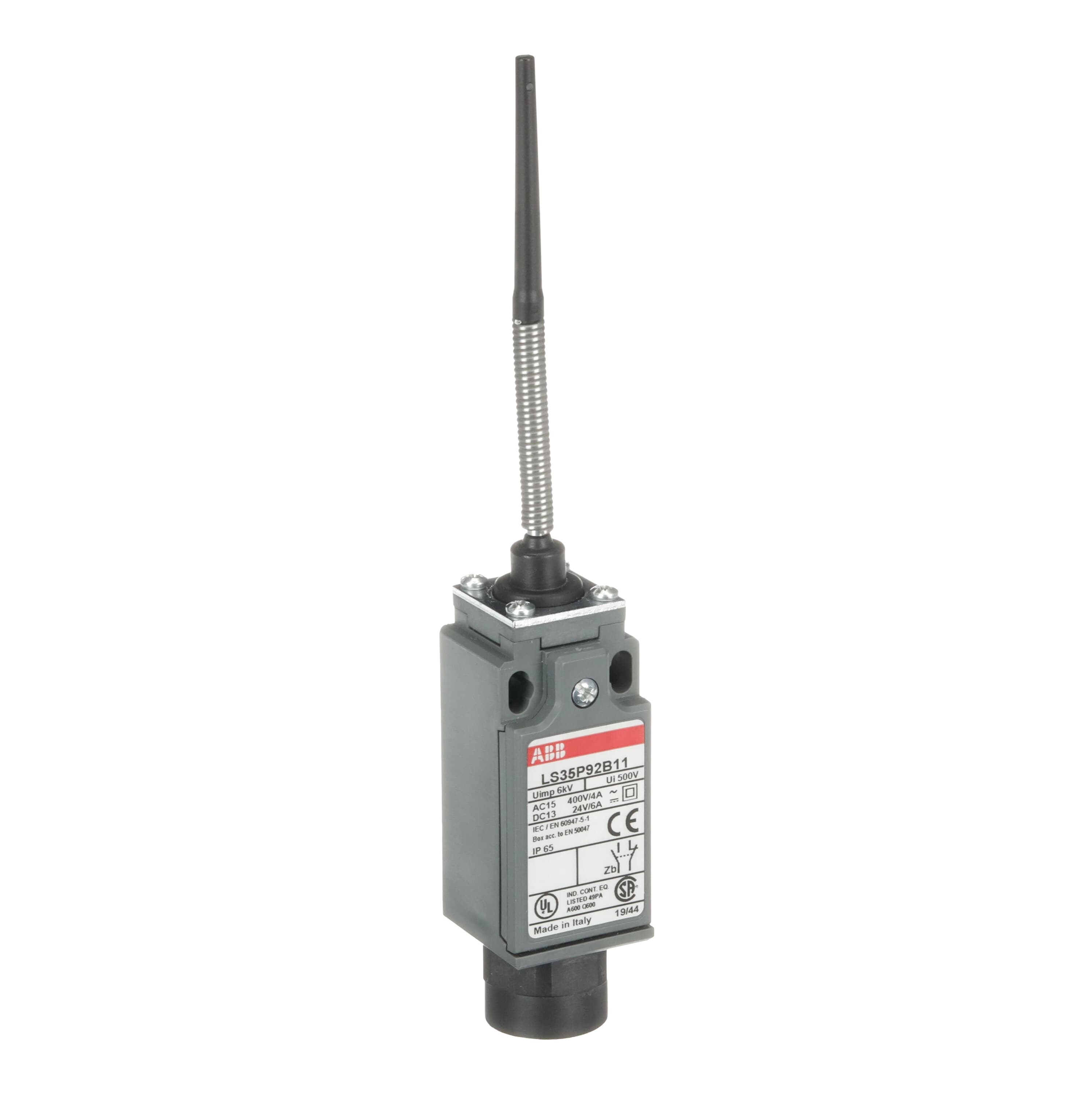

LS35P92B11 is a 30 mm wide, standard Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 1/2'' NPT cable entry on the bottom, multidirectional stainless steel spring actuator with insulated tip and 1 N.O + 1 N.C snap action (Zb type) contacts
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 2 739.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 871.33 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 916.94 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 093.27 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 169.65 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 220.00 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 414.65 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 218.85 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 468.96 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 4 657.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 30 mm |
| Product Net Height | 168 mm |
| Product Net Depth / Length | 30 mm |
| Product Net Weight | 0.071 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Contacts |
| Actuation Speed | acc. to IEC 60947-5-1 Max. 1 m/s |
| Actuation Torque | acc. to IEC 60947-5-1 Min. 0.12 N·m |
| Angular Head Adjustment | adjustable head every 90° |
| B10d Value | Operations 30 Millions |
| Climatic Withstand | according to IEC 68-2-3 and Salty Mist according to IEC 68-2-11 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Connecting Capacity | Bar AWG 20 ... AWG 14 mm², Bar 0.5 ... 2.5 mm² |
| Consistency (Measured over 1 Million Operations) | 0.1 mm |
| Contact Element Form | Zb |
| Connecting Terminals (delivered in open position) | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Electrical Shock Protection acc. to IEC 536 | Double insulation - Class II |
| Flammability According to UL94 | V-0 |
| Housing Material | Plastic |
| Maximum Electrical Switching Frequency | 3600 cycles per hour, (AC-15) 3600 cycles per hour, (DC-13) 3600 cycles per hour |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | >5 million |
| Mounting Type | 30 mm (EN 50047) |
| Mounting by Screws (not supplied) | 2 x M4 Screws |
| Movement to be Detected | Multidirectional Translation Movement |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number and Type of Bottom Cable Glands | 1/2 NPT plastic adaptor |
| Pilot Duty UL/CSA | A600, Q600 |
| Positive Opening Operation of NC Contact(s) | No |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A, (400 V) NC 4, (24 V) 10 A, (130 V) 5.5 A, (240 V) 3 A |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V, acc. to UL/CSA 600 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A, (110 V) 0.6 A, (125 V) 0.55 A, (250 V) 0.4 A |
| Resistance Between Contacts | 25 ms |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Terminal Marking | according to EN 50013 |
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -30 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s² |
| Resistance to Vibrations | No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 35 mm |
| Package Level 1 Depth / Length | 32 mm |
| Package Level 1 Height | 202 mm |
| Package Level 1 Gross Weight | 0.086 kg |
| Object Classification Code | B |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39122213 |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch |
| extended_product_type | LS35P92B11 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Sensors > Limit Switches |
