Артикул: 1SBV010791R1211
· Производитель: ABB
· EAN: 3471522003294
1SBV010791R1211
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
3 644.67 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
3 584.20 ₽
срок ≈4 мес. (122 дн.)

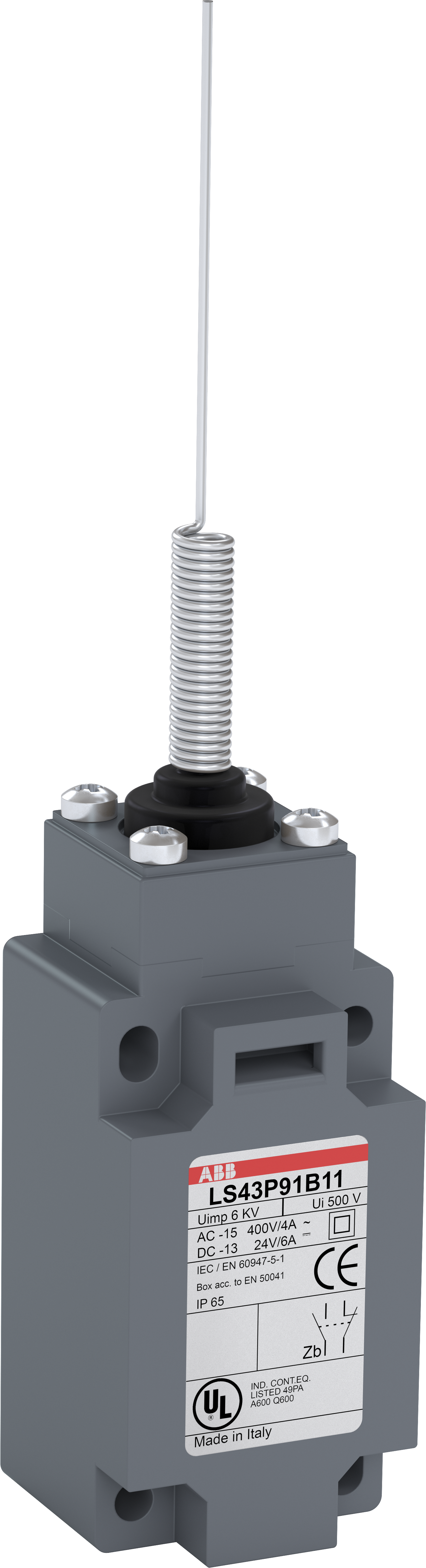

LS43P91B11 is a 40 mm wide, standard reinforced Limit Switch made of fiber-glass reinforced UL-V0 material, with 4 mounting holes at the top and bottom, 1 ISO M20x1.5 cable entry on the bottom, multidirectional stainless steel spring actuator with rigid end and 1 N.O + 1 N.C snap action (Zb type) contacts
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 3 584.20 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 616.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 644.67 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 917.86 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 956.58 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 992.72 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 324.91 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 5 612.79 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 5 668.42 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 6 195.93 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 41 mm |
| Product Net Height | 195 mm |
| Product Net Depth / Length | 41 mm |
| Product Net Weight | 0.129 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| B10d Value | Operations 50 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour, (DC-13) 3600 cycles per hour |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | >5 million |
| Mounting Type | 40 mm (EN 50041) |
| Number and Type of Bottom Cable Glands | 1 x M20x1.5 - Bottom |
| Pilot Duty UL/CSA | A600, Q600 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A, (400 V) NC 4, (24 V) 10 A, (130 V) 5.5 A, (240 V) 3 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V, acc. to UL/CSA 600 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A, (110 V) 0.6 A, (125 V) 0.55 A, (250 V) 0.4 A |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -30 ... +80 °C |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 200 mm |
| Package Level 1 Gross Weight | 0.156 kg |
| Object Classification Code | B |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
| extended_product_type | LS43P91B11 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Sensors > Limit Switches |
