Артикул: 1SBV002105R1111 · Производитель: ABB · EAN: 3471522009685

1SBV002105R1111

Name: IPSY1A11
Brand: ABB
SKU: 1SBV002105R1111
Availability: PreOrder

Под заказ

Наличие в РФ

нет в наличии

Склад в Китае

7 908.00 ₽

срок ≈2 мес. (73 дн.)

Склад в Европе

10 226.31 ₽

срок ≈1 мес. (38 дн.)

Запросить цену / заказать

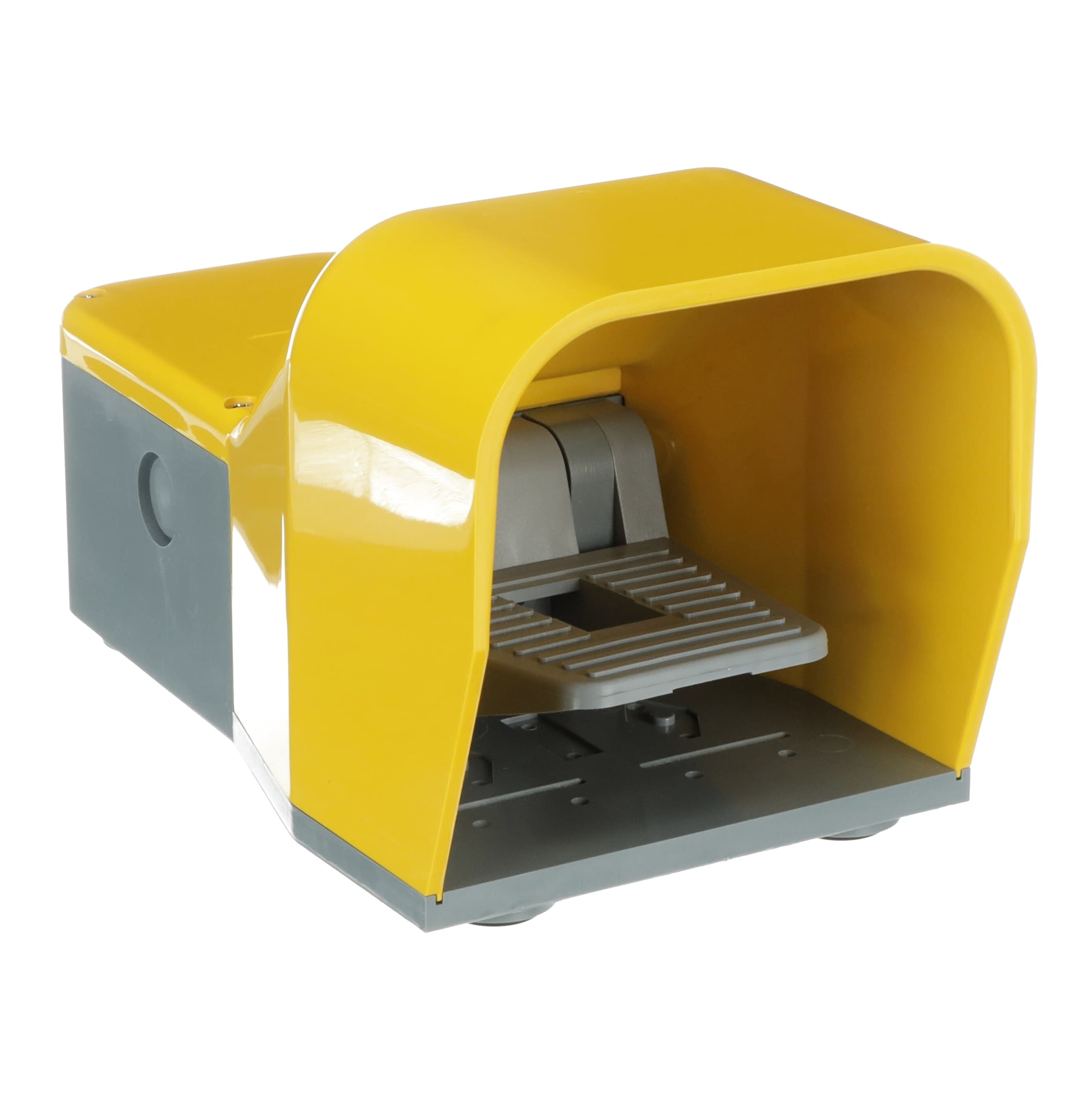

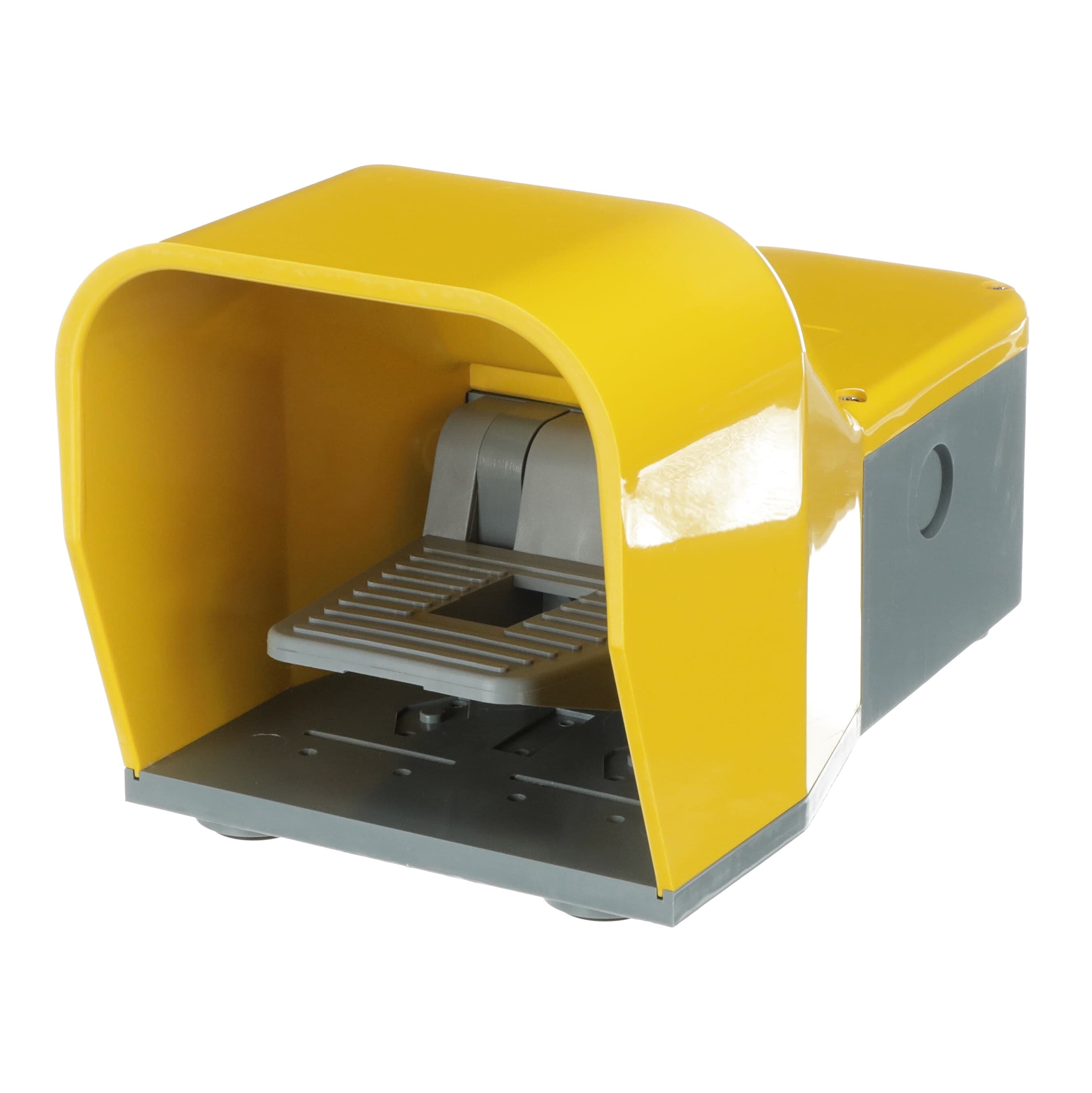

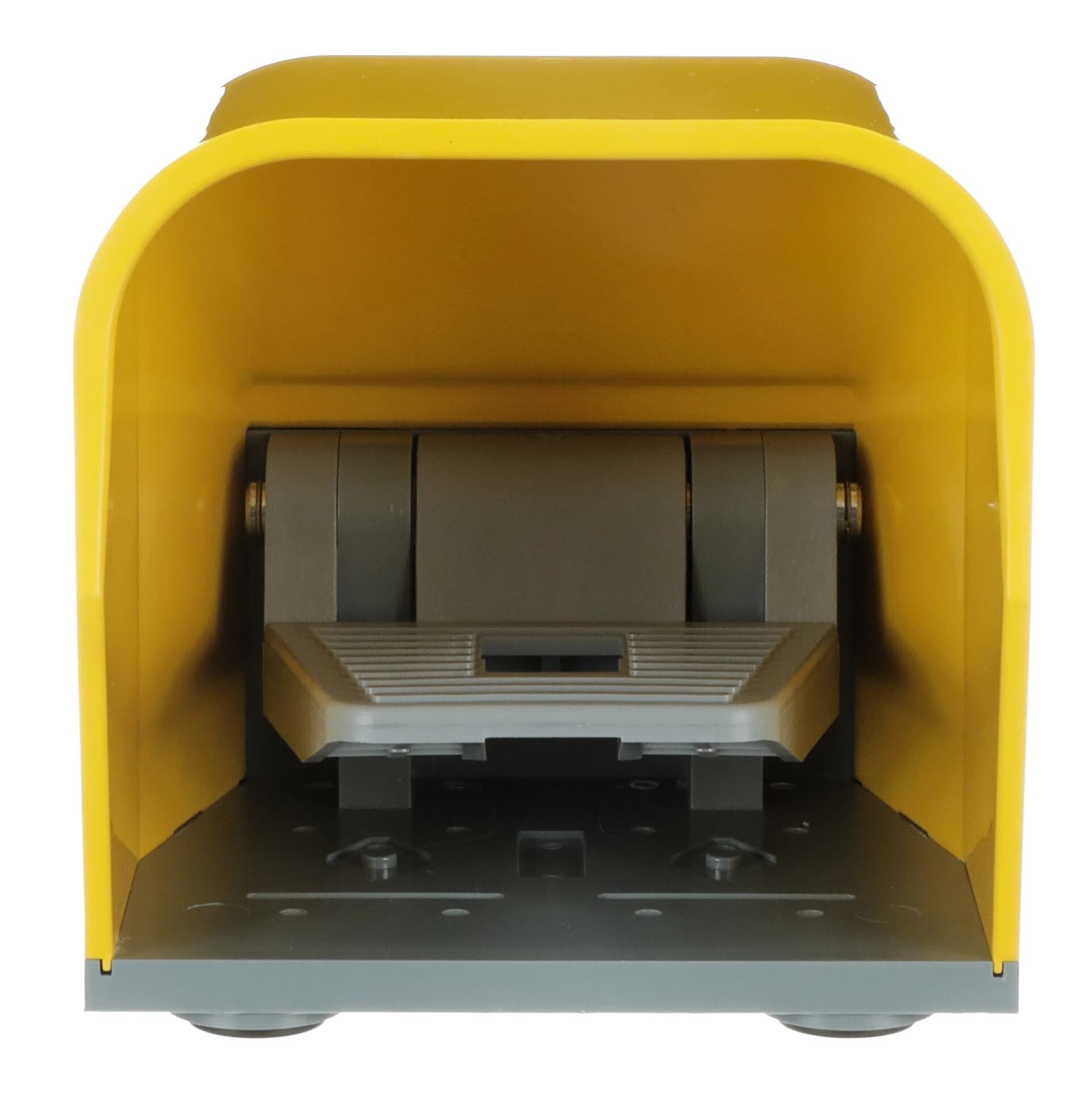

IPSY1A11 is a Covered Foot Switch with grey base and yellow ABS cover. The pedal movement is free and the switch is equipped with 1 Pg16 cable entry and 1 N.O + 1 N.C snap action (Za type) contacts.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Китае	7 908.00 ₽	≈2 мес. (73 дн.)	под заказ	—	Заказать
Склад в Китае	10 142.01 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	10 226.31 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Китае	11 288.78 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	11 496.30 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Европе	12 178.32 ₽	≈2 мес. (73 дн.)	под заказ	—	Заказать
Склад в Китае	12 690.72 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	13 443.60 ₽	≈2 мес. (73 дн.)	под заказ	—	Заказать
Склад в Европе	14 793.79 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Европе	15 618.69 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	16 027.15 ₽	уточняется	под заказ	—	Заказать
Склад в Китае	16 330.81 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	17 241.41 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать

Характеристики

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Product Net Width	140 mm
Product Net Height	138 mm
Product Net Depth / Length	280 mm
Product Net Weight	1.2 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)	Snap Action Contacts
Actuation Torque	acc. to IEC 60947-5-1 Min. 0.25 N·m
Climatic Withstand	according to IEC 68-2-3 and Salty Mist according to IEC 68-2-11
Conventional Free-air Thermal Current (Ith)	acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Connecting Capacity	Bar AWG 20 ... AWG 14 mm², Bar 0.5 ... 2.5 mm²
Contact Element Form	Za
Connecting Terminals (delivered in open position)	M3.5 (+,-) screw Phillips head n░1 with captive cable gland
Degree of Protection	acc. to IEC 60529 IP65
Electrical Shock Protection acc. to IEC 536	Double insulation - Class II
Flammability According to UL94	V-0
Mechanical Durability	30 million
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	1
Number and Type of Bottom Cable Glands	Pg 16 Cable Gland
Pilot Duty UL/CSA	A600, Q600
Positive Opening Operation of NC Contact(s)	Yes
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Operational Current AC-15 (Ie)	(400 V) NC 4, (24 V) 10 A, (130 V) 5.5 A
Rated Frequency (f)	Supply Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)	(24 V) 6 A, (110 V) 0.6 / 66 A, (125 V) 0.55 A, (250 V) 0.4 A
Resistance Between Contacts	25 ms
Short-Circuit Protective Devices	gG Type Fuses 10 A
Terminal Marking	according to EN 50013
Ambient Air Temperature	Operation -10 ... +70 °C, Storage -25 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27	Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s²
Resistance to Vibrations	No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units	box 1 piece
Package Level 1 Width	160 mm
Package Level 1 Depth / Length	300 mm
Package Level 1 Height	160 mm
Package Level 1 Gross Weight	1.37 kg
Object Classification Code	B
ETIM 6	EC001258 - Foot switch
ETIM 7	EC001258 - Foot switch
ETIM 8	EC001258 - Foot switch
eClass	V11.0 : 27371218
UNSPSC	39122222
IDEA Granular Category Code (IGCC)	5275 >> Foot switch
extended_product_type	IPSY1A11
category_paths	Products > Low Voltage Products and Systems > Control Products > Sensors > Limit Switches
