Артикул: 1SBN020114R1000
· Производитель: ABB
· EAN: 3471523130654
1SBN020114R1000
В наличии на нашем складе
Наличие в РФ
4 534.00 ₽
в наличии на складе · 6 шт.
Склад в Китае
6 682.73 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
5 677.18 ₽
срок ≈2 мес. (73 дн.)

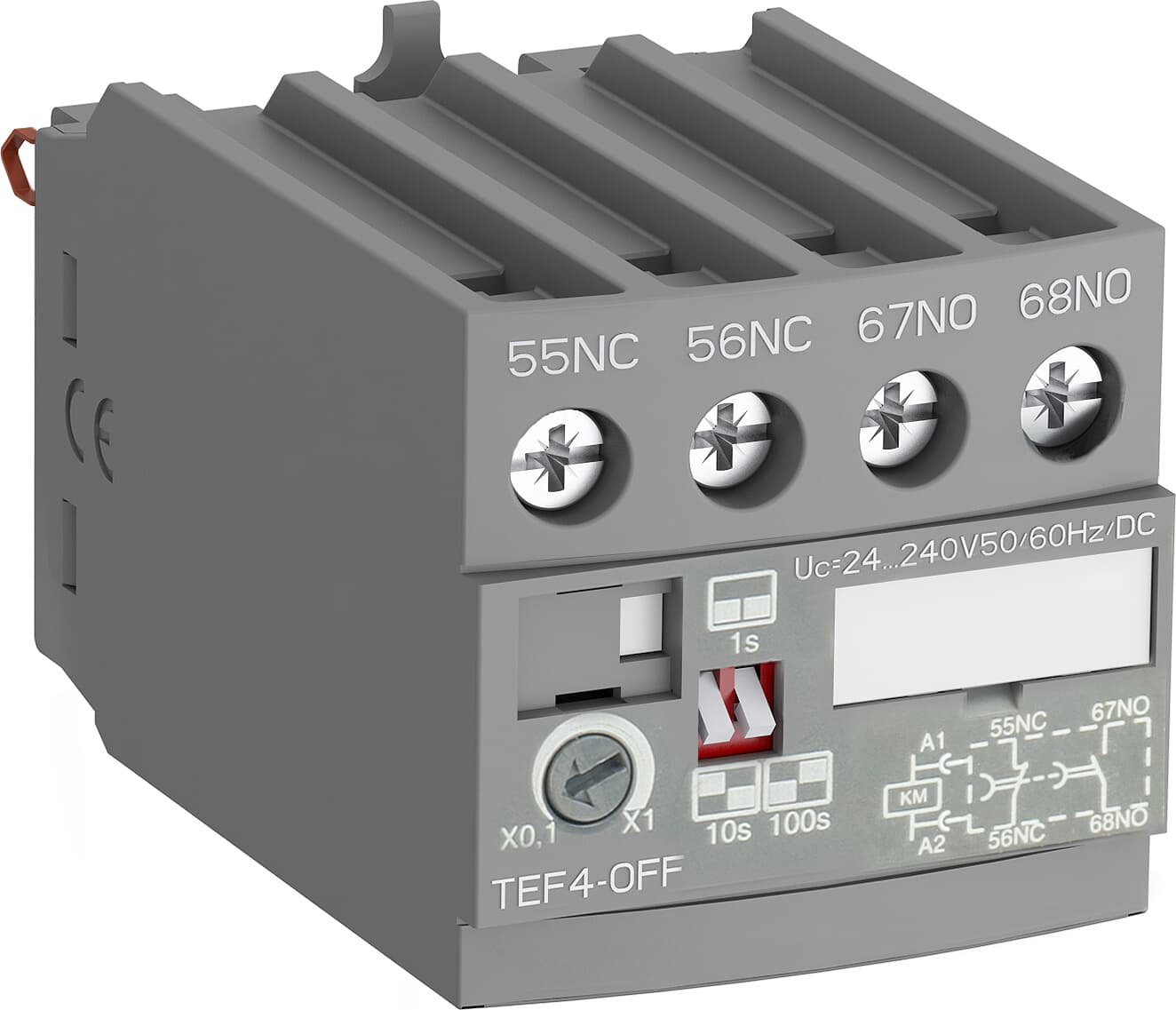

TEF4-OFF is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24...240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-OFF is activated by opening the device on which the timer is mounted. The OFF-delay version operates without additional control supply.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 4 534.00 ₽ | В наличии | 6 шт. | — | Заказать |
| Склад в Европе | 5 677.18 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 053.77 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 512.20 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 567.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 682.73 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 703.13 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 188.80 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 250.32 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в России | 8 099.09 ₽ | 5 дн. | 5 шт. | — | Заказать |
| Склад в Европе | 9 131.68 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 10 322.82 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 395.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Product Net Width | 43 mm |
| Product Net Depth / Length | 67.7 mm |
| Product Net Height | 41.6 mm |
| Product Net Weight | 0.065 kg |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC, Auxiliary Circuit 24 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 3 A, (220 / 240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 8 A, for 1 s 8 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 400 V, acc. to UL/CSA 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Timer Relay Type | OFF-Delay |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NFC22E, NFC31E, NFC40E |
| Product Name | Electronic Timer |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C, Operation -25 ... +70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b815070a-c1ae-446c-8830-f5e7343c90e3 China |
| Simplified SCIP | 11c817ed-31a4-4977-b0dd-1162db7cb10c Spain, 15c76503-c6f1-4ee1-832b-ceb0ad9fe9e9 Portugal, 1fa69680-2f31-4794-aab9-23b4087c8076 Denmark, 20e8813b-5482-4fea-93d4-5230bc39c1d8 Norway, 225c7b71-f643-4f44-8c09-30e88cd17843 Croatia, 318e3444-c94e-4b83-85ee-e2846fc4ff31 Sweden, 3e4ae181-b368-4129-af43-022248d49d51 Germany, 3e51002a-2896-49cf-acdf-fde67c090e58 Germany, 47e0302c-aa5f-4217-bf34-6248276df765 Germany, 5998dffb-48c5-4be3-ae8b-3dbc5d4fe2c2 Netherlands, 6ab93f4c-b284-4c93-9f1f-2255f63b2479 France, 79d086db-9aa6-45a4-bd52-3beca3219ba4 Estonia, 7ac4b82f-a5db-46ff-983b-732e048991c4 Germany, 7b3f7b87-74ed-477e-93b7-dba01cbaa9c0 Belgium, 86506ecb-3cbf-4f40-bf03-b7d919ed9e67 Bulgaria, 96c85ef8-bbb9-4a72-ad6c-3aefa287513e Finland, a33a4d46-f46a-4239-bd20-fa02f2e1e025 Poland, a3524abc-bdf2-4f1a-b069-186f94ab488c France, b979fd5c-82a3-478d-a2d9-9b4bf20f27cc Hungary, daf0e123-4d2a-498d-83e8-c90cff59205c Poland, ec0e3194-0957-457f-bd74-bf82d2549c21 Hungary, ed05cee5-4eea-4878-8cac-6aa8cdf480c2 Greece, ee268d0c-872c-4665-a6bd-ef18c2878822 Germany, f565d392-fc63-4a59-b5ae-d29b8611b3ea Czechia, f5cce2cd-6b01-40e7-8192-e53238bcc5d7 Belgium, f657ebd2-9b21-4be2-bdab-56ed69677aee Sweden, fb8f014a-de21-420e-8516-01cd94bb251e Poland |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 82 mm |
| Package Level 1 Depth / Length | 56 mm |
| Package Level 1 Height | 51 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Object Classification Code | K |
| ETIM 7 | EC002060 - Timer block |
| ETIM 8 | EC002060 - Timer block |
| ETIM 9 | EC002060 - Timer block |
| eClass | V11.0 : 27371308 |
| UNSPSC | 39121523 |
| IDEA Granular Category Code (IGCC) | 4746 >> Timer controls |
| E-Number (Finland) | 3706000 |
| E-Number (Sweden) | 3210257 |
| extended_product_type | TEF4-OFF |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
